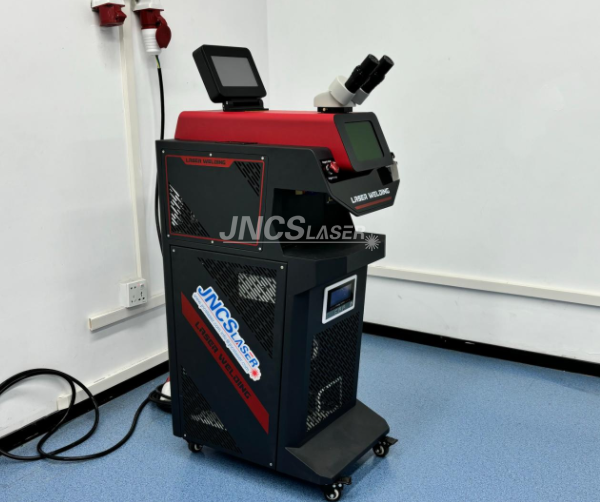

New Design 200W Jewelry Spot Laser Welding Machine
JEWELRY SPOT LASER WELDING MACHINE
Energy, pulse width, frequency and focus can be adjusted within a wide range to achieve different welding effects.
Main Feature:
● Ceramic reflector used in the laser pump chamber is imported, which is corrosion resistant, high temperature resistant, high electrical/optical conversion.
● World-leading automatic light shielding system is employed to remove harmful lighting on eyes during operation.
● 24-hour continuous operation, with stable operating performance,
● Free of maintenance within 10000 hours.
● Personalized design in compliance with ergonomics principles.
Machine Configurations:

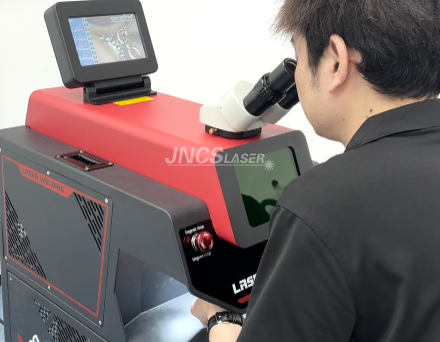

Parallel light path HD microscope, adjustable binocular pupil distance, steerable observation

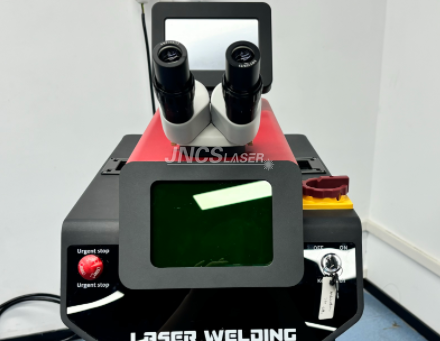

key switch , emergency stop

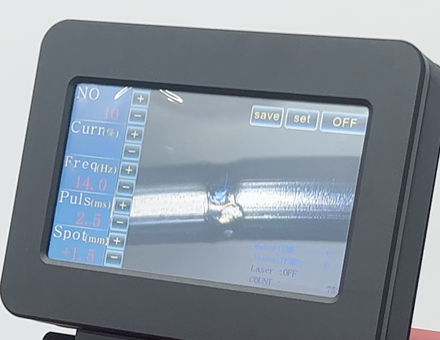

Support multi language We can change Current, spot processing parameter freely according to welding position

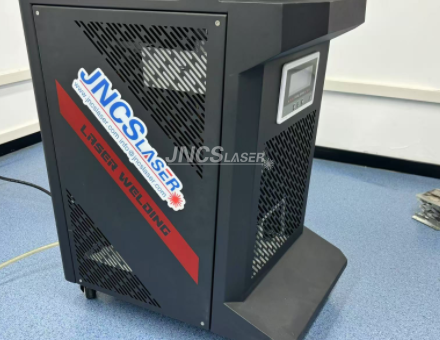

High configuration digital display water chiller, Good cooling effect, good heat dissipation
Power cable, gas, foot switch
hot sale 200w, it is used for jewelry welding, repairing
Machine Parameters:

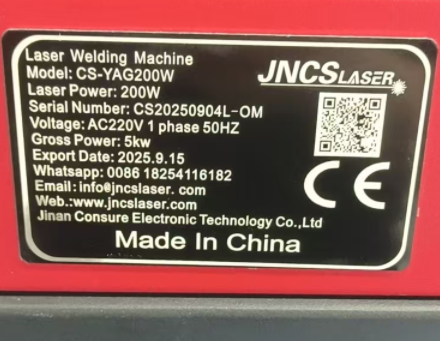

Model | CS-200W |
Rated Laser Power | 200W |
Laser Source | Nd3+:YAG |
Wavelength | 1064nm |
Pulse frequency | 1~50Hz adjustable |
Pulse width | 1.5~20ms adjustable |
Single pulse Energy | 60 J |
Cover Gas Channel | 1 line quick connection |
Focused Beam Diameter | 0.1~3mm |
Expanding Ratio | 3 |
Focal Length | 100mm |
Power Supply | Single phase AC 220V±10% |
Cooling | Water cooling |
refrigerating capacity | 2700W |
Power consumption | 6KW |
Running Environment | Temperature 10℃~32℃, humidity < 85%. |
Machine Package size and Weight | 43cmX76cmX122cm 105KG |
Machine Size and weight | 36X55X117cm 82KG |
Video Tutorials & Instructional Video:
Sample Display:
laser jewelry spot welder/gold laser welding machine is used in aviation, aerospace, sports products, jewelry, golf head, medical instrument, titanium alloy denture, instrument, electronics, machinery, automobile, etc,especially for the perforating of gold and silver jewelry, spot welding, repairing, inlay and welding of claw.
