High Precision Cantilever QCW300W Fiber Laser Mold Repair Welding Machine Injection Mold repairing
Laser Welding Machine for Mould Repairing

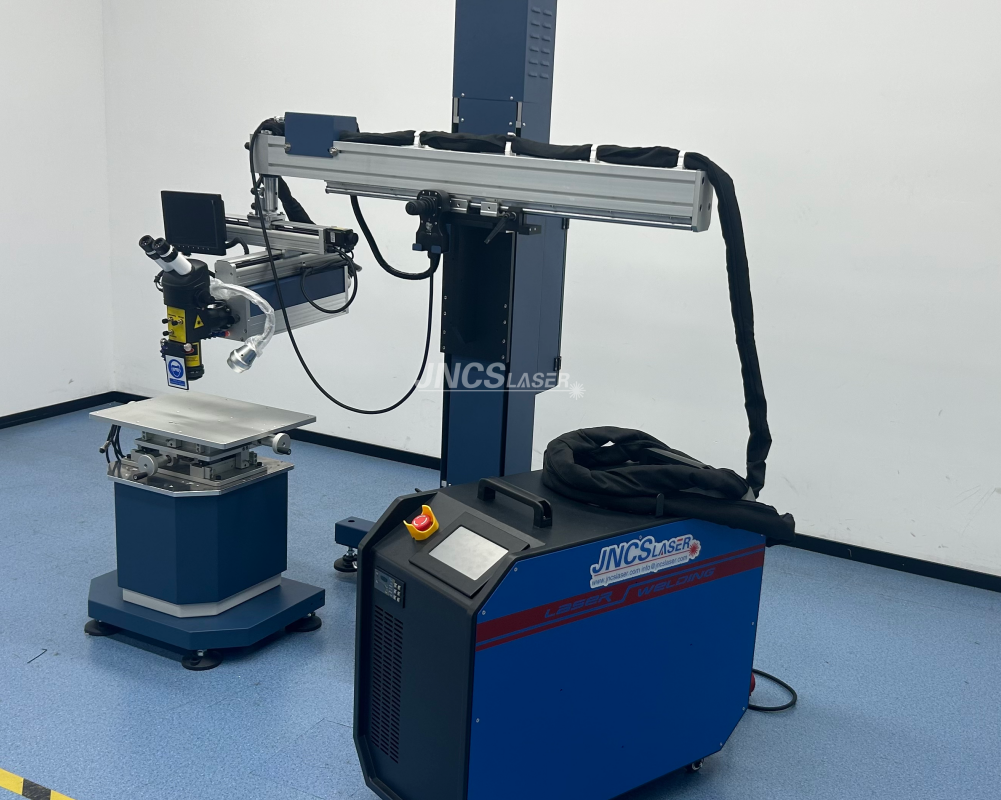

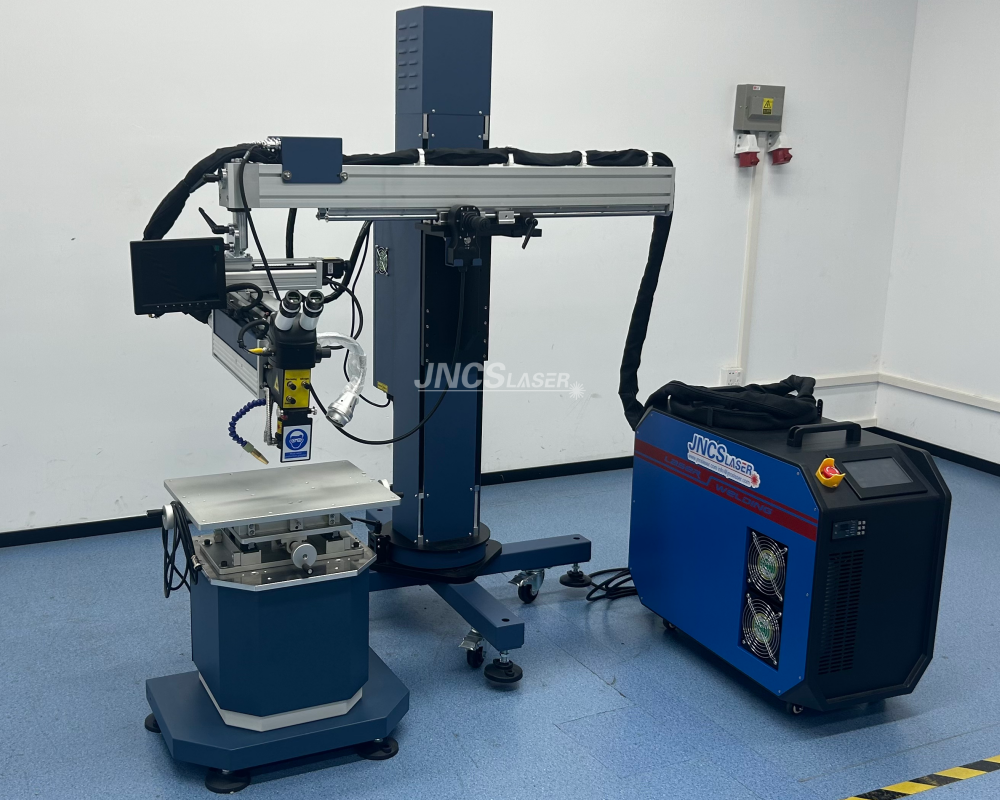

The QCW (Quasi-Continuous Wave) 300W Fiber Laser Welding Machine with a Big Crane is specifically designed for heavy-duty and precision welding applications, particularly suited for industries like mold repairing, automotive manufacturing, and large-scale metal fabrication. The addition of a big crane provides flexibility to handle large or difficult-to-move workpieces, improving efficiency and precision in various tasks.
Main Feature:
- 1. Adopt QCW laser; the light spot is stable and energy-saving.
Compared with traditional welding machines, there is no need to replace consumables

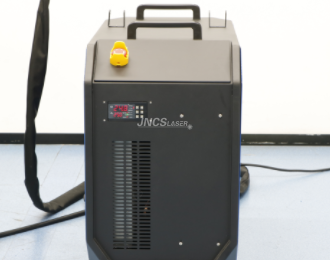

2. Equipped with a dedicated chiller, which can meet long-term welding and provide better stability;
3. Equipped with a three-dimensional load-bearing workbench base with electric lifting, the workbench moves using precision ball screws and high- precision straight guide rails, which are light and flexible, with precise
positioning and a load-bearing capacity of up to 100 kg;
4. The laser head can be easily rotated 180 degrees, making it convenient to repair welding on any side;
5. Equipped with a gas protection system, which effectively protects the
product from argon gas protection during the welding process, maintains the
product’s true color and ensures welding quality.
Machine Configurations:
Optional Parts:

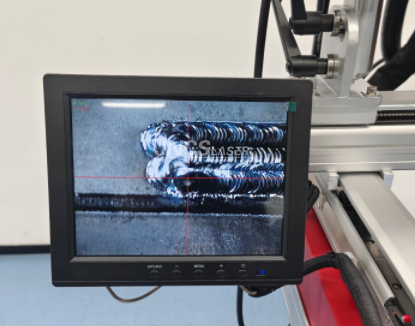

Display on a video, display by connect the device, clear welding point
Without swing head, it can be weld aluminum 0.6mm stainless steel 1.0mm With swing head, It can be weld aluminum 1.0mm stainless 1.2mm
It supports weld round part. Diameter 80mm
It can control laser path x y z direction moving, left right front back up, down, there are two buttons can emit laser, one for dot welding, one for continue welding.
The magnetic ball is often used to fix and align the workpiece. It can generate a magnetic force to hold the mold or small components in place, ensuring that they remain stable during the welding process

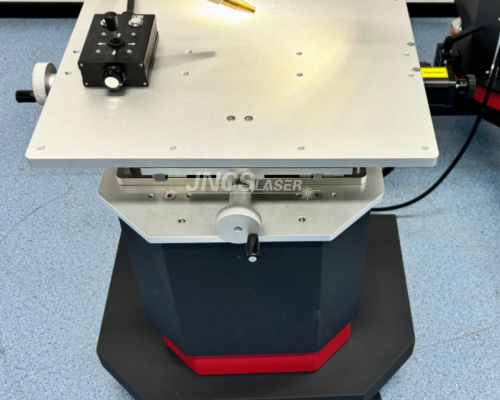

It can be moved front and back, left and right up and down by rocker. Table size: 450X350mm Traveling size: 125X100X300mm Bearing weight: near100kg
Machine Parameters:
model | CS-150W-DB Model | CS-300W-DB model |
Maximum laser power | 150W | 300W |
Laser wavelength | 1064nm | |
Laser fiber length | 10M | |
Laser frequency | 1-30Hz | 1-30HZ |
Pulse Width | 1-20Ms | 1-20Ms |
Light spot adjustment range | 0.2-3mm | 0.2-5mm |

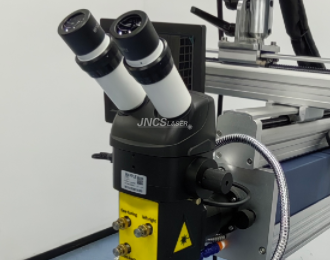

Aiming and positioning | Microscope (optional camera system) | |
Chiller cooling power | 0.4P | 0.4P |
Rated Power | 2.5KW | 3KW |
Power demand | 220V±5V 50Hz/60A | |
Three-dimensional load-bearing workbench | 100kg | |
Overall dimensions/net weight | monitor ：840*380*700mm | monitor： 1450×550×1140mm |
Boom： 1260×760×1687mm | Boom： 1260×500×1687mm | |
Three-dimensional load-bearing workbench ： 550×400×700mm | Three-dimensional load-bearing workbench： 550×400×700mm | |
Video Tutorials & Instructional Video:
Sample Display:
Suitable for large mold repair welding, mobile phone communications, jewelry crafts, electronic components, clocks, sensors, precision machinery, hardware, gas and vehicle parts, etc., various metals and alloys.
How to Play Order:
- Will you please inform us the below information?
- What material will you weld?
- Will you please share with us your sample photos?
- We would like to recommend you suitable laser welding machine accordingly and offer you our best price.
- Will you ship machine by sea, by air ? So, please tell us your nearest sea por, air port. We would like to check freight fee for you.
- After you confirm machine model, power, price, freight fee, then please inform us your Consignee Information ( company name, address, contact, phone number ) we will make Proforma Invoice for you to play order.
- You can remit the payment according to Proforma Invoice.
- Machine will be ready 10-15 working days after your payment.
- We will share with you machine photos and videos since machine is ready.
- After confiming all is fine, we will book shipment.
- We will share with you bill of lading, commercial invoice, packing list after shipment.
- You can operate laser welding machine according to user video and user manual.
- If any questions about using, we would like to guide you online.
