JEWELRY SPOT LASER WELDING MACHINE

Rating:

Energy, pulse width, frequency and focus can be adjusted within a wide range to achieve different welding effects.



Main Feature:

● Ceramic reflector used in the laser pump chamber is imported, which is corrosion resistant, high temperature resistant, high electrical/optical conversion.
● World-leading automatic light shielding system is employed to remove harmful lighting on eyes during operation.
● 24-hour continuous operation, with stable operating performance,
● Free of maintenance within 10000 hours.
● Personalized design in compliance with ergonomics principles.



Jewelry Spot YAG Laser Welding Machine

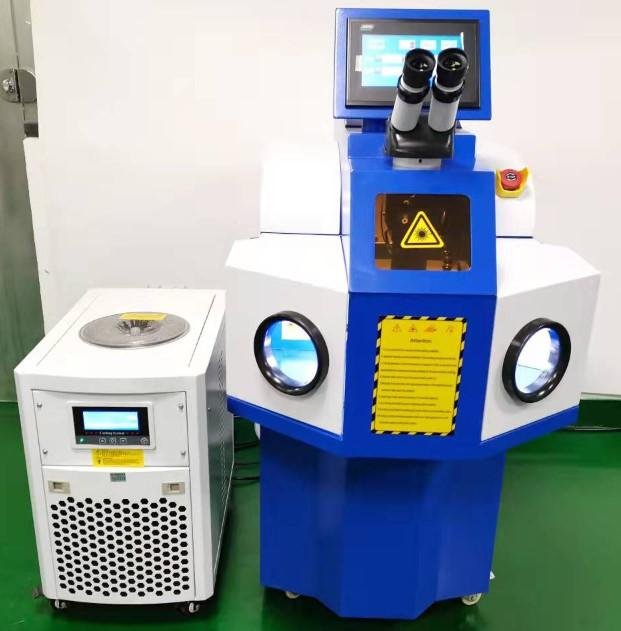

Separate Type: water chiller is outside
Jewelry Spot YAG Laser Welding Machine

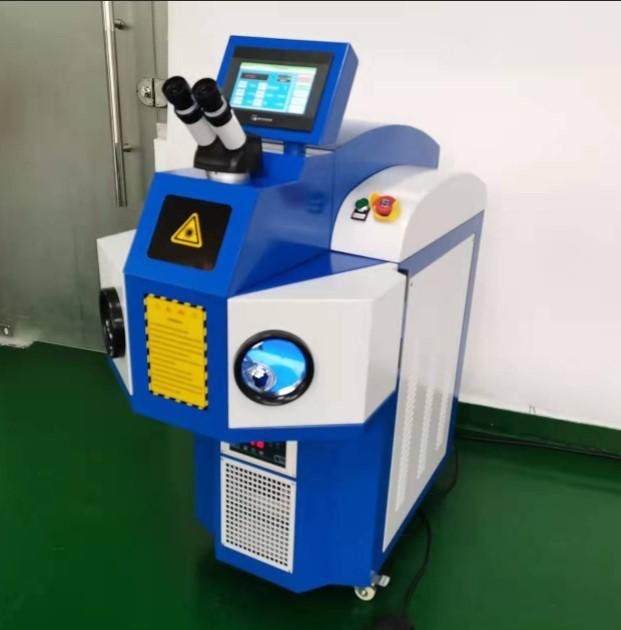

All In One: water chiller is inside.

Machine Configurations:

Jewelry Spot YAG Laser Welding Machine
Control Button

Key start switch
Emergency Stop Switch

Jewelry Spot YAG Laser Welding Machine
HD Mircroscope

Parallel light path HD microscope, adjustable binocular pupil distance, steerable observation

Jewelry Spot YAG Laser Welding Machine
Air switch

Short circuit protection>Earth leakage protection

Jewelry Spot YAG Laser Welding Machine
Advanced controller and touch screen

Support multi language We can change Current, spot processing parameter freely according to welding position

Jewelry Spot YAG Laser Welding Machine

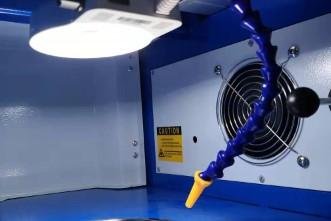

LED Light and Air pipe

t is convenient to check welding position by microscope.

Jewelry Spot YAG Laser Welding Machine
Machine Connections

Power cable, water chiller, gas, foot switch

Jewelry Spot YAG Laser Welding Machine

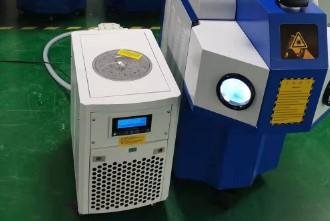

Industrial water chiller

High configuration digital display water chiller, Good cooling effect, good heat dissipation

Jewelry Spot YAG Laser Welding Machine
Jewelry Spot Laser welding machine

hot sale 200w, it is used for jewelry welding, repairing

Machine Parameters:

Model

CS-200W

Rated Laser Power

200W

Laser Source

Nd3+:YAG

Wavelength

1064nm

Pulse frequency

1~50Hz adjustable

Pulse width

1.5~20ms adjustable

Single pulse Energy

60 J

Cover Gas Channel

 1 line quick connection

Focused Beam Diameter

0.1~3mm

Expanding Ratio

 3

Focal Length

100mm

Power Supply

Single phase AC 220V±10%

Cooling

Water cooling

refrigerating capacity

2700W

   Power consumption

6KW

Running Environment

Temperature 10℃~32℃, humidity < 85%.

Machine Package size and Weight

115*67*141 cm   174KG

Water chiller package size and weight

80*53*101 cm   84KG

Video Tutorials & Instructional Video:

Sample Display:

laser jewelry spot welder/gold laser welding machine is used in aviation, aerospace, sports products, jewelry, golf head, medical instrument, titanium alloy denture, instrument, electronics, machinery, automobile, etc,especially for the perforating of gold and silver jewelry, spot welding, repairing, inlay and welding of claw.
