QCW300W Galvanometer Fiber Laser Welding Machine with Visual Positioning System

1.A set of QCW300W Pulsed fiber laser
2.500X300X300mm traveling size

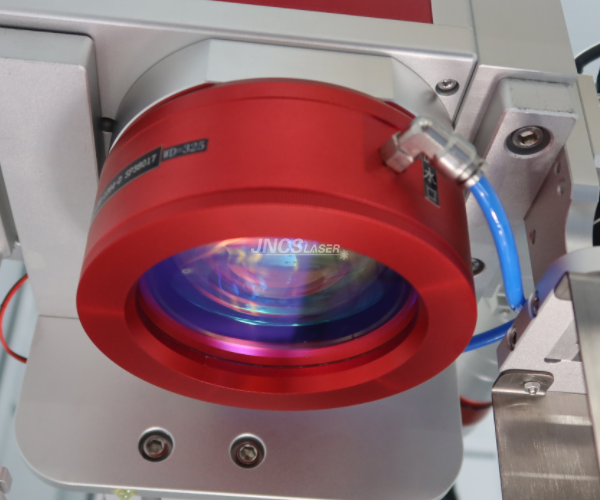

3.A set of galvanometer scanner welding heads;

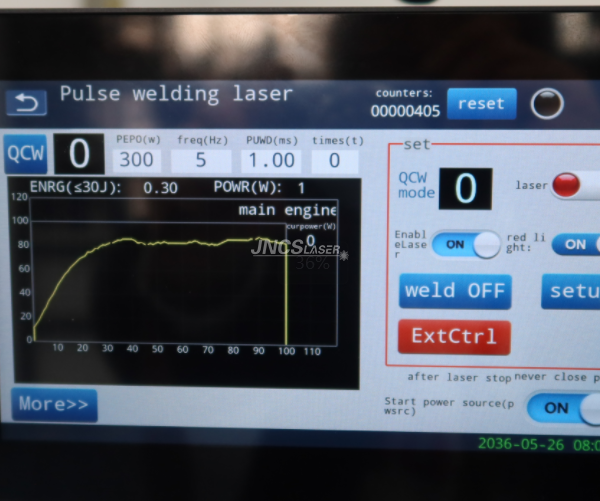

4.One industrial chiller;
5. A set of computer welding systems;
6.a set of visual positioning system
7.a set of host cabinets.

Main Feature:

The QCW300W Galvanometer Fiber Laser Welding Machine with a Visual Positioning System is a highly advanced, precision welding solution designed for a wide range of industrial applications. This machine integrates the power and versatility of a 300W fiber laser with the accuracy of galvanometer scanning mirrors and the added advantage of real-time visual positioning. It is ideal for tasks that require high precision, speed, and the ability to work on complex, intricate parts

Machine Configurations:

Machine Parameters:

Model	CS-FL300W
Rated Laser Power	300W
laser device	Pulsed fiber laser
Laser Power	300W
Laser type	Fiber laser Quasi-Continuous Wave
The laser wavelength,	1064nm
Movement patterns	Fiber laser Quasi-Continuous Wave
Maximum regulation frequency	1-30Hz
Pulse Width	1-20Ms
Light spot adjustment range	0.2-5mm (300W)
Aiming and positioning	CCD Display
Fiber line length	10m
Chiller cooling power	0.4p
Rated Power	3kw
Cooling way	Water cooling
Demand for electricity	AC220V 1 phase 50HZ 60A
Package size and gross weight:	Machine: 146126208cm 600KG Water chiller:7055105cm 65KG

Video Tutorials & Instructional Video:

Sample Display:

Machine Application:

- Precision Electronics Welding
  - Microelectronics, semiconductors, and PCB welding: The QCW300W laser welding machine is ideal for delicate electronic components, such as IC chips, connectors, circuit boards, and electrical components.
  - Battery welding: Perfect for precise welding of battery tabs in portable devices like smartphones, laptops, and electric vehicles.
- Jewelry and Watch Manufacturing
  - Jewelry welding: Used for welding precious metals such as gold, silver, and platinum to repair jewelry or add intricate designs.
  - Watch case welding: The laser’s fine precision allows for seamless welding of watch cases and bands without damaging the surrounding materials.
- Medical Device Manufacturing
  - Medical implants: The high precision of the QCW300W laser allows for welding medical-grade stainless steel or titanium components, often used in surgical instruments, implants, or prosthetics.
  - Micro-welding of medical devices: The system is capable of welding micro-sized parts with incredible accuracy, critical in medical device manufacturing.
- Aerospace & Automotive
  - Precision welding of components: Suitable for aerospace parts such as turbine blades, aircraft components, and automotive components where high strength and low distortion are required.
  - Exhaust systems, fuel lines, and brake systems in the automotive industry.
- Tool and Die Repair
  - The system is ideal for mold repairs and tool restoration. The visual positioning system helps ensure that the laser targets only the damaged or worn areas of molds, reducing the need for extensive mold replacement.
- Micro- and Nano-Scale Welding
  - The fine spot size and accurate beam positioning make this machine ideal for applications in the micro-manufacturing field, such as optics, semiconductors, and high-precision assemblies.
- Battery Pack Welding
  - The system is widely used in the electric vehicle and battery industry for battery pack assembly, including welding battery tabs to battery cells with high precision.

How to Play Order:

Will you please inform us the below information?

What material will you weld? Stainless steel, iron, carbon steel, aluminum, galanized sheet?
What is welding thickness for each kind of metal?

We would like to recommend you suitable laser welding power 1kw 1.5kw 2kw accordingly and offer you our best price.
Will you ship machine by sea, by air? So, please tell us your nearest sea por, air port. We would like to check freight fee for you.
After you confirm machine model, power, price, freight fee, then please inform us your consignee information ( company name, address, contact, phone number ) we will make Proforma Invoice for you to play order.
You can remit the payment according to Proforma Invoice.
Machine will be ready 10-12 working days after your payment.
We will share with you machine photos and videos since machine is ready.
After confiming all is fine, we will book shipment.
We will share with you bill of lading, commercial invoice, packing list after shipment.
You can operate laser welding machine according to user video and user manual.
If any questions about using, we would like to guide you online.
