CS-AS150 Multi-functional Aluminum Stainless Steel Channel Letter Bending Machine

Channel Letter Bending Machine

Rating:

  • CS-FA100
  • Mini Aluminum letter bending machine
  • CS-A150
  • Flat aluminum edge folded aluminum letter  bending machine
  • CS-FAS120
    Flat Aluminum Stainless Steel Letter Bending Machne
  • CS-AS150
  • Multi-functional Aluminum stainless steel  letter bending machine
  • CS-FAS200
  • Flat Aluminum Stainless steel letter bending machine
MORE



Main Feature:

  • 1.The grooving depth can be precisely controlled, and it is controlled by Number axis , so the precise depth of all kinds of materials can be achieved.
  • 2.Intelligent control of software and intelligent interference check can avoid interference collision in bending process.
  • 3.The symmetrical bending mode on both sides avoids interference  in the bending process to the greatest extent, and greatly  improves the bending strength.
  • 4.With the unique stainless steel planer and double slotting  model of profile milling groove, it can be switched by one key  according to the different characteristics of the materials,  which is easy and convenient.
  • 5..With the unique stainless steel planer and double slotting  model of profile milling groove, it can be switched by one key  according to the different characteristics of the materials,  which is easy and convenient.
  • 6.The feeding height is adjusted by rotary hand-wheel, which is easy to operate.
  • 7.Intelligent adjustment of slotting depth is realized by using imported linear guide rail and high precision ball screw.
  • 8.Special specifications and requirements can be customized.

Machine Configurations:

1.Two independent cutter for aluminum and stainless steel

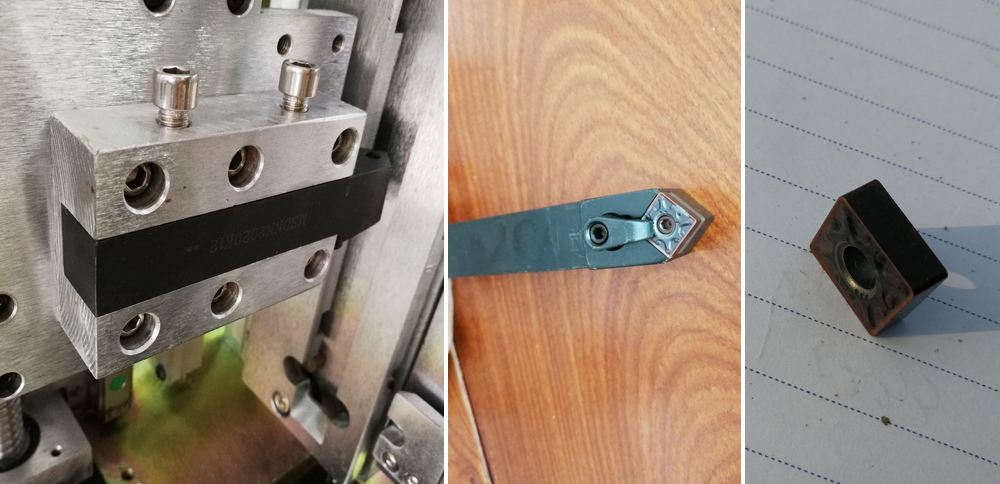

1)Imported Plane Cutter

The stainless steel slotting used the imported plane cutter from Japan. It has low cutting sound, wear-resistant blade, large angle of folding, not easy to break and easy to change.

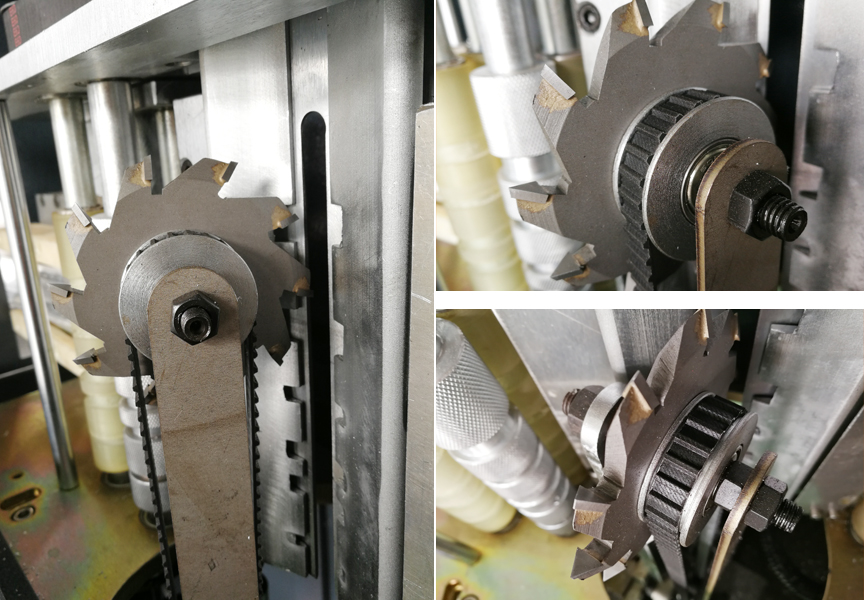

2)Imported milling cutter

The milling cutter used germany imported alloy-coated tool bit, increase the using lifetime.The tip of the cutter is rounded,ensure the flat sheet bending angle is from -180°to 170°.

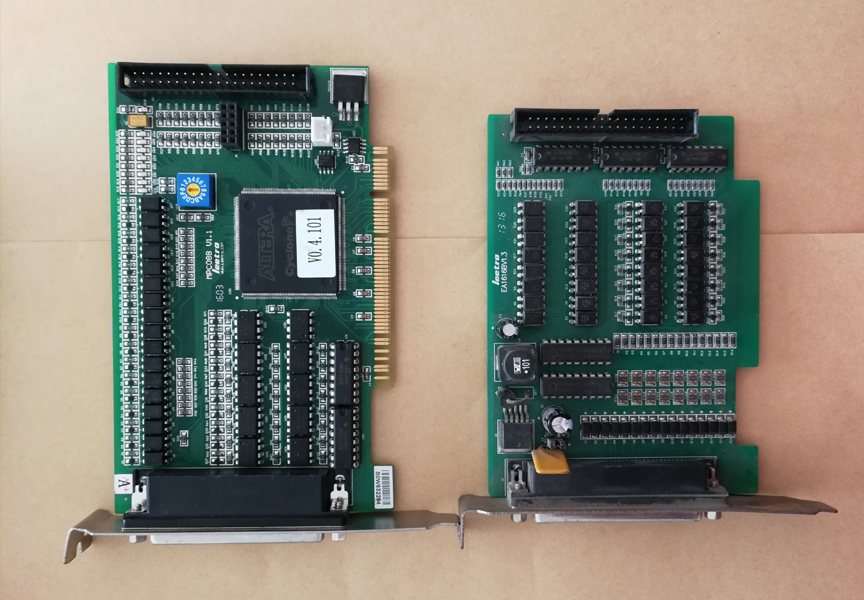

2. Control system

The control card and software is original leetro control system,easy to study and operate,ensure the machine calculating size with zero error.The control card running stable ,with strong anti-interference ability.

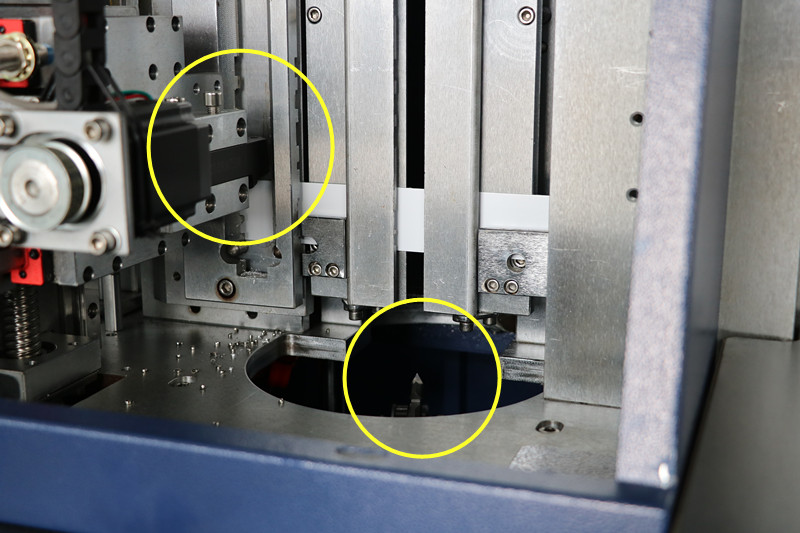

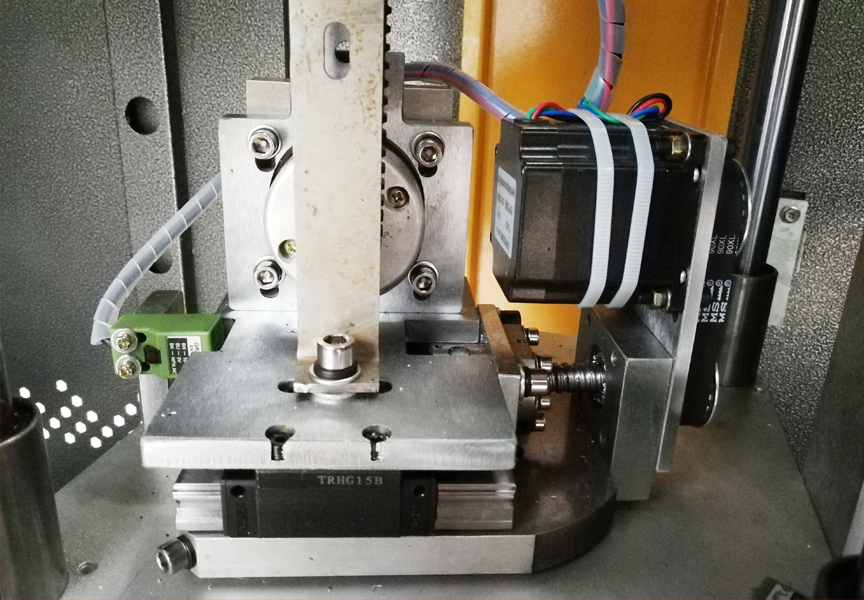

3.Depth adjusting system

The unique depth adjusting system can automatically adjust the groove depth by modifying the software parameters, and can control the front and back adjustments separately. The motion part adopts screw rod, square rail and slider, which has high precision and good stability.

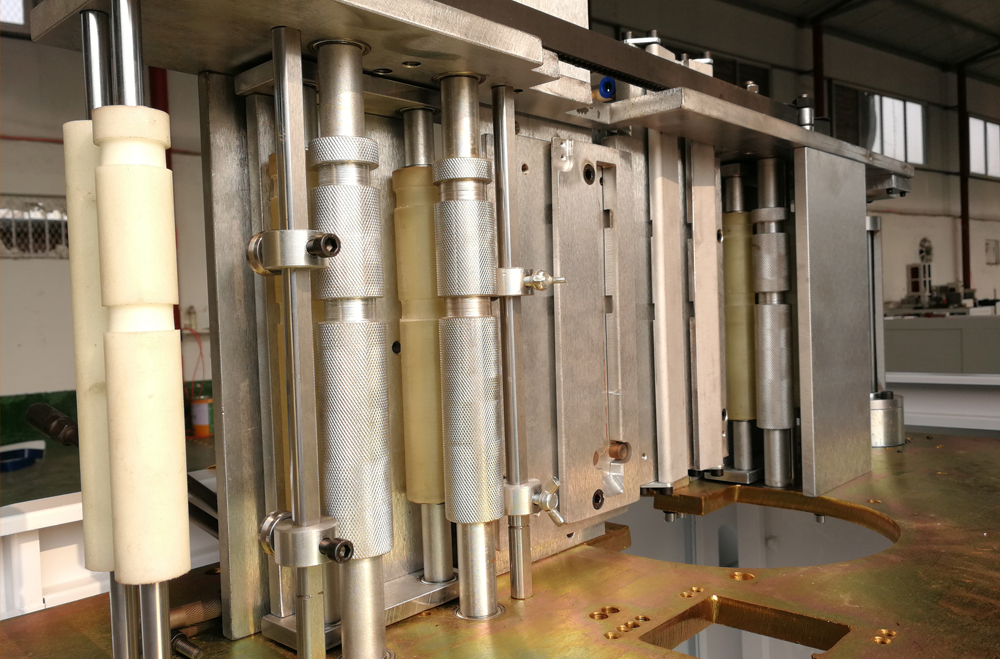

4.Feeding system

The feeding part is clamped by rubber rollers and driven by gear belt. Fast speed can realize the continuous feeding . It is suitable for stainless steel, galvanized sheet, aluminum plate and other materials.

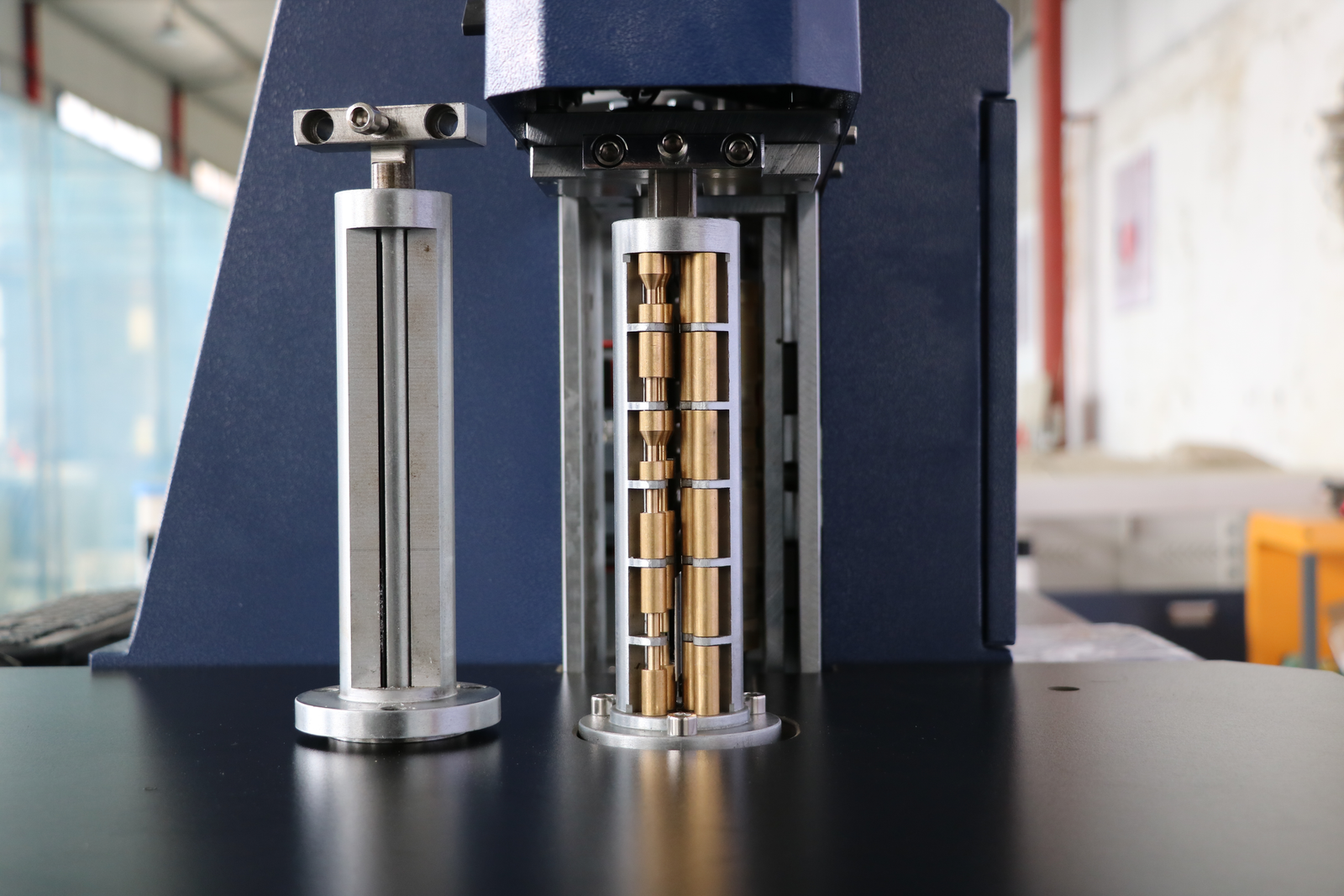

5.Bending tool

The bending part adopts the working mode of two-axis linkage bending, which is equipped with servo motor and speed reducer. It has fast speed, high precision, no damage to the material surface and small bending interference.

Machine Parameters:

Model Features
CS-AS150 Multifunction Model Aluminum,SS Model FunctionAuto feeding,notching and bending
Applicable material All type aluminum,stainless steel
Material thicknessAluminum: 0.3-1.5mm SS:0.3-1mm
Material width20-150mm
Slot degree 45-135 Degree
Min Bending DiameterAluminum:≥12mm                                   Stainless steel:4mm
Power≤2000W
Air compressor0.6Mpa
File formatAI,DXF,PLT
Voltage220V50HZ1P
Machine size1500*700*1350mm
Package size1650*900*1700mm
Weight450Kgs

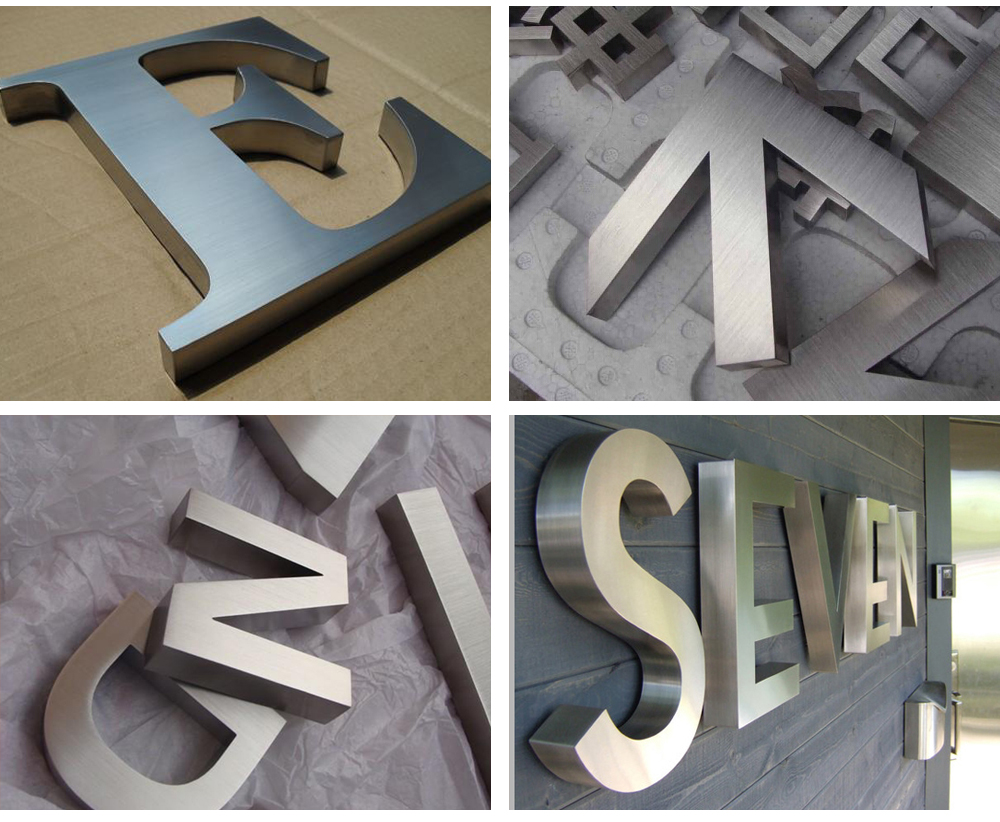

Sample Display:

Application:

Trimless channel letter, Liquid acrylic channel letter, Aluminum epoxy channel letter, Stainless steel channel letter, Punching channel lette

Video Tutorials & Instructional Video:

How To Play Order

  • 1. Will you please tell us the below information?  What material will you bend? and height of letter?
  • 2. We will recommend you suitable machine and offer you our best price.
  • 3. If all is ok, please tell us your consignee information (company name, address, contact, phone number ), we will make Proforma Invoice for you to play order.
  • 4. We will arrange machine production after you remit the payment.
  • 5. We will share with you machine photos and videos after machine ready.
  • 6. After you confirming, then we will arrange machine shipment.
  • 7. You can operate machine according to user video and manual.
  • 8. If any questions about laser cleaning operating, then we can guide you online.
