CS-FAS200 Flat Aluminum Stainless Steel Channel Letter Bending Machine

Channel Letter Bending Machine

Rating:

  • CS-FA100
  • Mini Aluminum letter bending machine
  • CS-A150
  • Flat aluminum edge folded aluminum letter  bending machine
  • CS-FAS120
    Flat Aluminum Stainless Steel Letter Bending Machne
  • CS-AS150
  • Multi-functional Aluminum stainless steel  letter bending machine
  • CS-FAS200
  • Flat Aluminum Stainless steel letter bending machine
MORE



Main Feature:

  • 1. Fully automatic feeding slotting and bending according to the characteristics of the letter.
  • 2. Slotting method adopts high-precision guide screw system, super-hard white steel blade slotting method, low cost and good effect.
  • 3. Alternating feed clamping mechanism, accurate feeding, no indentation on the material surface.
  • 4. The arc-bending method is to alternately bend the upper and lower shafts, with a high degree of forming, and to bend up and down simultaneously.
  • 5. The bending system uses a high-precision servo acceleration and deceleration system, which effectively solves the phenomenon of stainless steel bending and not moving.
  • 6. Adjustable pneumatic feeding device, can adjust the size according to the hardness of the material, reduce the damage to the surface of the material.
  • 7. Humanized operation software, automatically adjusts the depth of the slot, and can quickly replace the blade.
  • 8. The height of the processed material is 20-200mm, and the thickness is 0.4-1.2mm.
  • 9. Applicable materials: stainless steel, galvanized sheet, aluminum flat plate.
  • 10. Special specifications can be customized.

Machine Configurations:

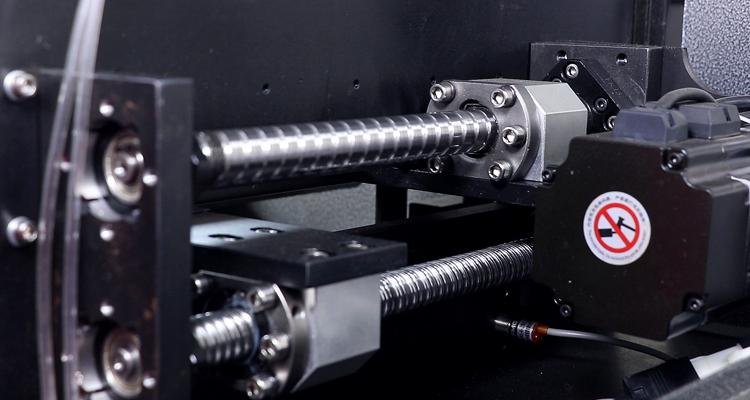

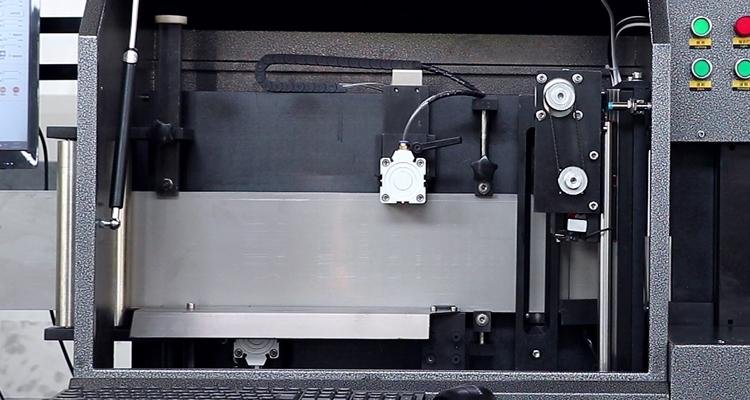

1.Feeding Part

Alternating feed clamping mechanism, accurate feeding, no indentation on the material surface. The double ball screw of feeding design ensure the feeding speed and precision as well as stability

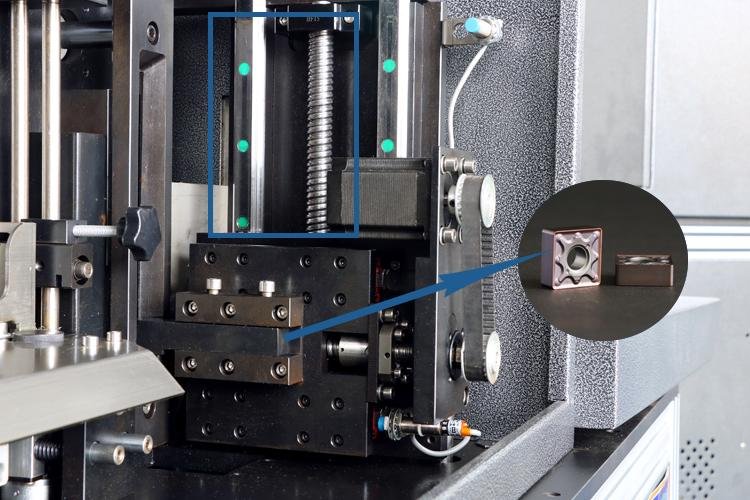

2.Slotting Part

Slotting method adopts high-precision guide rail & ball screw system, super-hard white steel blade slotting method, low cost and good effect..

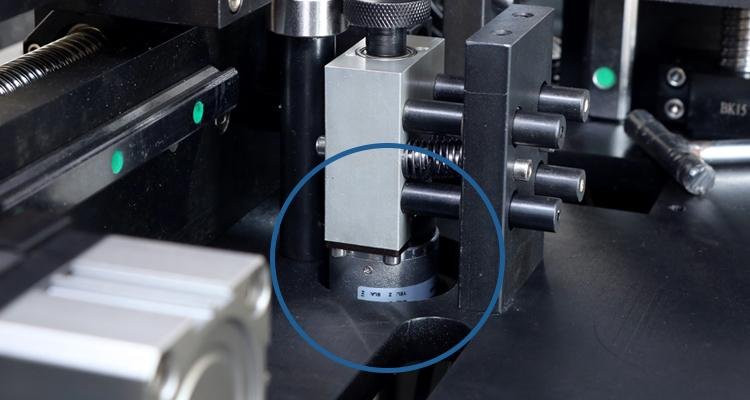

3.Encoder

The encoder module is the key component of the the relation equipment precision , and the precision casting is used to ensure the performance of the high precision encoder.

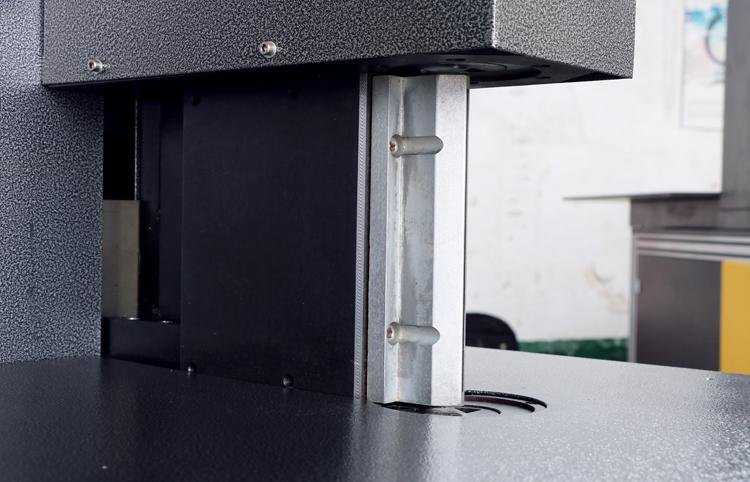

4.Bending tool

The bending system uses a high-precision servo acceleration and deceleration system, which effectively solves the phenomenon of stainless steel bending and not moving.

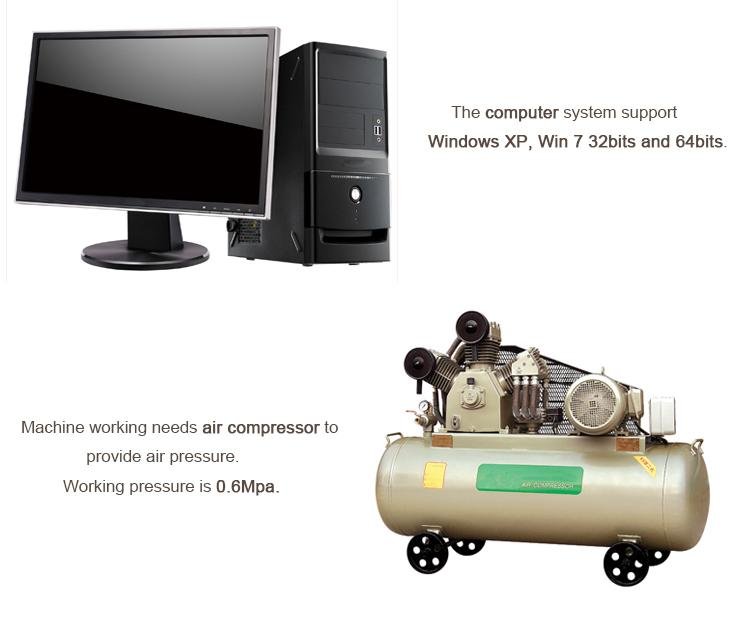

5. Support Part

Computer with PCI and Air compressor

Machine Parameters:

Model Features
CS-FAS200                       200mm Flat Aluminum,SS Model HS Code:84622190FunctionAuto feeding,notching and bending
Applicable material Flat aluminum,stainless steel
Material thickness0.3-1.5mm
Material width20-200mm
Slot degree 45-135 Degree
Bending Radius7mm(Min)
Power3.5KW
Air compressor0.6Mpa
File formatAI,DXF,PLT
Voltage220V50HZ1P

Video Tutorials & Instructional Video:

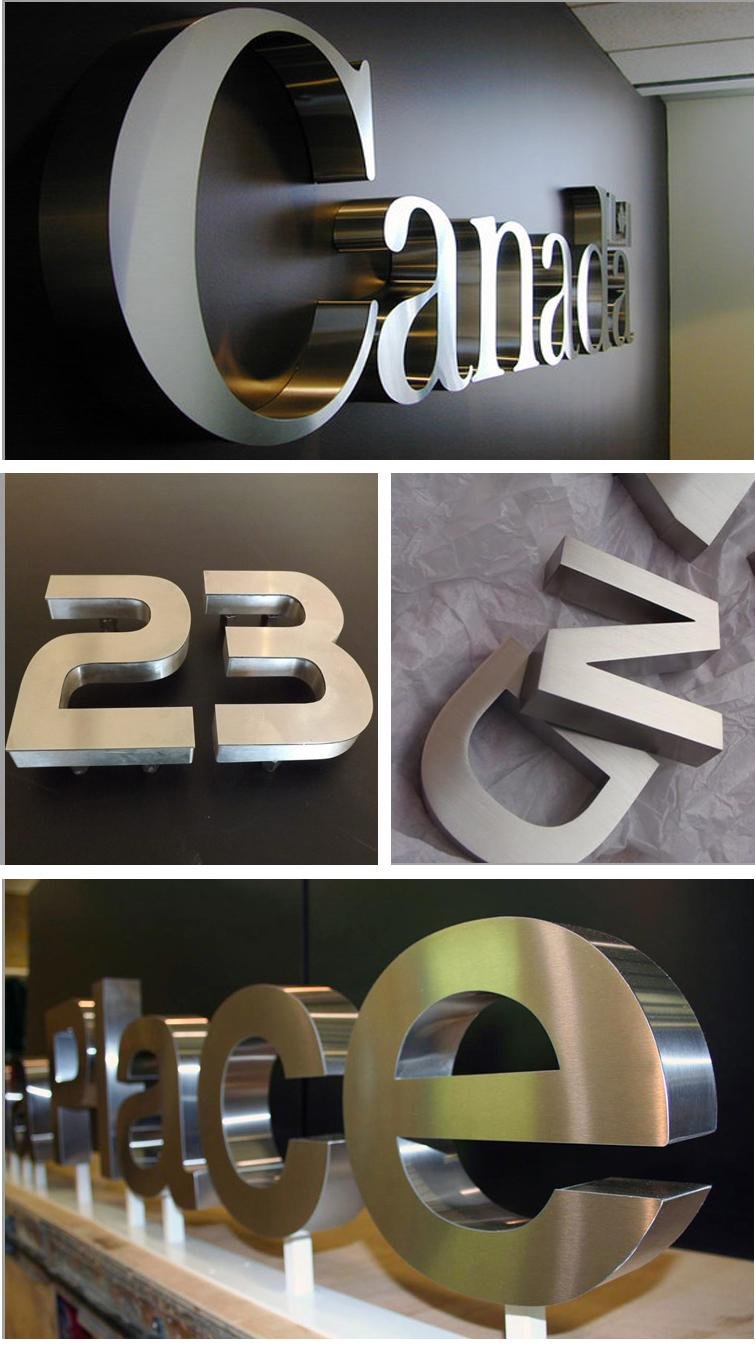

Sample Display:

Application:

Trimless channel letter, Liquid acrylic channel letter, Aluminum epoxy channel letter, Stainless steel channel letter, Punching channel lette

How To Play Order

  • 1. Will you please tell us the below information?  What material will you bend? and height of letter?
  • 2. We will recommend you suitable machine and offer you our best price.
  • 3. If all is ok, please tell us your consignee information (company name, address, contact, phone number ), we will make Proforma Invoice for you to play order.
  • 4. We will arrange machine production after you remit the payment.
  • 5. We will share with you machine photos and videos after machine ready.
  • 6. After you confirming, then we will arrange machine shipment.
  • 7. You can operate machine according to user video and manual.
  • 8. If any questions about laser cleaning operating, then we can guide you online.
