CS-A150 Flat Aluminum Edge Folded Aluminum Channel Letter Bending Machine

Channel Letter Bending Machine

Rating:

  • CS-FA100
  • Mini Aluminum letter bending machine
  • CS-A150
  • Flat Aluminum Edge Folded Aluminum letter bending machine
  • CS-FAS120
    Flat Aluminum Stainless Steel Letter Bending machine
  • CS-AS150
  • Multi-functional letter Aluminum Steel letter bending machine
  • CS-FAS200
  • Flat Aluminum Stainless steel letter bending machine
MORE



Main Feature:

  • 1. Automatic computer adjusting system, no need to adjust the slotting depth by hand.
  • 2. Fast bending speed, one time forming, big curve arc is flapped, small curve arc is squeezed.
  • 3. Material width is 30-150mm,thickness is 0.4-1.2mm.
  • 4. Low power consumption,the using power less than 1500W
  • 5. Can read various vector files in DXF, AI, PLT format, matching with engraving files.
  • 6. Double side slotting,the bending angle of flat sheet is from -180° to 170°.
  • 7. Adopt high quality encoder,high reliability, long lifetime and strong anti-interference performance.
  • 8. Special parameter requirement can be customized.

Machine Configurations:

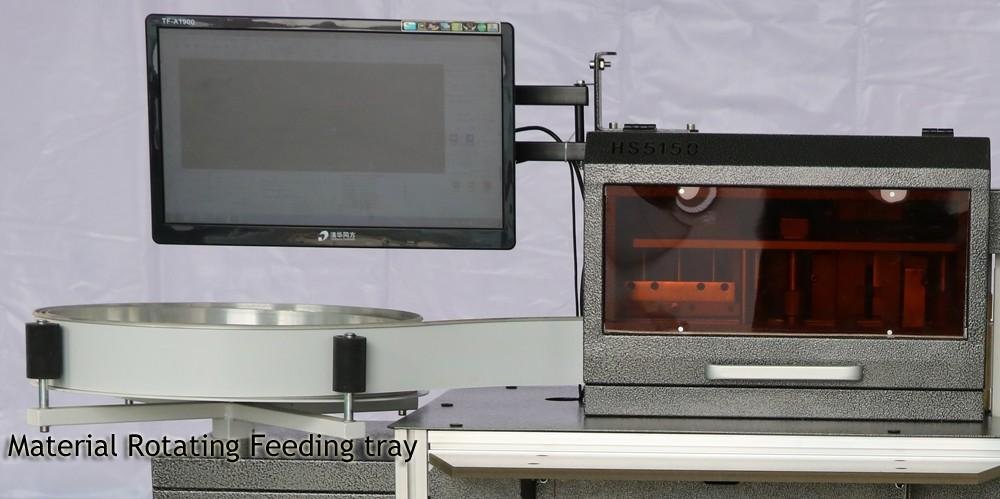

1. Feeding System

The feeding part is clamped by rubber rollers and driven by gear belt. Fast speed can realize the continuous feeding.It is suitable for flat aluminum,aluminum profile and other materials.

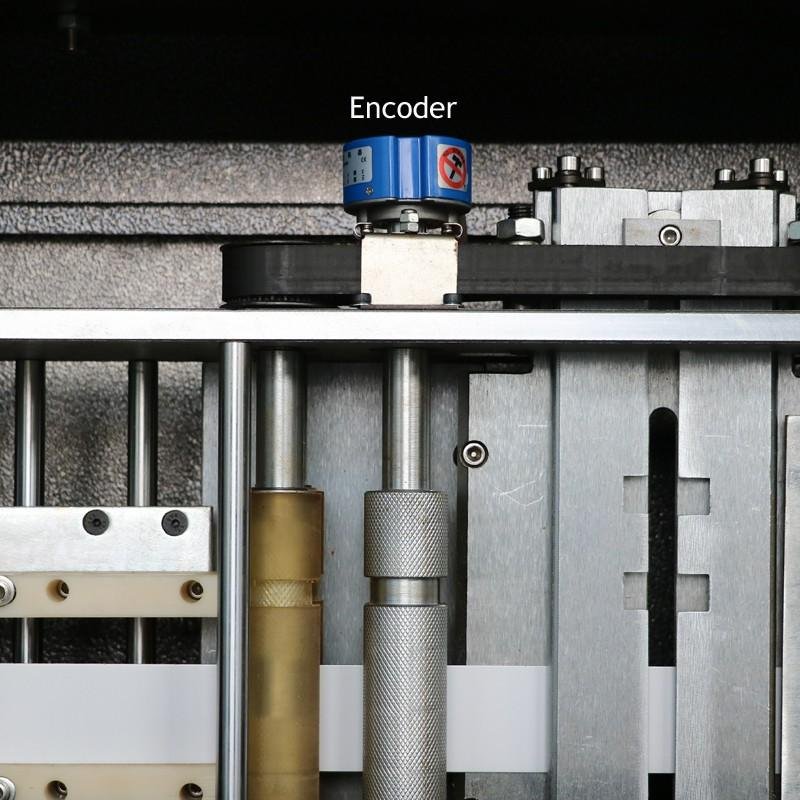

2. High Quality Encoder

The high quality encoder used in this machine has high reliability, long life and strong anti-interference performance. With the high-speed precision motor, its high-precision performance makes the feeding control more accurate.

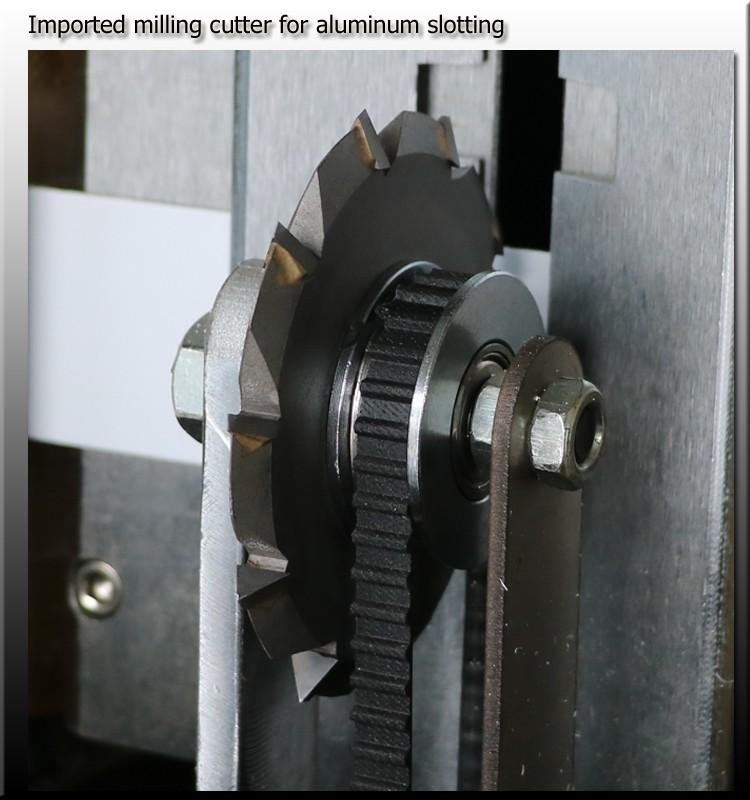

3. Imported Milling Cutter

The milling cutter used germany imported alloy-coated tool bit, increase the using lifetime.The tip of the cutter is rounded,ensure the flat sheet bending angle is from -180°to 170°.

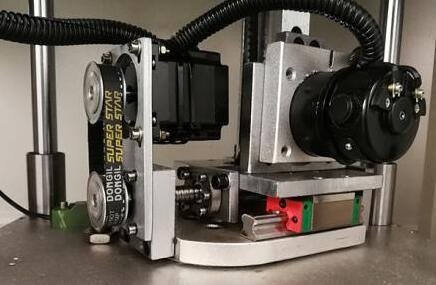

4. Depth Adjusting System

The unique depth adjusting system can automatically adjust the groove depth by modifying the software parameters, and can control the front and back adjustments separately. The motion part adopts screw rod, square rail and slider, which has high precision and good stability.

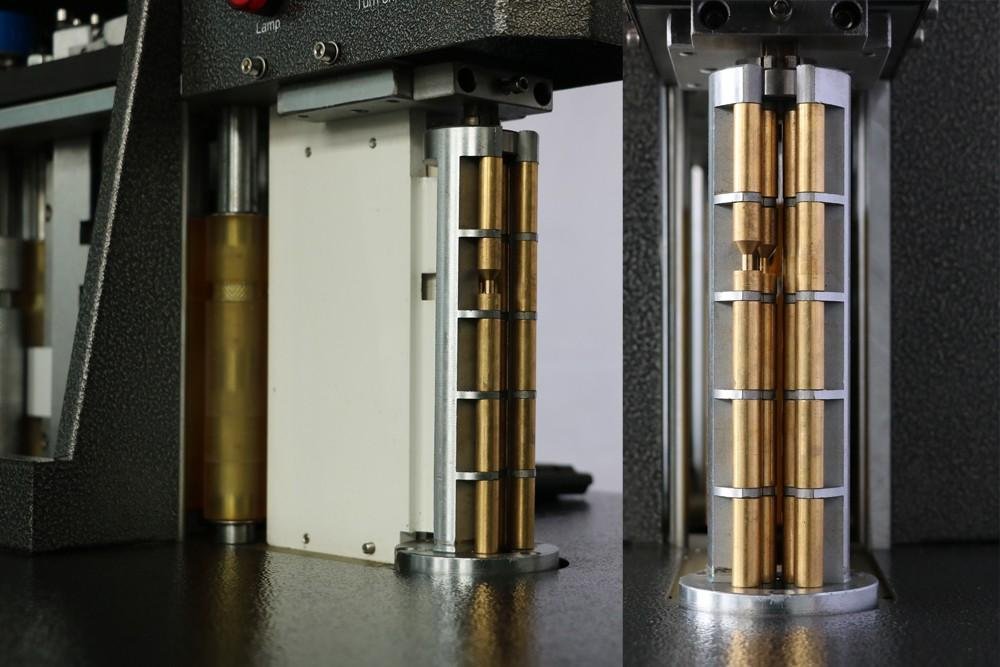

5. Bending Tool

The bending part adopts the working mode of two-axis linkage bending, which is equipped with servo motor and speed reducer. It has fast speed, high precision, no damage to the material surface and small bending interference.

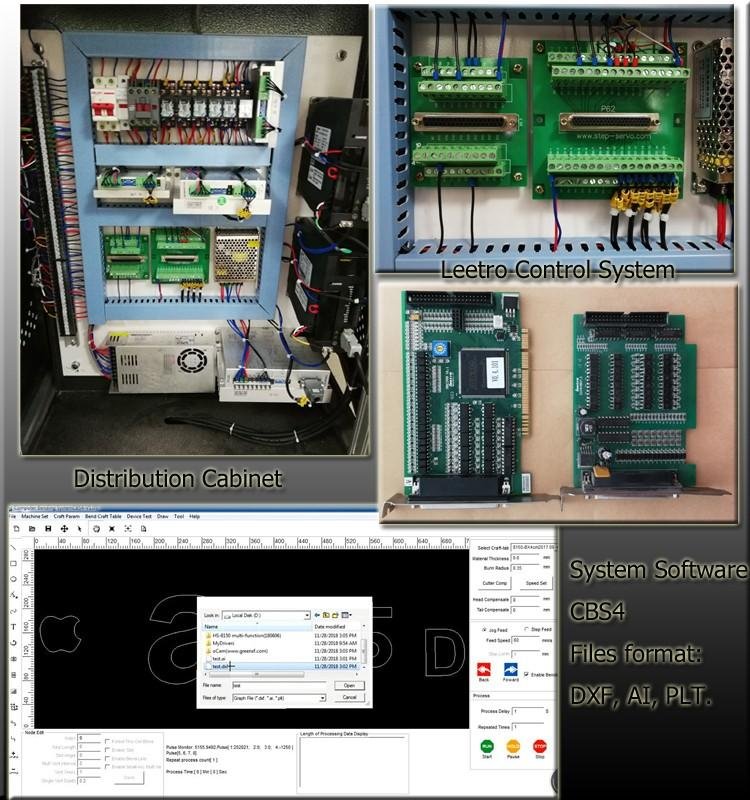

6. Electrical Components and Software

1. Professional distribution box. All electricall components and techniccal parameters comply with standard design requirements. 2. The control card and software is original Leetro control system, easy to study and operate, ensure the machine calculating size with zero error. The control card running stable, with strong anti-interference ability. 3. Software has both English and Chinese language, It can real all kinds of vector files in PLT, AI and DXF formats, and match perfectly with engraving machine files. 4. Computer system can support Windows XP, Win 7 32bits and 64bits.

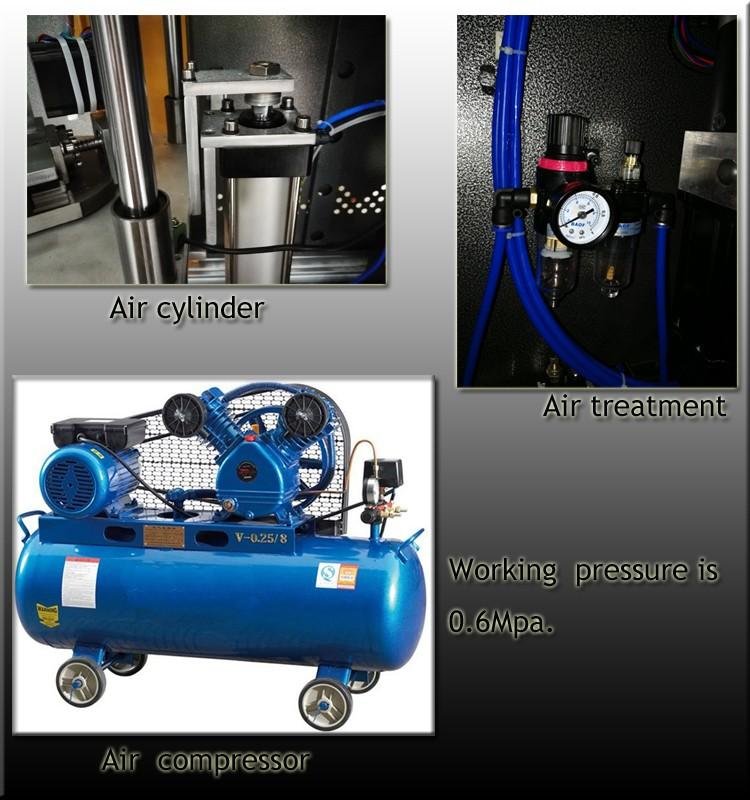

7. Supporting Facility

Machine working needs air compressor to provide air pressure. Working pressure is 0.6Mpa.

Machine Parameters:

Model Features
CS-A150                           (Aluminum Model, For all kinds Aluminum materials.)                    FunctionAuto feeding,notching and bending
Applicable material All type aluminum
Material thickness0.3-1.5mm
Material width20-150mm
Slot degree 45-135 Degree
Min Bending Diameter≧12mm
Power≤1500W
Air compressor0.6Mpa
File formatAI,DXF,PLT
Voltage220V50HZ1P
Machine size1350*700*1300mm
Package size1420*830*1520mm
Weight260Kgs

Sample Display:

Application:

Trimless channel letter, Liquid acrylic channel letter, Aluminum epoxy channel letter, Stainless steel channel letter, Punching channel lette

Video Tutorials & Instructional Video:

How To Play Order

  • 1. Will you please tell us the below information?  What material will you bend? and height of letter?
  • 2. We will recommend you suitable machine and offer you our best price.
  • 3. If all is ok, please tell us your consignee information (company name, address, contact, phone number ), we will make Proforma Invoice for you to play order.
  • 4. We will arrange machine production after you remit the payment.
  • 5. We will share with you machine photos and videos after machine ready.
  • 6. After you confirming, then we will arrange machine shipment.
  • 7. You can operate machine according to user video and manual.
  • 8. If any questions about laser cleaning operating, then we can guide you online.
