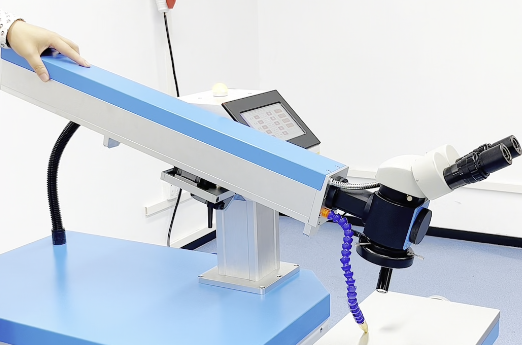

New Design Small 200W Laser Welding Machine for Repairing Mold

Laser Welding Machine for Mould Repairing

Rating:

Mold laser welding machine mainly used in large-scale moulds’ repairing. the machine is controlled by Industrial micro-Computer.YAG Laser mould welding machine is use the high energy of heat that instantaneously produced by laser to melt the special-purpose welding wire and connect it with the damaged parts of the mould so it can connect with the original material firmly, after that it shows a reface by electric spark and grind & cutting and some other processing and so the mould is repaired.



Main Feature:

  • Adopt imported ceramic concentrating cavity, high reflectivity, strong energy, high temperature resistance, corrosion resistance and long service life;
  • Electric Motorized up down Z : machine is equipped with Up, down control button, Z traveling size 170mm

  • The laser path can be moved front and back, Its traveling size 300mm

  • The welding head angle can be adjustable within 30 degree.

  • The machine table can be moved front and back, left and right manually. It can be moved up or down electric. XY travel size: 110X80mm Z traveling size: 250mm

Machine Configurations:

New Design Small 200W Laser Welding Machine for Repairing Mold
New Design YAG 200W Laser Welding Machine for mold
New Design Small 200W Laser Welding Machine for Repairing Mold
New Design YAG 200W Laser Welding Machine for mold
New Design Small 200W Laser Welding Machine for Repairing Mold
Electric Motorized up down Z :

Up, down control button Z traveling size 170mm

New Design Small 200W Laser Welding Machine for Repairing Mold
Microscope

Parallel light path HD microscope, adjustable binocular pupil distance, steerable observation,

New Design Small 200W Laser Welding Machine for Repairing Mold
laser parameter screen

Support multi language We can change Current, spot processing parameter freely according to welding position.

New Design Small 200W Laser Welding Machine for Repairing Mold
Welding Head Angle Adjustable

The welding head angle can be adjustable within 30 degree.

New Design Small 200W Laser Welding Machine for Repairing Mold

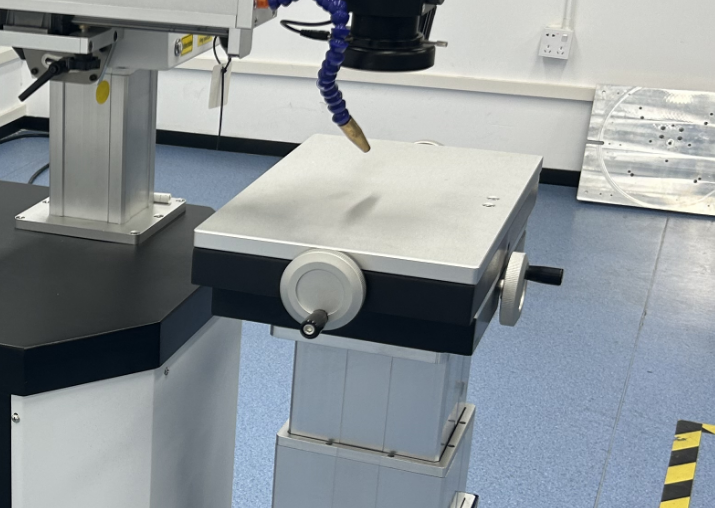

Machne worktable 40X24cm :

It can be moved front and back, left and right manually. It can be moved up or down electric. XY travel size: 110X80mm Z traveling size: 250mm

New Design Small 200W Laser Welding Machine for Repairing Mold

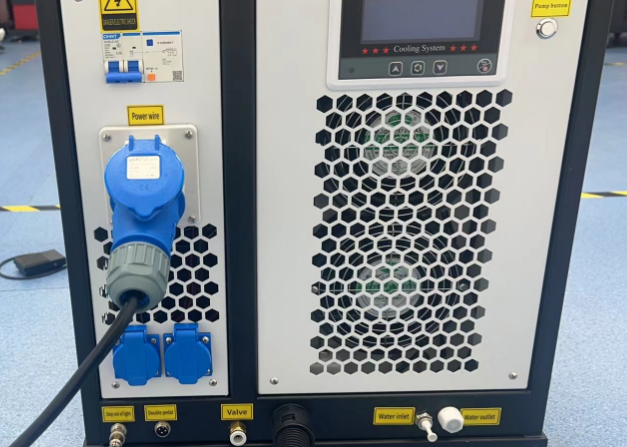

Industrial water chiller:

High configuration digital display water chiller, Good cooling effect, good heat dissipation

Machine Parameters:

Model

CS-YAG200W

Rated Laser Power

200W

Condenser reflector

Imported ceramic condenser

The laser frequency

1-20Hz

The pulse width

0.1-10Ms

Spot adjustment range

0.3-2mm

Aimed at positioning

Microscope (optional camera system)

Cold power of cold water mechanism

1.5P for 200w

The engine power

8KW

Demand for electricity

220V±5V 50Hz

Range of three dimensional load-bearing table

40x24cm

bearing capacity of three dimensional load-bearing table

100kg

Manual Movement for laser path

300mm

Packing size and weight

114*55*124   156KG

Video Tutorials & Instructional Video:

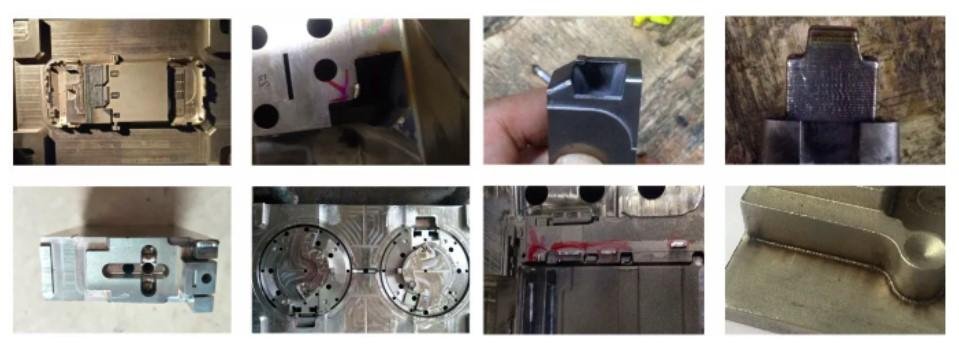

Sample Display:

mould repair laser welding machine can be widely used in many fields, such as as mold laser welding machine widely used in molds, precision injection molding, die casting and punching mold, stainless steel products and other hard materials cracks, chipping, grinding and wear seal repair, welding, cell phones, jewelry, electronics, sensors, precision machinery, communications, crafts and other industries.

Boom Type YAG Laser Welding Machine for Mold Repair

How to Play Order:

  1. Will you please inform us the below information?
  • What material will you weld?
  • Will you please share with us your sample photos?
  1. We would like to recommend you suitable laser welding machine accordingly and offer you our best price.
  2. Will you ship machine by sea, by air ? So, please tell us your nearest sea por, air port. We would like to check freight fee for you.
  3. After you confirm machine model, power, price, freight fee, then please inform us your Consignee Information ( company name, address, contact, phone number ) we will make Proforma Invoice for you to play order.
  4. You can remit the payment according to Proforma Invoice.
  5. Machine will be ready 10-15  working days after your payment.
  6. We will share with you machine photos and videos since machine is ready.
  7. After confiming all is fine, we will book shipment.
  8. We will share with you bill of lading, commercial invoice, packing list after shipment.
  9. You can operate laser welding machine according to user video and user manual.
  10. If any questions about using, we would like to guide you online.
