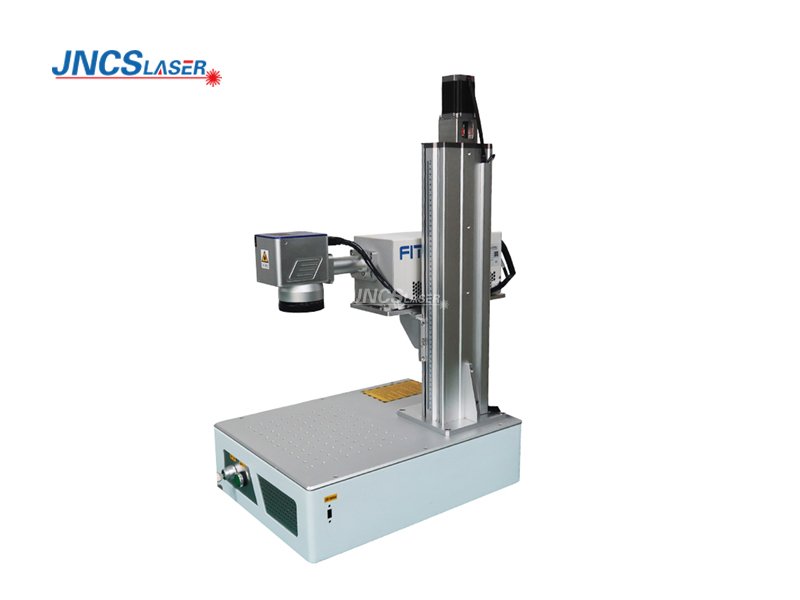

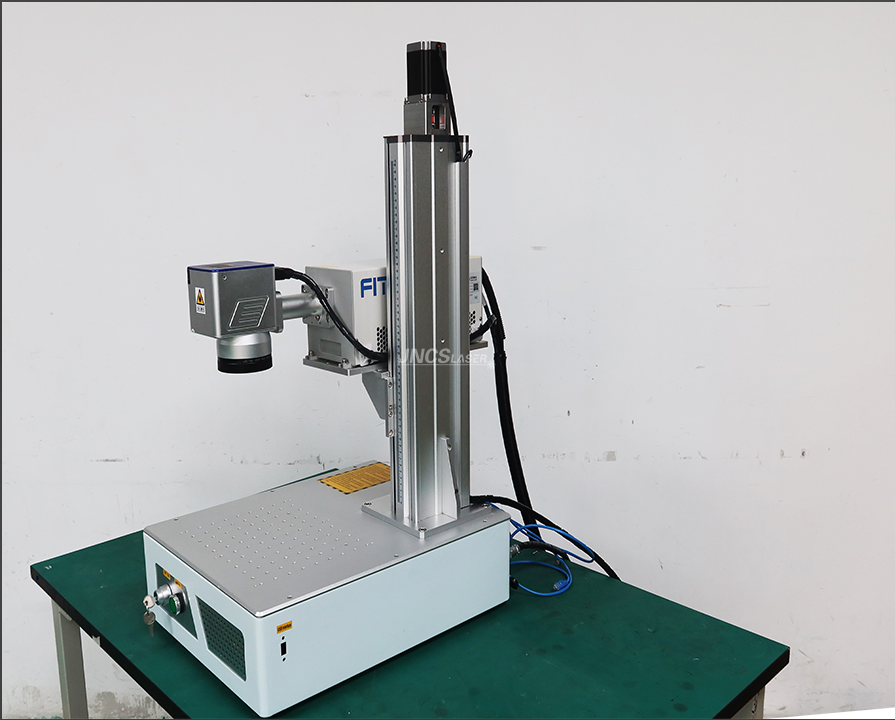

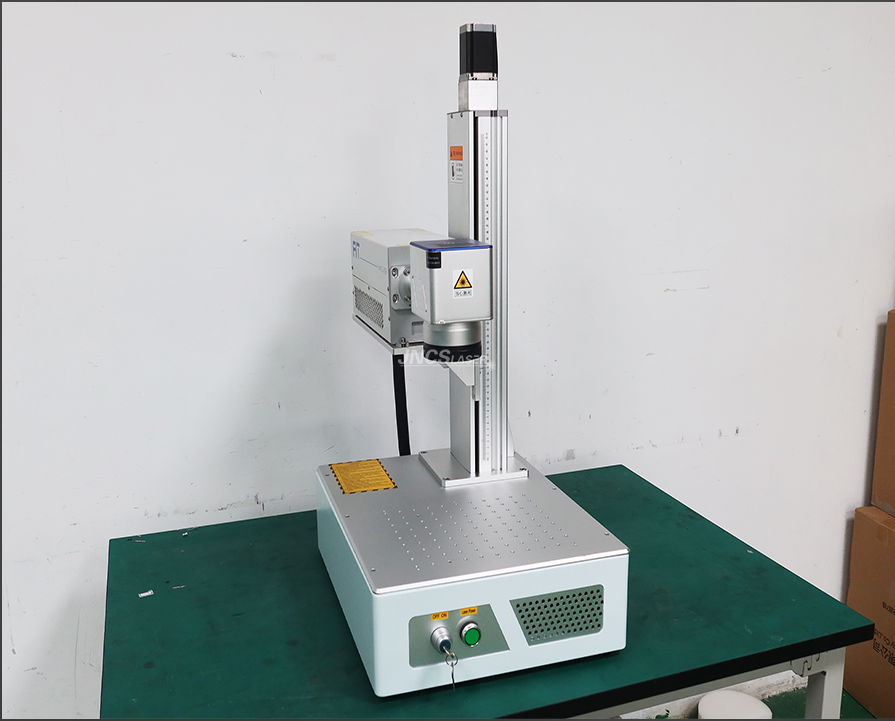

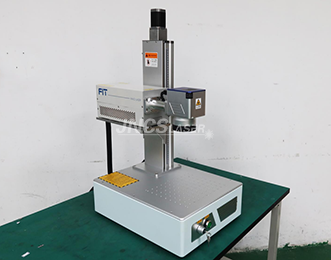

5W Crystal Inner UV Laser marking machine
5W Crystal Inner UV Laser marking machine
UV laser marking machine is also called UV laser engraving machine, which has high beam quality and small spot, and the processing of heat affected area is small, which can be used for ultra-fine marking, special material marking. UV laser marking machine is suitable for processing more extensive materials, such as plastics, including PP (polypropylene), PC (polycarbonate), PE (polyethylene), ABS, PA, PMMA, silicon, glass and ceramics.
UV laser marking machine is also called UV laser engraving machine, which has high beam quality and small spot, and the processing of heat affected area is small, which can be used for ultra-fine marking, special material marking. UV laser marking machine is suitable for processing more extensive materials, such as plastics, including PP (polypropylene), PC (polycarbonate), PE (polyethylene), ABS, PA, PMMA, silicon, glass and ceramics.
Main Feature:
- Perfect marking quality: 355nm output wavelength to reduce the thermal impact on the workpiece, high-precision galvanometer marking head can ensure fine and repeatable marking, high-precision fine spot to ensure the perfect marking results, The marking process is non-contact, the marking effect is permanent.
- Heat affected area is very small, there will be no thermal effect, the material is not deformed and charred.
- High speed and high efficiency.
- Machine performance is stable, small size, low power consumption.
- The UV laser engraving machine is suitable for heat radiation reaction of large materials processing, if it’s used for the production line with the automatic loading and unloading, it can realize automatic access to materials. It’s suitable for the vast majority of metal and non-metallic materials on the marking industry.
Machine Configurations:
Machine Configurations:
Brand Name: Inno Laser High quality Precise position

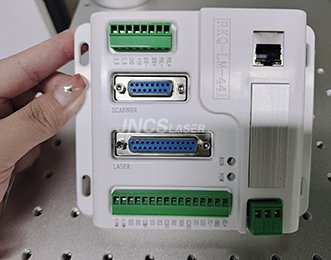

Brand Name: Beijing JCZ Support Rotary Software: Ez cad Support: Windows system WinXP Win7 Win8 Win10
Brand Name: beijing CSDQ working area: 110X110mm, 150X150mm, 200X200mm, 300X300mm
Foot Switch Protect Goggles U disk with software Spanner Keys Screws Ruler Power Cable
Brand Name: Sino Galvo High speed, high precision
Brand Name: Sino Galvo High speed, high precision
1. Plastic film 2. Foam 3. Wooden package
Machine Optional Parts:
Diameter: 80mm
It can be moved left and right, Front and back.
Smoke purifier is mainly used for the purification of smoke and dust produced in marking, cutting, and other processes as well as the recovery of rare metals and precious materials
It can be put 24 pcs pens.
Diameter: 80mm
Machine Parameters:
Technical specification | |
Model | CS-UV5W |
Wave length of laser | 355nm |
Laser output power | 5W |
Marking speed | 400 characters per second |
Beam quality | <1.1 |
Repeated accuracy | ±0.02mm |
Working area | 70*70mm (maximum 50*50*70mm crystal engraving size) |
Machine power | 800W |
Minimal character | 0.1mm |
Cooling ways | Air Cooling |
Power supply | AC220V/ 50hz/60hz 1phase |
Minimum line width | 0.015mm |
Support format | PLT, BMP, DXF, JPG, TIF, AI etc |
Cooling system | Air cooling |
Package | Standard Crate for export |
Video Tutorials & Instructional Video:
Sample Display:
UV laser marking machine is suitable for processing more extensive materials, such as plastics, including PP (polypropylene), PC (polycarbonate), PE (polyethylene), ABS, PA, PMMA, silicon, glass and ceramics.
How to Play Order:
- Will you please inform us the below information?
- What material will you mark?
- What is your maximum marking area?
- We would like to recommend you suitable laser marking machine accordingly and offer you our best price.
- Will you ship machine by sea, by air or by courier? So, please tell us your nearest sea por, air port, or detailed address. We would like to check freight fee for you.
- After you confirm machine model, power, price, freight fee, then please inform us your Consignee Information ( company name, address, contact, phone number ) we will make Proforma Invoice for you to play order.
- You can remit the payment according to Proforma Invoice.
- Machine will be ready 5-7 working days after your payment.
- We will share with you machine photos and videos since machine is ready.
- After confiming all is fine, we will book shipment.
- We will share with you bill of lading, commercial invoice, packing list after shipment.
- You can operate laser marking machine according to user video and user manual.
- If any questions about using, we would like to guide you online
