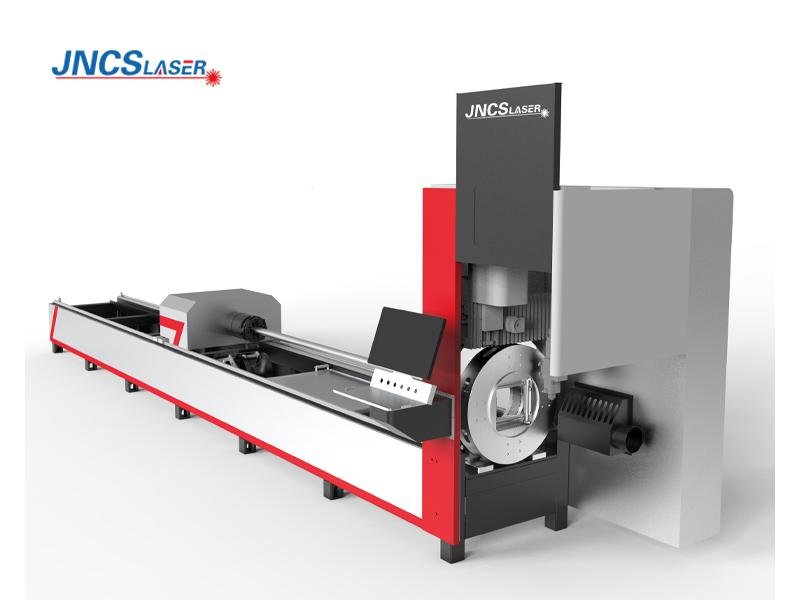

Professional Tube Pipe Fiber Laser Cutting Machine

Tube Pipe Fiber Laser Cutting Machine

Rating:

Fiber Laser Cutting Machine can be applied to various industries, such as sheet metal processing, aviation, electrical appliances, subway accessories, automobiles, grain machinery, textile machinery, engineering machinery, precision accessories, ships, metallurgical equipment, elevators, household appliances, craft gifts, tool processing, decoration, advertising, metal external processing, kitchenware processing, etc.

MORE



Main Feature:

  • Max. laser source 3kw
  • CypCut 3000s cutting system with DSP wireless controller handle
  • Switzerland Raytools autofocus laser cutting head BM110
  • Inovance Servo motor and drivers
  • Taiwan Hiwin linear guide rails
  • Taiwan YYC rack gear
  • Japan Shimpo/ Japan Desbore reducer
  • Industrial water chiller
  • Industrial computer
  • Taiwan AirTAC pneumatic components
  • Automatic lubrication system
  • Working length 6m
  • Diameter : 20-220

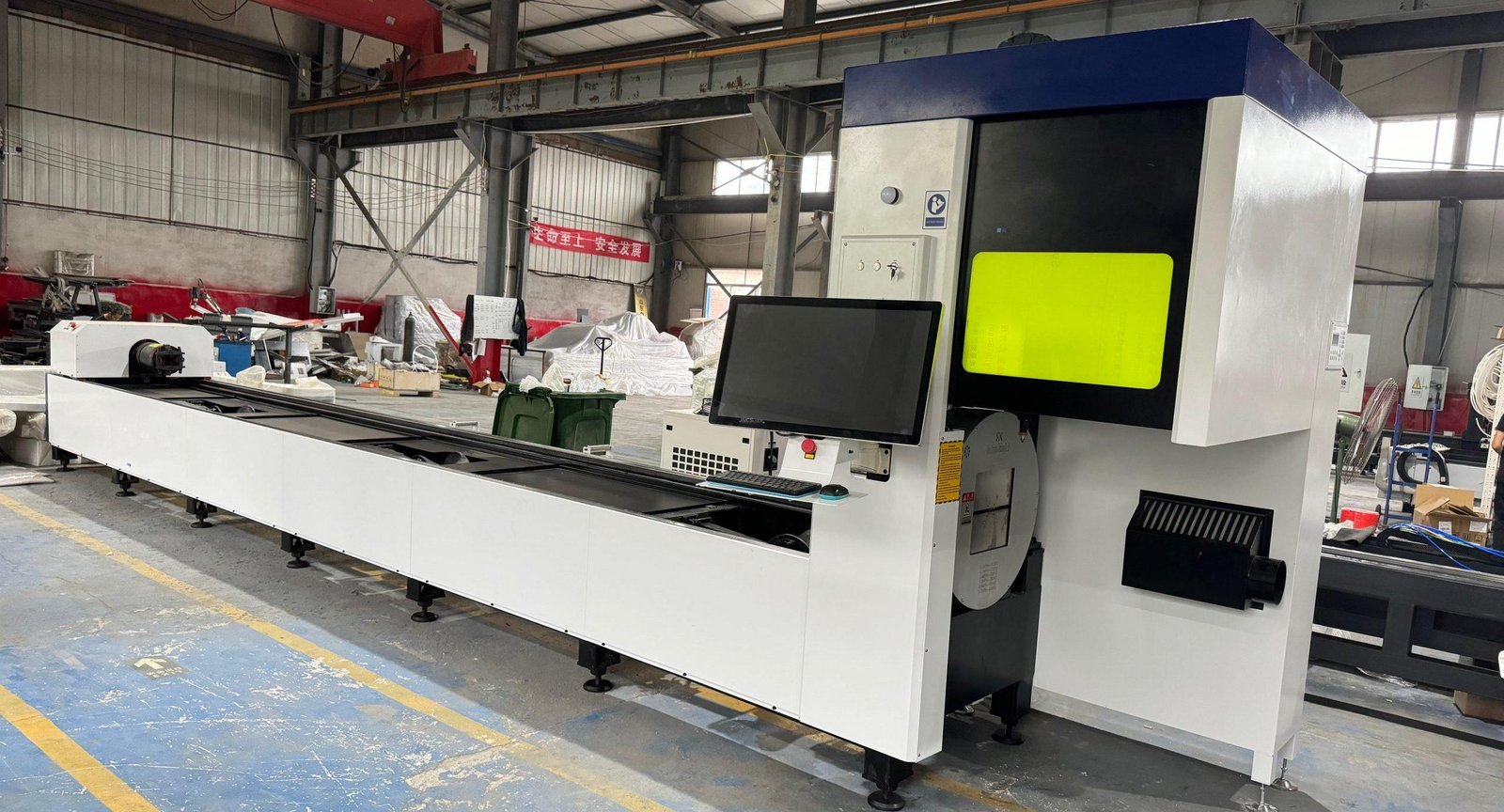

Machine Configurations:

tube pipe fiber laser cutting machine
Pipe and Plate Fiber Laser Cutting Machine
Hot Sale CS1530 Fiber Laser Cutting Machine for Metal Sheet Cutting
Hot Sale CS1530 Fiber Laser Cutting Machine for Metal Sheet Cutting
Hot Sale CS1530 Fiber Laser Cutting Machine for Metal Sheet Cutting

Machine Optional Parts:

Hot Sale 20W 30W 50W 100W Fiber Laser Marking Machine for Metal Marking
Cutting Fixture

It is used for fixing metal sheet when cutting. It will be choosed by 50w 100w big power machine.

Hot Sale 20W 30W 50W 100W Fiber Laser Marking Machine for Metal Marking
The wheel rotary clamp

It is suitable for 5-120mm diamater cylinder. It can bear within 20Kg cylinder.

Hot Sale 20W 30W 50W 100W Fiber Laser Marking Machine for Metal Marking
2D Working Table

It can be moved left and right, Front and back.

Hot Sale 20W 30W 50W 100W Fiber Laser Marking Machine for Metal Marking
Smoke Purifier

Smoke purifier is mainly used for the purification of smoke and dust produced in marking, cutting, and other processes as well as the recovery of rare metals and precious materials

Hot Sale 20W 30W 50W 100W Fiber Laser Marking Machine for Metal Marking
Flat rotate table for marking pen

It can be put 24 pcs pens.

Hot Sale 20W 30W 50W 100W Fiber Laser Marking Machine for Metal Marking
Rotary clamp

Diameter: 80mm

Machine Parameters:

Model

CS220-G6

Working Length

6000mm

Cutting Diameter

φ20-φ220mm

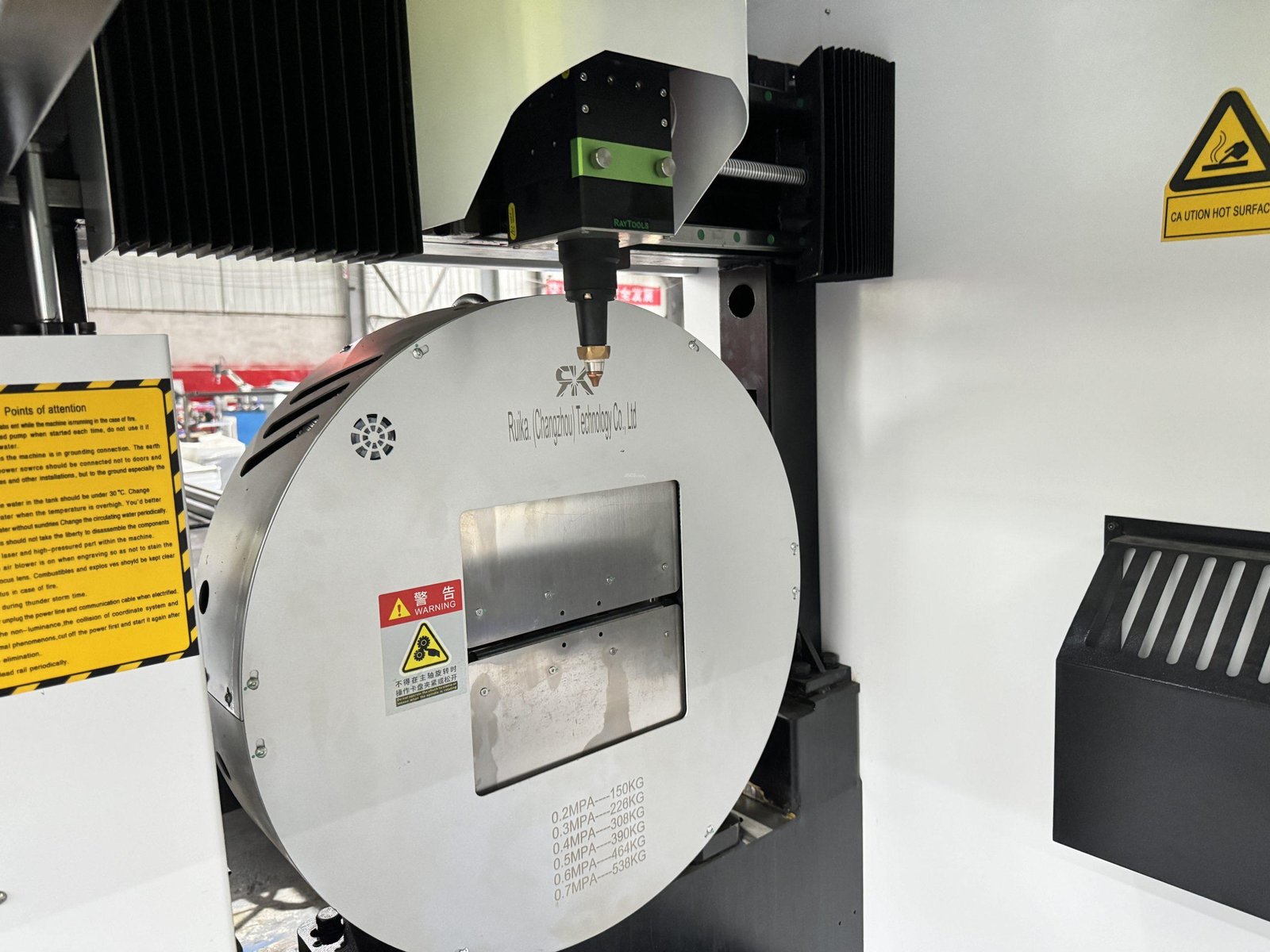

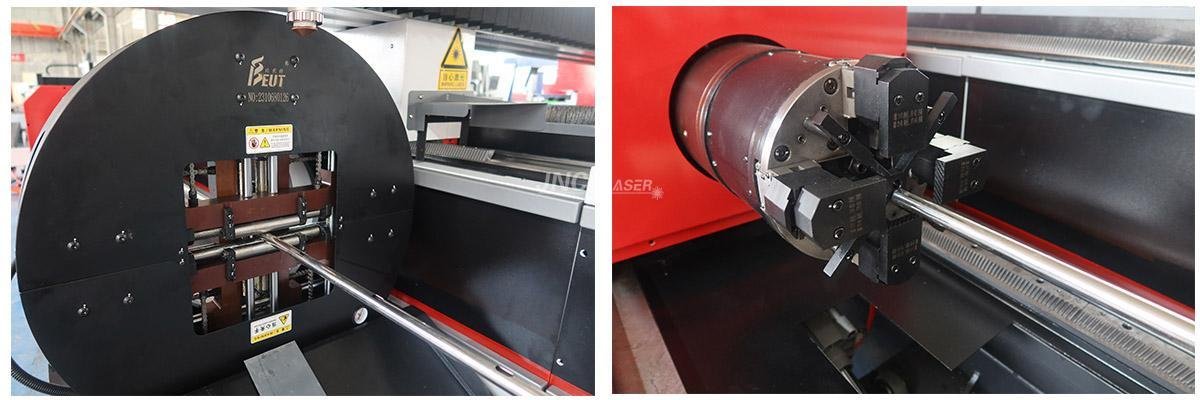

Chuck Quantity

Two (front chuck; rear chuck)

Churk Brand

Beut

Machine structure

 Stable & strong welded bed with high temperature annealing

Beam

Aviation grade tensile cast aluminum beam

Fiber Laser Power

2000W 3000W 4000W 6000W

Fiber Laser Source

China Max

Control System

CypCut 3000S system with DSP wireless controller

Cutting Head

Raytools BM110 auto focus cutting head

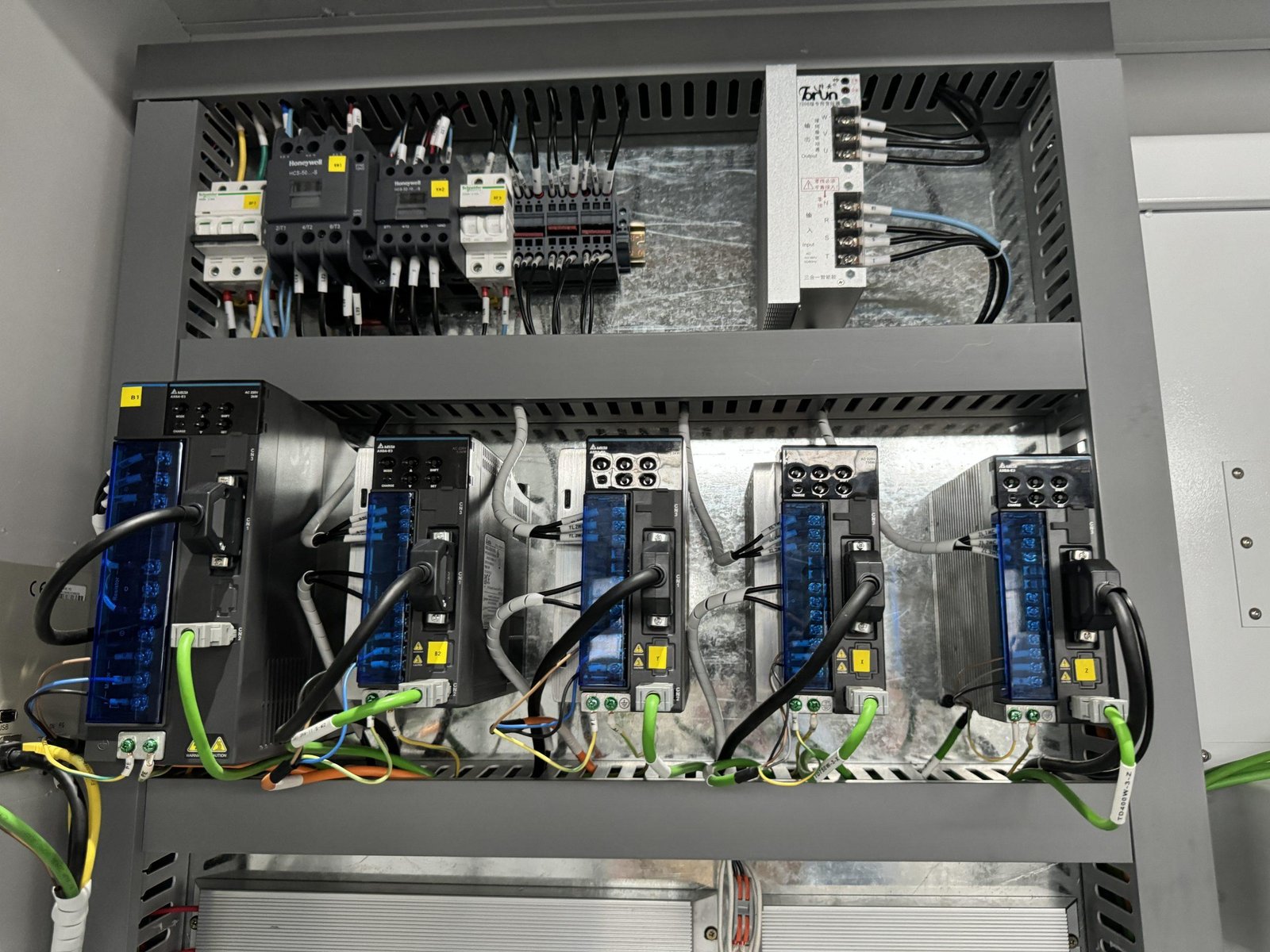

Motor and Drivers

Huichuan servo motor

Liner Guider System

Taiwan Hiwin

Gear Rack

Taiwan YYC

Reducer

Japan Shimpo / Jpan Desbore

Pneumatic Components

Taiwan AirTAC

Electrical Components

USA Honeywell

Water Chiller

China DVT

Proportional valve

Germany Aventics

Lubrication system

Automatic

Computer

Industry computer

Standard Unloading systems

Materials receiving

Pneumatic door

Working Voltage

380v, 3phase, 50hz/60hz (customized)

Table Load Bearing

3500KG

Moving Speed

120m/min

Position Accuracy

±0.05mm

Applicable Fields:

The machine is widely applied in sheet metal processing, aviation, aerospace, electronics, electrical appliances, subway accessories, automobile, machinery, precision parts, ships, metallurgical equipment, elevators, household appliances, craft gifts, tool processing, decoration, advertising, metal processing and other Manufacturing and processing industry.

Applicable Materials:

Fiber Laser Cutting Equipment is suitable for metal cutting with Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring Steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc.

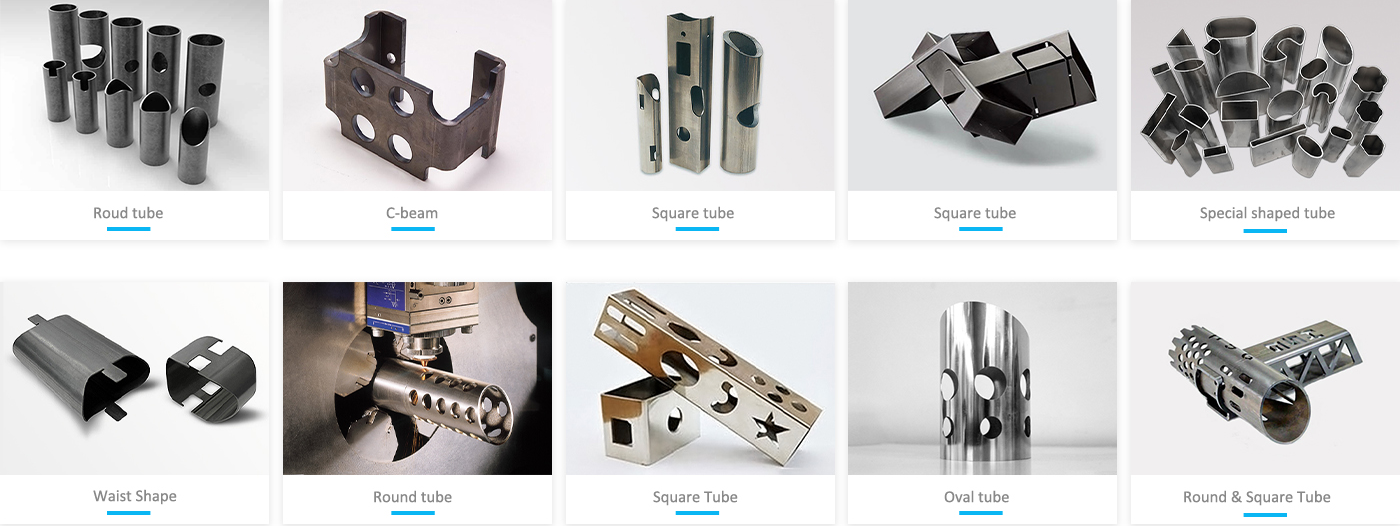

Sample Display:

Professional Tube Pipe Fiber Laser Cutting Machine
Professional Tube Pipe Fiber Laser Cutting Machine
Pipe and Plate Fiber Laser Cutting Machine

Video Tutorials & Instructional Video:

How to Play Order:

  1. Will you please inform us the below information?
  • What material will you cut? stainless steel, carbon steel, aluminum etc?
  • What is your maximum working area? Standard working area 1500X3000mm. It can be customized.
  • What is your maximum cutting thickness for each kind of metal?
  • If you cut round pipe, square tube, please inform us outside diameter and thickness.
  1. We would like to recommend you suitable laser cutting machine accordingly and offer you our best price.
  2. Will you please tell us your nearest sea port? We would like to check freight fee for you.
  3. After you confirm machine model, power, price, freight fee, then please inform us your Consignee Information ( company name, address, contact, phone number ) we will make Proforma Invoice for you to play order.
  4. You can remit the payment according to Proforma Invoice.
  5. Machine will be ready 15-20 working days after your payment.
  6. We will share with you machine photos and videos since machine is ready.
  7. After confiming all is fine, we will book shipment.
  8. We will share with you bill of lading, commercial invoice, packing list after shipment.
  9. You can operate laser cutting machine according to user video and user manual.
  10. If any questions about using, we would like to guide you online.cut
