Customized 3 Axis Automatic Platform Fiber Laser Cutting Machine for Small Tube Cutting
Automatic Platform Fiber Laser Tube Cutting Machine
Max. Fiber Laser source
CatDSP Motion Control System
X 800mm Y300mm Z 300mm traveling size

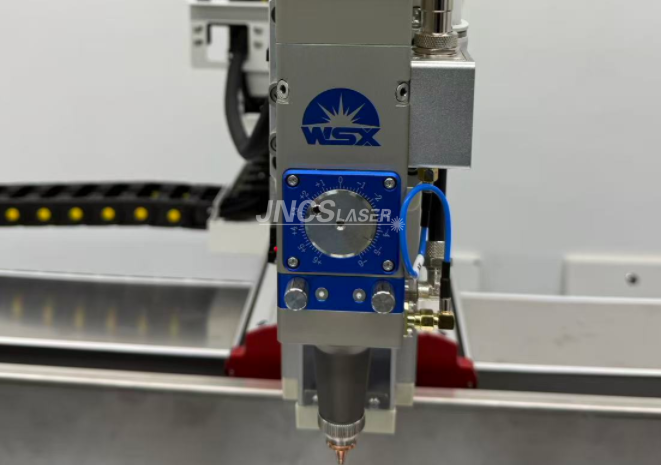

SW21 3D cutting head
HCFA servo motor
Industrial water chiller
Main Feature:
This automatic platform fiber laser cutting machine is specially developed for small-diameter metal tubes.
Equipped with three-axis automatic worktable, super large worktable, platform XY dual-axis electric module, Z-axis adopts power-off brake motor, and can be equipped with rotating shaft when it is time. For special-shaped three-dimensional products.
The control system is a professional four-axis control system tailored for laser cuttinging. It has powerful PC control and is easy to program,debug and maintain. It can complete automatic or semi-automatic cutting, the system is simple and reliable to operate, easy to control, simple to operate, easy to learn, easy to understand and easy to use for users;
Machine Configurations:
Adopting famous brands (Raycus / JPT/Max. And Germany IPG)
S&A water chiller, it can meet with requirements for a long time, high power cutting is more stable.
It is height adjuster, it is used for cutting.
CatDSP is a motion control software based on object-oriented programming technology, and developed with top-down procedure, which is designed for laser machining equipment
laser power, emergency switch, allow light, PC
It is professional for cutting. It is 3D cutting head. Brand: WSX Model: SW21 Optional Brand: Raytool
Machine Parameters:
Machine Name | Automatic Platform Fiber Laser Cutting Machine |
Laser Power | 1.5KW 2KW 3KW |
X Y Z Traveling Size | 800X300X300mm |
Laser type | fiber-optic laser |
Laser Wave Length | 1080nm ±5nm |
Sport mode | Continuous/modulation |
Adjust frequency | 1000HZ |
Focus range | 150-250mm Optional |
Fiber core diameter | 50-100um |
Laser Source | Raycus / Max |
Spectroscopic method | Precision energy spectroscopy or high-speed time spectroscopy |
Fiber Length | 10M |
Cooling Mode | Water cooling |
Cooling power of chiller | S&A |
Working Voltage | AC220V / 50Hz / 60HZ AC380V / 50Hz / 60HZ |
Package Size | 139*139*190cm 419kg machine 80*65*117cm 98kg chiller |
Gross Weight | Machine: 419kg Chiller: 98kG |
Cuttin
Video Tutorials & Instructional Video:
Sample Display:
Machine Application:
How to Play Order:
- Will you please inform us the below information?
- What material will you cutting? Stainless steel, iron, carbon steel, aluminum, galanized sheet?
- What is welding thickness, Length, diameter for metal?
- We would like to recommend you suitable laser welding power 1kw 1.5kw 2kw accordingly and offer you our best price.
- Will you ship machine by sea, by air? So, please tell us your nearest sea por, air port. We would like to check freight fee for you.
- After you confirm machine model, power, price, freight fee, then please inform us your consignee information ( company name, address, contact, phone number ) we will make Proforma Invoice for you to play order.
- You can remit the payment according to Proforma Invoice.
- Machine will be ready 10-12 working days after your payment.
- We will share with you machine photos and videos since machine is ready.
- After confiming all is fine, we will book shipment.
- We will share with you bill of lading, commercial invoice, packing list after shipment.
- You can operate laser machine according to user video and user manual.
- If any questions about using, we would like to guide you onli
