High Speed 3kw Fiber Laser Cleaning Machine for rust paint cleaning
Continuous Fiber Laser Cleaning Machine
Rating：
laser cleaning machine is the new generation of safe, high efficiency, energy saving, environment-friendly metal laser cleaning equipment, using handheld swing cleaning head, touch screen and button control, combined with the advanced integrated control system, the precision CNC fiber laser cleaning machine is assembled. It meets the cleaning requirements of complex shapes and fine positioning in the industrial processing field, and achieves higher cleanliness cleaning effects and lower overall cost production benefits.
Main Feature:
1. Accurate laser cleaning for exact position and precise size.
2. Widely applied in flat,curved and three-dimensional surface for work piece of elastic material and plastic with very small and deep holes.
3. Flexible operation for work pieces with complicated geometric construction can be realized by mechanized or hand-held laser cleaning head.
4. No maintenance and no consumables,dust-free,no chemicals,no pollution.
5. Non-contact cleaning and no damage for substrate Extremely.
6. Low cleaning cost and High cleaning efficiency.
Single Wobble Maximum Cleaning Width: 200mm
Machine Configurations:

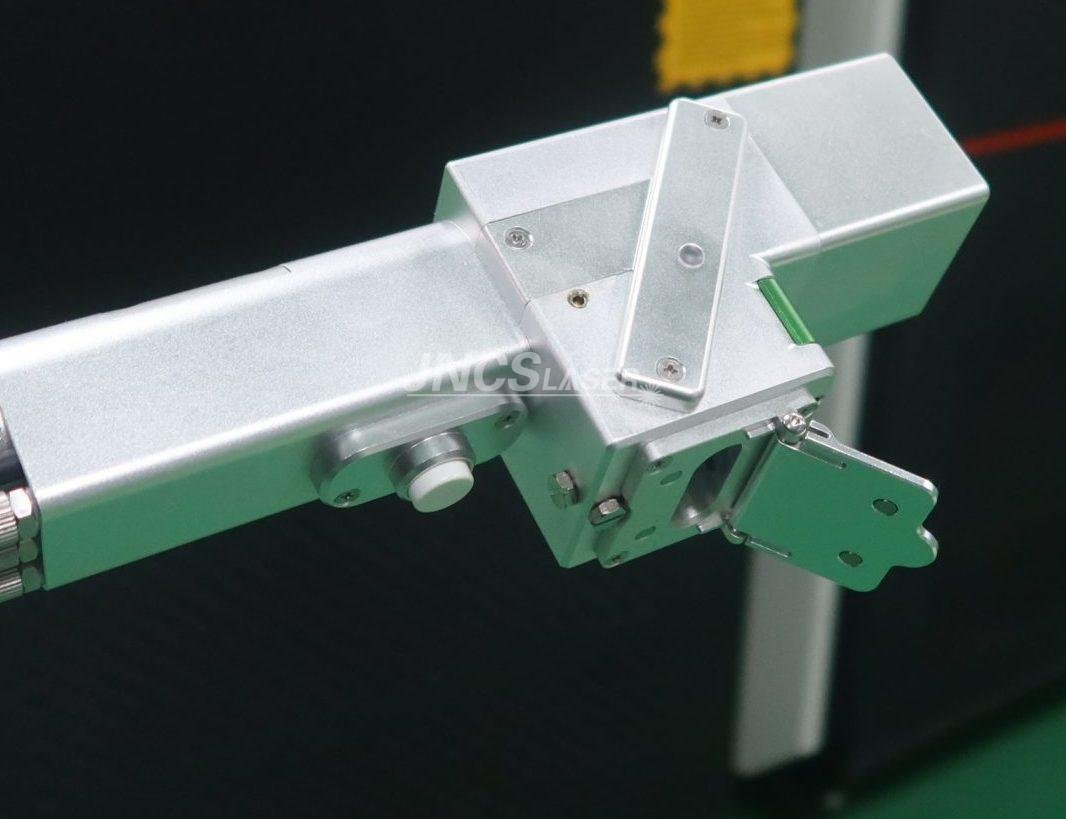

Light shape, economic deign, High speed digital motor swing design cleaning width: 200mm

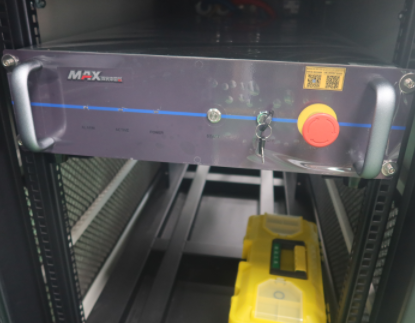

Adopting famous brands (Raycus /Max. And Germany IPG) the photoelectric conversion rate is greatly improved, laser power is enhanced, has better welding effect, can according to the needs of customers with different configurations to meet customer needs.

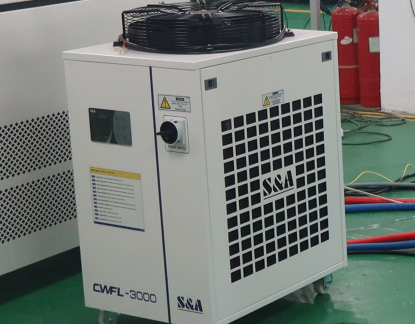

One of the biggest convenience of the machine is the inside water chiller. It saves a lot of the machine's dimension.It is constant temperature industrial type.
Machine Parameters:
Machine Name | Handheld Continuous Fiber Laser Cleaning Machine |
Laser Power | 3kw |
Laser Wave Length | 1080nm |
Laser Source | Raycus / JPT / IPG |
Fiber Length | 10M |
Cooling Mode | Water cooling |
Application | Rust cleaning, Surface Paint Cleaning |
Cleaning Width | 50MM |
Whether anti-high reflection | Yes |
leaning Materials | Metal Rust Oil Dust Coating |
Working Voltage | AC380V 50Hz/60Hz |
Package Size | Machine: 172*77*145 cm Water chiller: 82*57*109.5cm |
Gross Weight | 398KG |
Video Tutorials & Instructional Video:
Sample Display:
Machine Application:
Handheld laser cleaning machine uses high-frequency and high-energy laser pulses to irradiate the surface of the workpiece, so that the surface oil, rust or coating evaporates or peels instantly, and effectively removes thesurface attachment or surface coating of the cleaning object at a high speed, so as to achieve the cleaning of the object. It is characterized by no damage to the part matrix, no consumables, energy saving and environmental protection.
How To Play Order
- 1. Will you please tell us the below information? What material will you clean? Rust or Paint?
- 2. We will recommend you suitable power machine and offer you our best price.
- 3. If all is ok, please tell us your consignee information (company name, address, contact, phone number ), we will make Proforma Invoice for you to play order.
- 4. We will arrange machine production after you remit the payment.
- 5. We will share with you machine photos and videos after machine ready.
- 6. After you confirming, then we will arrange machine shipment.
- 7. You can operate machine according to user video and manual.
- 8. If any questions about laser cleaning operating, then we can guide you online.
