Trunk or Suitcase 100W 200W Pulsed Fiber Laser Cleaning Machine

Pulsed Fiber Laser Cleaning Machine for Rust Paint Removing

Rating:

Laser cleaning is a new technology based on the interaction of laser and material, which can achieve the effect of removing surface pollution and attachment. Compared with traditional cleaning methods, laser cleaning has the advantages of non-contact, no damage to the substrate, accurate cleaning ,” green “environmental protection and on-line, especially suitable for high-speed on-line cleaning in designated areas.

MORE



Main Feature:

  • non-contact cleaning without damaging the matrix of the parts;

  • accurate cleaning, can achieve precise position, accurate size selective cleaning;

  • do   not   need   any   chemical   cleaning   liquid,   no   consumables,   safety   and environmental protection;

  • simple operation, hand-held or with the manipulator to achieve automatic cleaning;

  • ergonomics design, operating labor intensity greatly reduced;

  • trolley design, with its own moving wheel, easy to move; High ◎ cleaning efficiency, save time;

  • laser cleaning system is stable with little maintenance;

.

Machine Configurations:

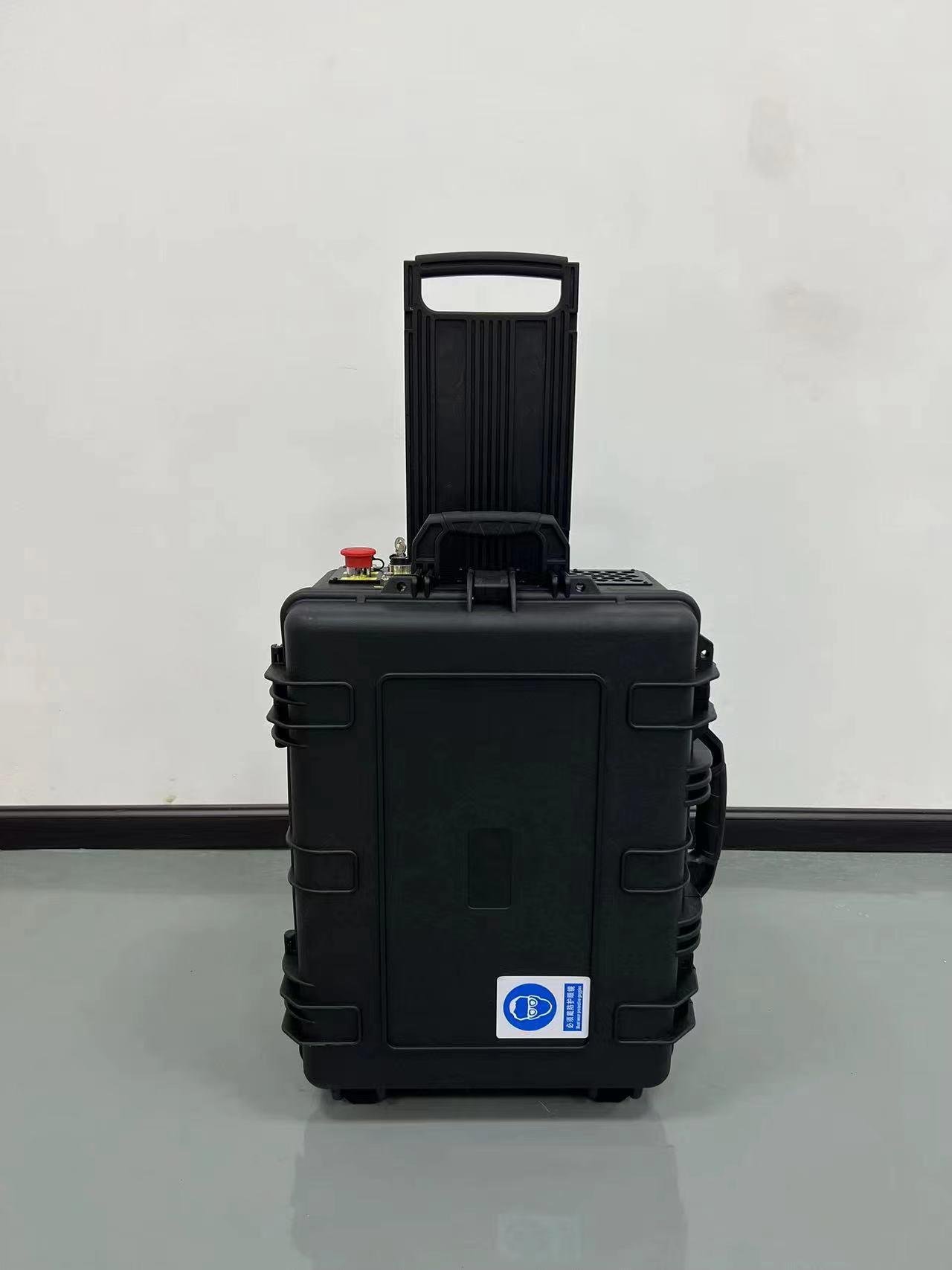

Trunk 100W 200W Pulsed Fiber Laser Cleaning Machine

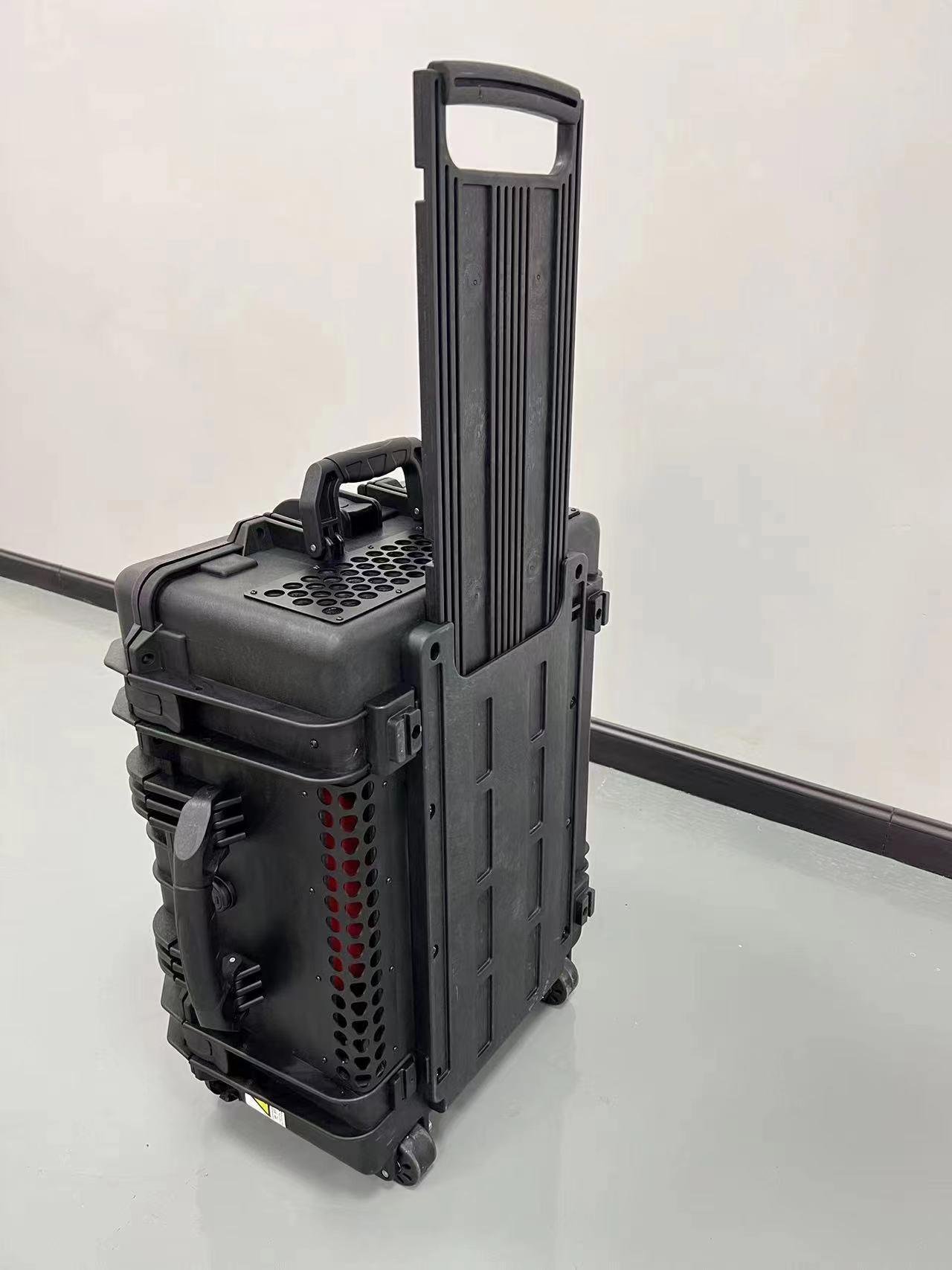

Trunk 100W 200W Pulsed Fiber Laser Cleaning Machine

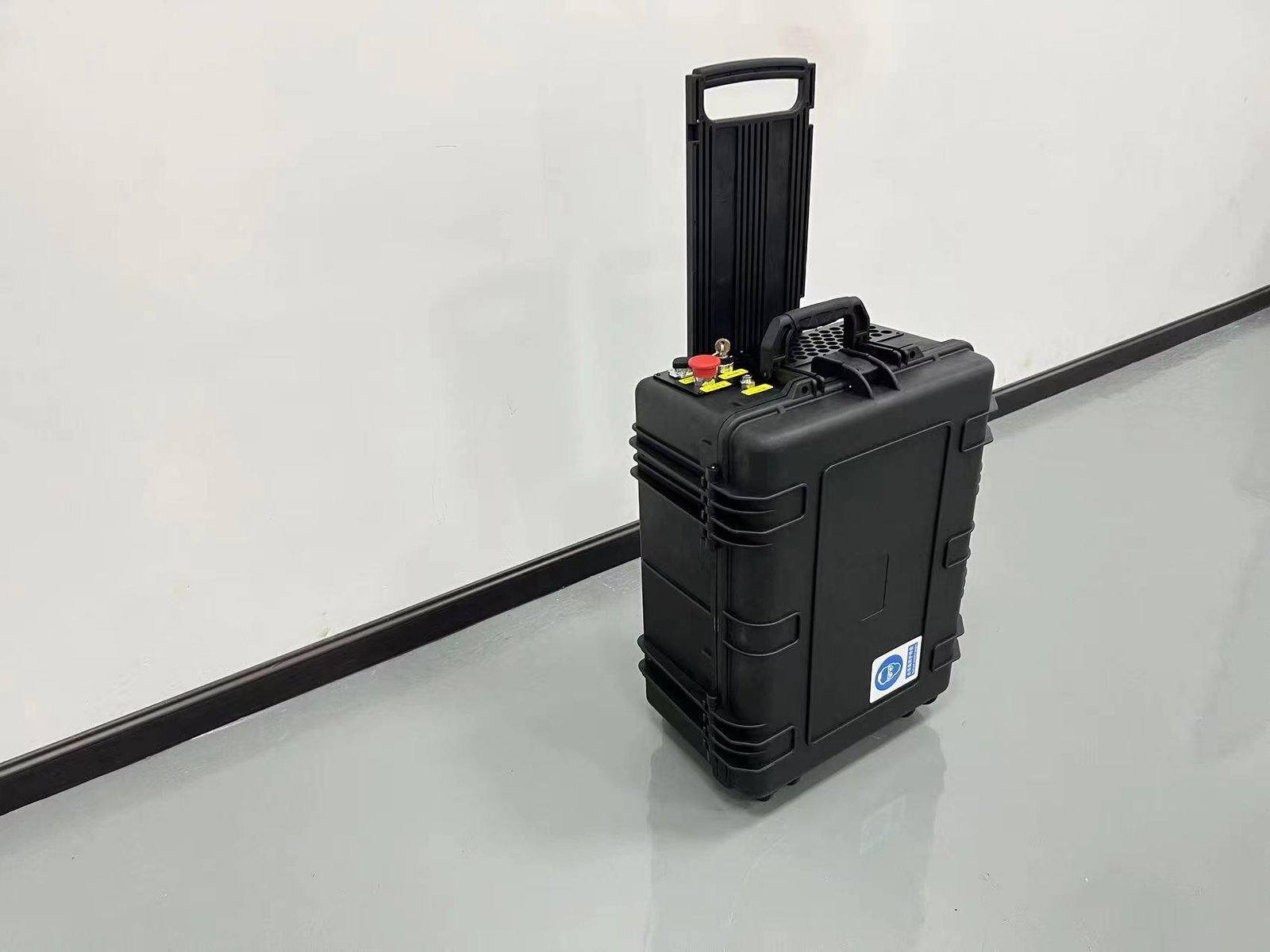

Trunk 100W 200W Pulsed Fiber Laser Cleaning Machine

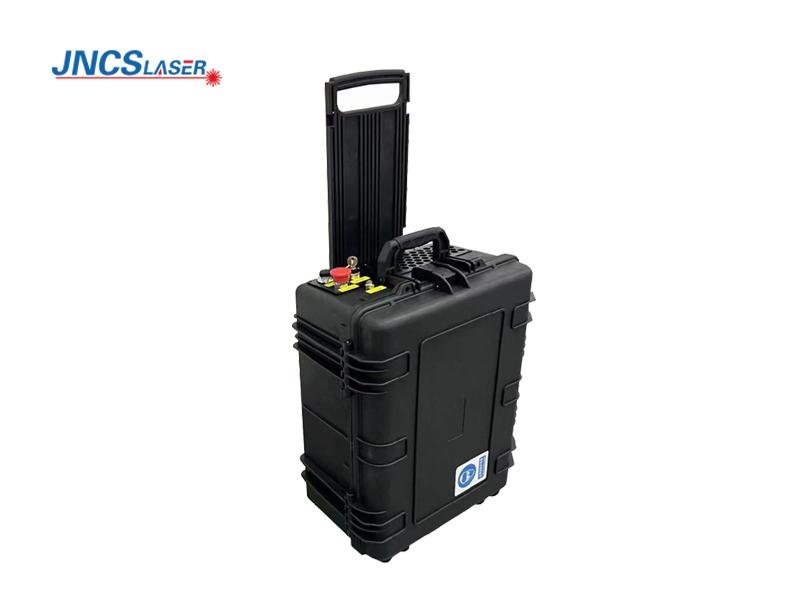

Trunk 100W 200W Pulsed Fiber Laser Cleaning Machine

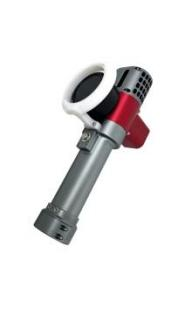

Trunk 100W 200W Pulsed Fiber Laser Cleaning Machine

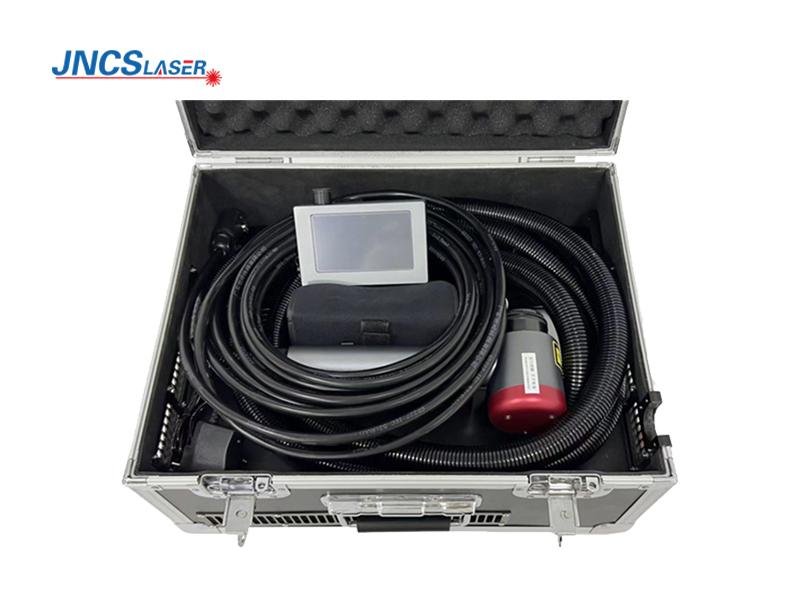

suitcase pulsed fiber laser cleaning machine
100W Backpack Pulsed Fiber Laser Cleaning Machine
100W Backpack Pulsed Fiber Laser Cleaning Machine

Machine Parameters:

Operating environment

Content

CS-FLC100SL

Supply voltage

Single phase220V± 10% 、50/60Hz AC

Power consumption

≤800W

Working environment temperature

5℃~40℃

Working environment humidity

≤80%

Optical parameters

Average laser power

≥ 100W

Power instability

<5%

Laser Working Mode

Pulse

Pulse width

10-500ns

Maximum monopulse

energy

1.5mJ

Power regulation range (%)

0- 100( Gradient Adjustable)

Repeat frequency  (kHz)

1-3000  (Gradient Adjustable )

Fiber length

5m

Cooling mode

Air cooling

Cleaning Head Parameters

Scan range (length * width)

0mm- 100mm, continuously adjustable;

supporting 8 scanning modes

Scanning frequency

The maximum is not less than 300Hz

Field mirror focal length

(mm)

160mm  ( Optional 210mm/254mm/330mm/420mm)

Depth of focus

About 5 mm

Mechanical parameters

Machine size  (Length, width and height)

About 617mm*469mm*291mm

Size after packing  (Length, width and height)

About 950mm*580mm*500mm

Machine Weight

About 40Kg



Weight after packing

About 60Kg

Cleaning head weight

<0.9Kg

Mode of operation

Handheld

Sample Display:

Machine Application:

Handheld laser cleaning machine uses high-frequency and high-energy laser pulses to irradiate the surface of the workpiece, so that the surface oil, rust or coating evaporates or peels instantly, and effectively removes thesurface attachment or surface coating of the cleaning object at a high speed, so as to achieve the cleaning of the object. It is characterized by no damage to the part matrix, no consumables, energy saving and environmental protection.



fiber laser cleaning machine for rust oil paint

Video Tutorials & Instructional Video:

How to Play Order:

  1. Will you please inform us the below information?

What material will you clean? Rust, paint, oil?

  1. We would like to recommend you suitable laser cleaning power 200w 300w 500w accordingly and offer you our best price.
  2. Will you ship machine by sea, by air? So, please tell us your nearest sea por, air port. We would like to check freight fee for you.
  3. After you confirm machine model, power, price, freight fee, then please inform us your consignee information ( company name, address, contact, phone number ) we will make Proforma Invoicefor you to play order.
  4. You can remit the payment according to Proforma Invoice.
  5. Machine will be ready 10-12 working days after your payment.
  6. We will share with you machine photos and videos since machine is ready.
  7. After confiming all is fine, we will book shipment.
  8. We will share with you bill of lading, commercial invoice, packing list after shipment.
  9. You can operate laser welding machine according to user video and user manual.
  10. If any questions about using, we would like to guide you online.
