Fiber Laser Welding Machine with 6 Axis Industrial Robotic Arm
Fiber Laser Welding Machine with Robot
Rating：
Laser welding is a new type of welding method and one of the important aspects of the application of laser material processing technology. Laser welding is mainly for the welding of thin-walled materials and precision parts. The welding process is of thermal conductivity type, that is, the surface of the workpiece is heated by laser radiation,
Main Feature:
- Automotive industry: body parts, chassis, exhaust pipes, door frames
- Hardware & kitchenware: stainless steel products, sinks, sanitary ware
- Sheet metal processing: cabinets, panels, structural parts
- New energy: battery packs, busbars, energy storage shells

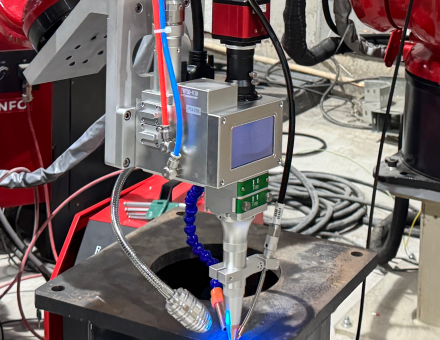

- 6-axis industrial robot, flexible and multi-angle welding
- Large working range, suitable for complex workpieces
- High automation, 24-hour continuous production
- High repeat accuracy, stable mass production
- Compatible with vision positioning & automatic feeding system
- Greatly improve efficiency and reduce labor cost
Machine Configurations:

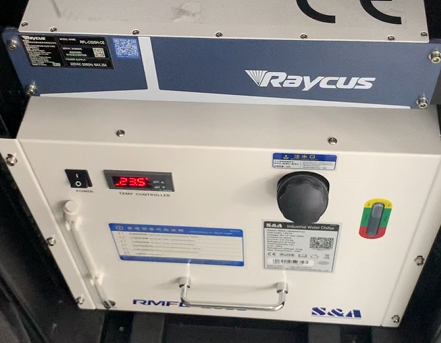

- Fiber Laser source: Adopting famous brands (Raycus / Max. ) the photoelectric conversion rate is greatly improved, laser power is enhanced, has better welding effect, can according to the needs of customers with different configurations to meet customer needs.
- Industrial Water chiller: One of the biggest convenience of the machine is the inside water chiller. It saves a lot of the machine’s dimension.It is constant temperature industrial type.
Machine Parameters:
|
Machine Name |
Handheld Fiber Laser Welding Machine |
|
Model |
CS-FLW1500 CS-FLW2000 CS-FLW3000 |
|
Laser Power |
1.5KW 2KW 3KW |
|
Laser Wave Length |
1080nm |
|
Laser Source |
Raycus /Max. / JPT / IPG |
|
Fiber Length |
10M |
|
Cooling Mode |
Water cooling |
|
Laser Pulse Frequency |
1-20HZ |
|
Pulse Width |
0.1-20ms |
|
Adjusted spot range |
0.1-5mm |
|
Minimum Welding pool |
0.1mm |
|
Gas source |
0.2Mpa (Argon ) |
|
Working Voltage |
1kw 1.5kw 2kw AC220V/ 50Hz / 60HZ 3kw AC380V/ 50Hz / 60HZ |
|
Package Size |
162CM L *70CM W*144CM H |
|
Gross Weight |
320KG |
|
Handheld Fiber Laser Welding Machine Welding Ability for reference |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Tutorials & Instructional Video:
Sample Display:
Machine Application:
- Laser welding of sheet metal, chassis and water tank.
- All kinds of hardware and lighting laser welding machine
- Laser welding of door and window frames
- Laser sealing welding of kitchen, bathroom and wash basin hardware
- Laser welding of billboards and advertising characters Suitable for most metals such as stainless steel, titanium, water-plated plate, iron sheet, aluminum copper and other materials.
How to Play Order:
- Will you please inform us the below information?
- What material will you weld? Stainless steel, iron, carbon steel, aluminum, galanized sheet?
- What is welding thickness for each kind of metal?
- We would like to recommend you suitable laser welding power 1kw 1.5kw 2kw accordingly and offer you our best price.
- Will you ship machine by sea, by air? So, please tell us your nearest sea por, air port. We would like to check freight fee for you.
- After you confirm machine model, power, price, freight fee, then please inform us your consignee information ( company name, address, contact, phone number ) we will make Proforma Invoice for you to play order.
- You can remit the payment according to Proforma Invoice.
- Machine will be ready 10-12 working days after your payment.
- We will share with you machine photos and videos since machine is ready.
- After confiming all is fine, we will book shipment.
- We will share with you bill of lading, commercial invoice, packing list after shipment.
- You can operate laser welding machine according to user video and user manual.
- If any questions about using, we would like to guide you online.
