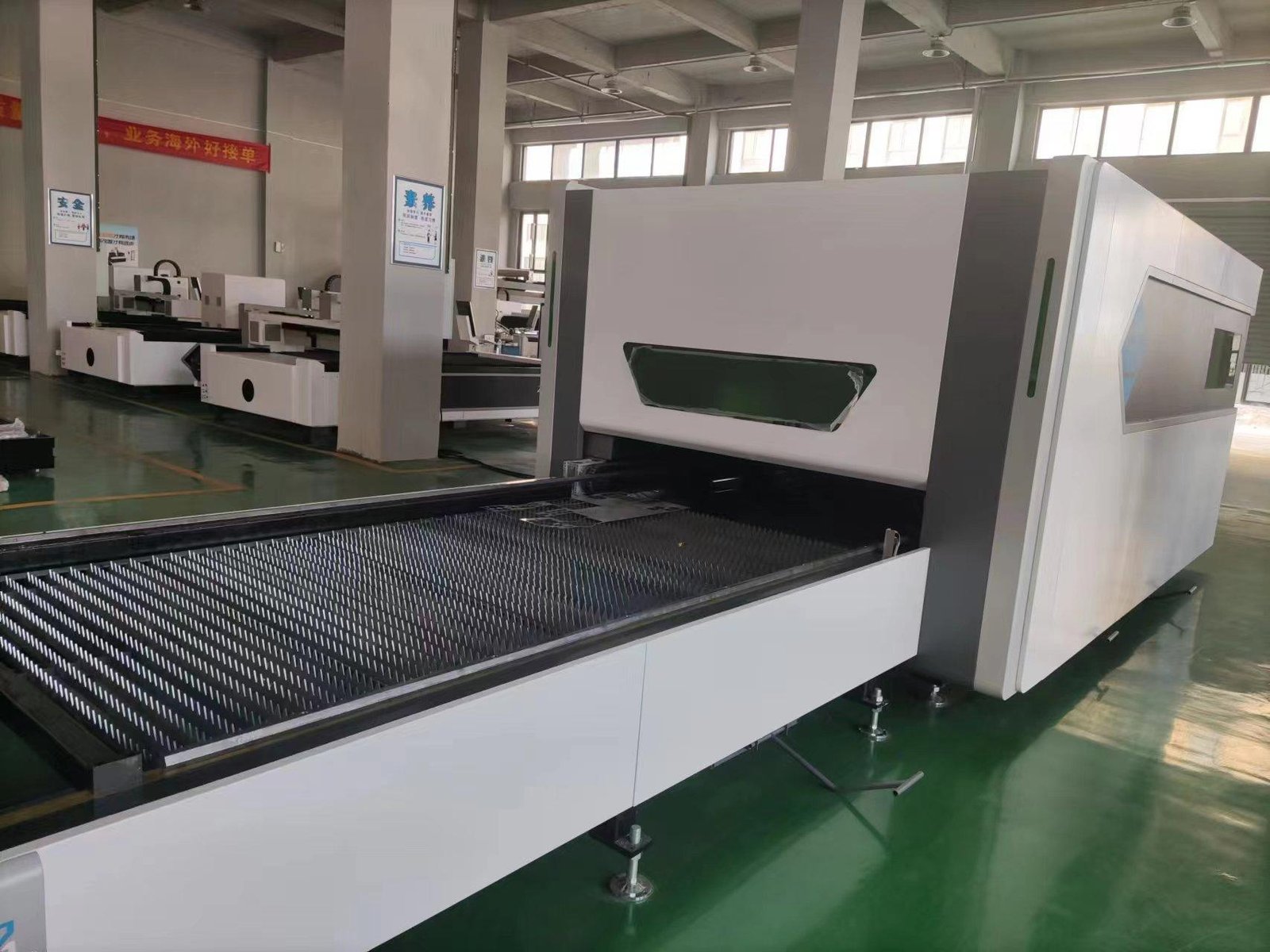

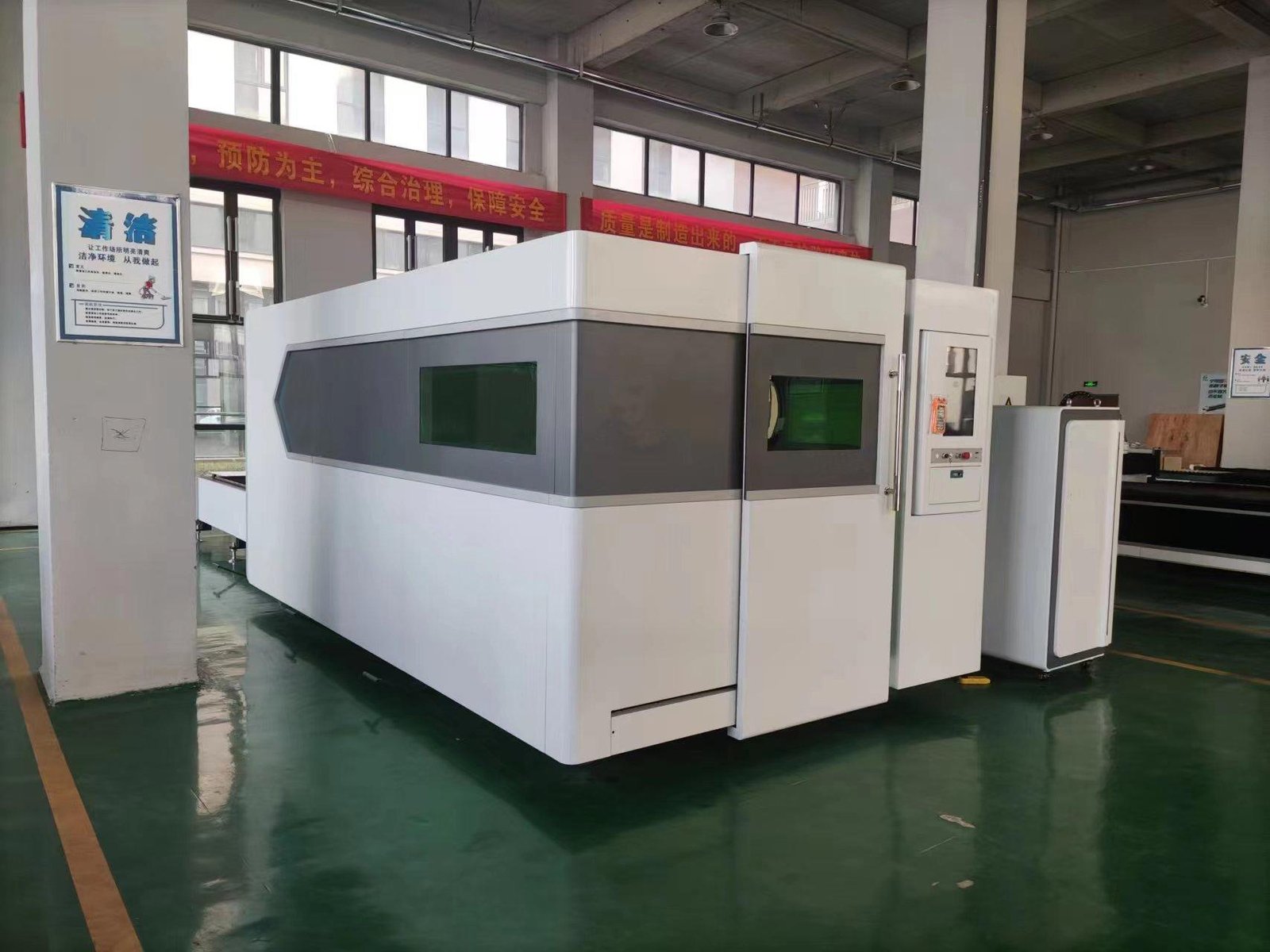

Enclosure Fiber Laser Cutting Machine with Exchange Table

Fiber Laser Cutting Machine

Fiber Laser Cutting Machine can be applied to various industries, such as sheet metal processing, aviation, electrical appliances, subway accessories, automobiles, grain machinery, textile machinery, engineering machinery, precision accessories, ships, metallurgical equipment, elevators, household appliances, craft gifts, tool processing, decoration, advertising, metal external processing, kitchenware processing, etc.

MORE

Main Feature:

  1. Cutting size: 3000mm×1500mm (5*10ft)
  2. Max laser source 1.5kw 2kw 3kw  6kw
  3. Enclosure Type
  4. Exchange Table
  5. CypCut 2000c cutting system with DSP wireless controller handle
  6. Ospri laser cutting head
  7. Japan Fuji servo motor and drivers 850w
  8. Motor & drivers power: X-axis 850w;Y-axis 850w;Z-axis 400w
  9. Taiwan Hiwin linear guide rails 30mm
  10. Guide width: ( X axis : 25mm;Y axis : 30mm ; Z axis : 20mm )
  11. Taiwan YYC rack gear
  12. Japan Shimpo/ Japan Desbore reducer
  13. Industrial water chiller
  14. Oxygen proportional valve
  15. USA Honeywell electrical components
  16. Industrial computer
  17. Taiwan AirTAC pneumatic components
  18. Automatic lubrication system
  19. Big thickness stable & strong welded steel bed Aviation stretched aluminum gantry

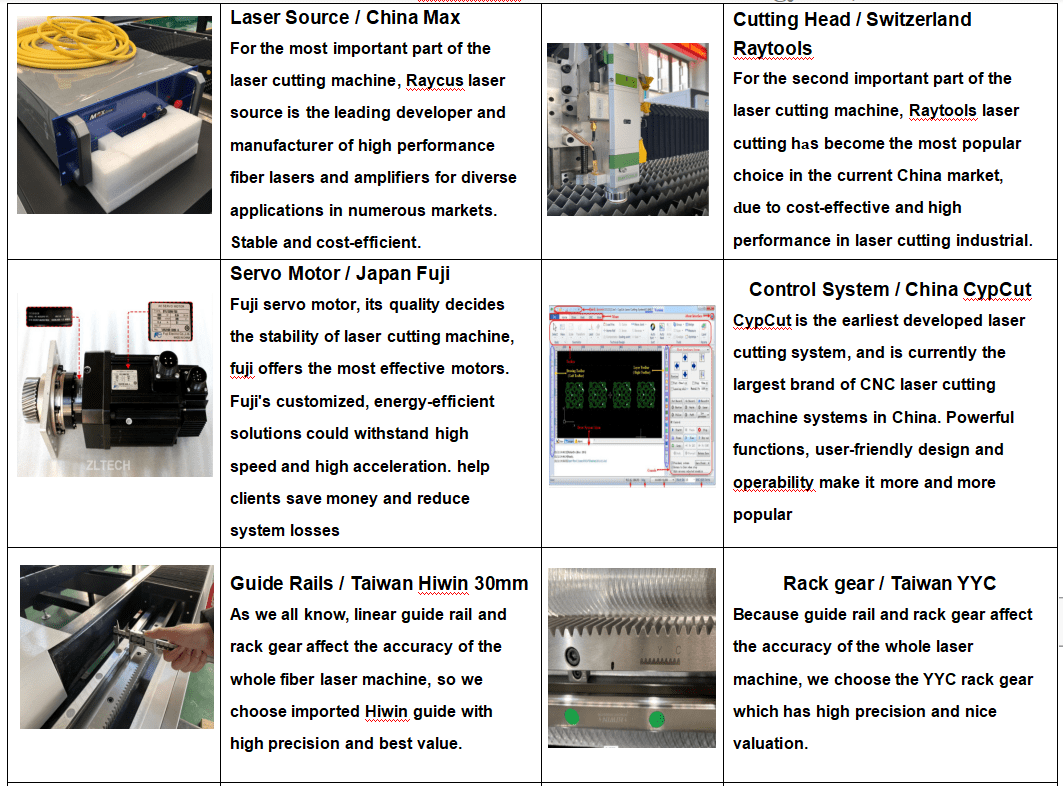

Machine Configurations:

Machine Optional Parts:

Cutting Fixture

It is used for fixing metal sheet when cutting. It will be choosed by 50w 100w big power machine.

The wheel rotary clamp

It is suitable for 5-120mm diamater cylinder. It can bear within 20Kg cylinder.

2D Working Table

It can be moved left and right, Front and back.

Smoke Purifier

Smoke purifier is mainly used for the purification of smoke and dust produced in marking, cutting, and other processes as well as the recovery of rare metals and precious materials

Flat rotate table for marking pen

It can be put 24 pcs pens.

Rotary clamp

Diameter: 80mm

Machine Parameters:

Brand

JNCSLASER

Model

CS1530

Cutting area

3000×1500mm (size can bed customized)

Fiber laser power

1000W 1500W 2000W 3000W 6000W

Fiber laser generator brand

Max

Laser wavelength

1,070-1,080mm

Interface

USB,RJ45

Moving speed

120m/min

Max Cutting speed

50m/min

Position accuracy

±0.05mm

Repeatability accuracy

±0.03mm

Power supply requirement

1 phase 220v / 3 phase 380v 50HZ / 60HZ (customized)

Max acceleration

1.0G

Table load bearing

1500KG

Compatible software

CorelDraw / AutoCAD / Photoshop / AI

Brand of motor and drivers

 Japan Fuji;

Power of motor and drivers

X=850W; Y=850W; Z=400W

Support graphic format

LXD / DXF / PLT / AI / Gerber / DWG

Transmit system

Dual Rack & Pinion type

Control system and software

CypCut 2000c

Cutting head

Raytools autofocus BM110

Reducer

Japan Desbore

Liner guider system

Taiwan Hiwin

Gear rack

Taiwan YYC

Electrical components

USA Honeywell

Water chiller

DVT brand

Processing material

Stainless Steel / Carbon Steel/ Galvanized steel / Aluminum / Copper/ Iron, etc

Gross weight

2800KG

Packing size

4550*2250*1550mm

Applicable Fields:

The machine is widely applied in sheet metal processing, aviation, aerospace, electronics, electrical appliances, subway accessories, automobile, machinery, precision parts, ships, metallurgical equipment, elevators, household appliances, craft gifts, tool processing, decoration, advertising, metal processing and other Manufacturing and processing industry.

Applicable Materials:

Fiber Laser Cutting Equipment is suitable for metal cutting with Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring Steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc.

Sample Display:

Video Tutorials & Instructional Video:

How to Play Order:

  1. Will you please inform us the below information?
  • What material will you cut? stainless steel, carbon steel, aluminum etc?
  • What is your maximum working area? Standard working area 1500X3000mm. It can be customized.
  • What is your maximum cutting thickness for each kind of metal?
  • If you cut round pipe, square tube, please inform us outside diameter and thickness.
  1. We would like to recommend you suitable laser cutting machine accordingly and offer you our best price.
  2. Will you please tell us your nearest sea port? We would like to check freight fee for you.
  3. After you confirm machine model, power, price, freight fee, then please inform us your Consignee Information ( company name, address, contact, phone number ) we will make Proforma Invoice for you to play order.
  4. You can remit the payment according to Proforma Invoice.
  5. Machine will be ready 15-20 working days after your payment.
  6. We will share with you machine photos and videos since machine is ready.
  7. After confiming all is fine, we will book shipment.
  8. We will share with you bill of lading, commercial invoice, packing list after shipment.
  9. You can operate laser cutting machine according to user video and user manual.
  10. If any questions about using, we would like to guide you online.cut
