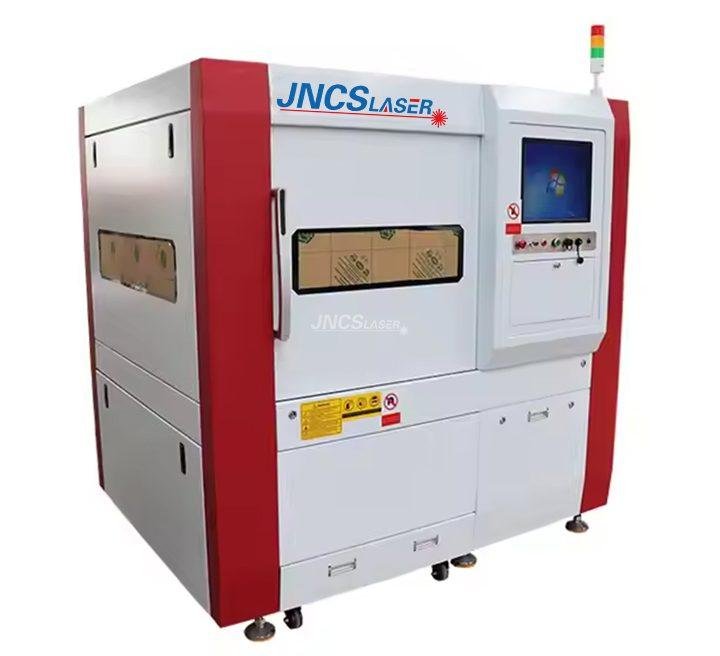

CS6060 600X600mm Small High Precision Fiber Laser Cutting Machine with Enclosure Cabinet
High Precision Fiber Laser Cutting Machine
The small enclosed fiber laser cutting machine CS6060 is a compact, precision laser cutting system designed for cutting various materials like metals (stainless steel, carbon steel, aluminum) and some non-metal materials, depending on the machine’s configuration. The term “9060” refers to the working area dimensions of 600 mm x 600 mm, making it suitable for small to medium-sized cutting tasks, it can be customzed such as CS9060 900*600mm CS1390 1300*900mm.
Main Feature:
- 600 mm x 600 mm (6060): Compact size is ideal for precision cutting of small parts, signs, jewelry, and prototypes.
- The machine is typically enclosed for safety, preventing laser exposure to operators and controlling fumes and debris during the cutting process.
- Reduces noise and minimizes exposure to harmful particles.
- Ideal for small workshops, hobbyists, or businesses with limited space but high precision cutting requirements.
- Fiber lasers have a long operational life, often over 100,000 hours, with minimal maintenance required.
- Auto-Focus Laser Head: Automatically adjusts the focal length for different material thicknesses, ensuring optimal cutting quality without manual intervention.
Machine Configurations:
high machining accuracy, stable and durable

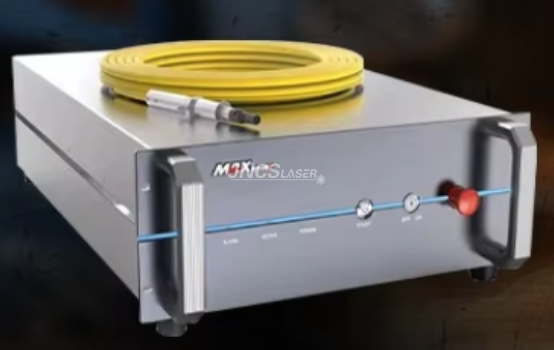

professional fiber laser cutting laser source, high-quality laser beam
National Brand : HCFA Optional : Japan Fuji

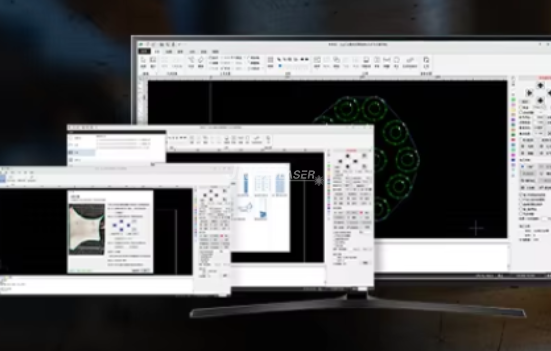

Optional: Raytool controller and software
high precision, stable operation,
Double temperature control, high efficiency, and environmental protection
Machine Optional Parts:
It is used for fixing metal sheet when cutting. It will be choosed by 50w 100w big power machine.
It is suitable for 5-120mm diamater cylinder. It can bear within 20Kg cylinder.
It can be moved left and right, Front and back.
Smoke purifier is mainly used for the purification of smoke and dust produced in marking, cutting, and other processes as well as the recovery of rare metals and precious materials
It can be put 24 pcs pens.
Diameter: 80mm
Machine Parameters:
Brand | JNCSLASER |
Model | CS6060 |
Cutting area | 600×600mm (size can bed customized) |
Fiber laser power | 1500W 2000W 3000w |
Fiber laser generator brand | Max |
Laser wavelength | 1,070 |
Interface | USB,RJ45 |
Max. Location speed | 60m/min |
Max Cutting speed | 30-50 Meters / Min (up to materials) |
Position accuracy | ±0.03mm |
Repeatability accuracy | ±0.02mm |
Power supply requirement | 1 phase 220V / 3 phase 380v 50HZ / 60HZ (customized) |
Max acceleration | 0.8G |
Compatible software | CorelDraw / AutoCAD / Photoshop / AI |

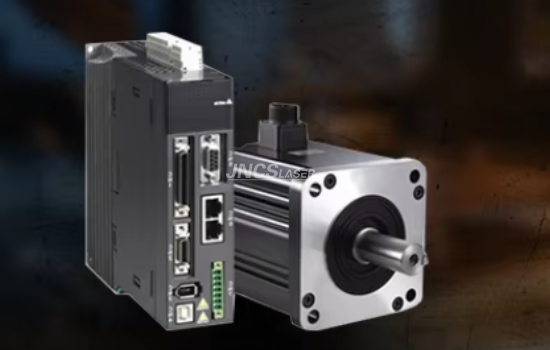

Brand of motor and drivers | Delta Servo motor and driver |
Support graphic format | LXD / DXF / PLT / AI / Gerber / DWG |
Transmit system | Dual Rack & Pinion type |
Control system and software | Raytool optional |

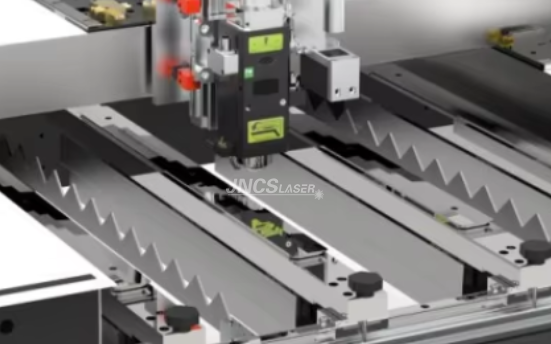

Cutting head | Raytools autofocus BM110 |
Liner guider system | Taiwan Hiwin |

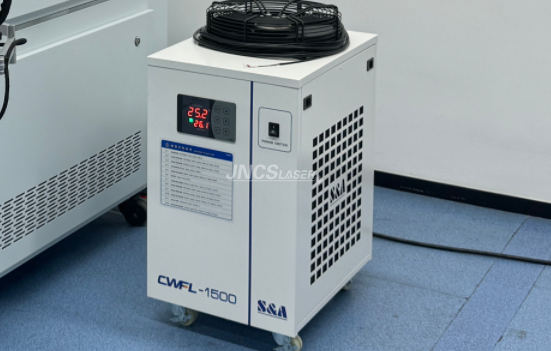

Water chiller | China S&A |
Processing material | Stainless Steel / Carbon Steel/ Galvanized steel / Aluminum / Copper/ Iron, etc |
Gross weight | 1200KG |

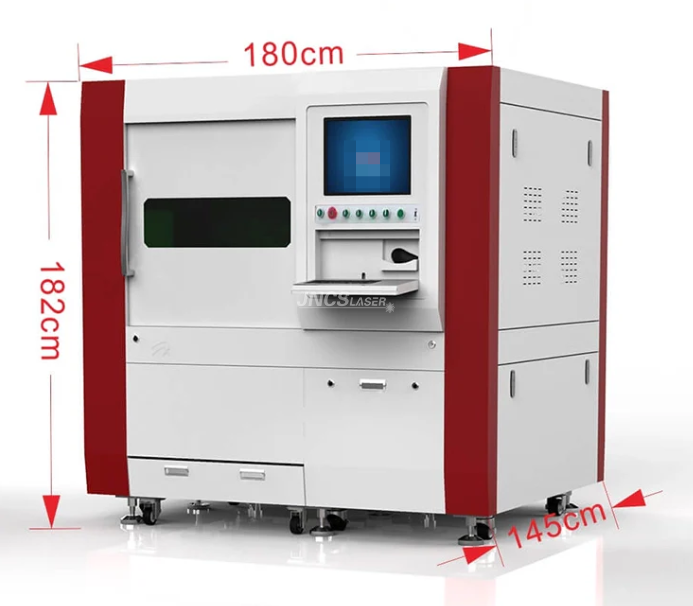

Packing size | 190cm×165cm×198cm, 6.207CBM |

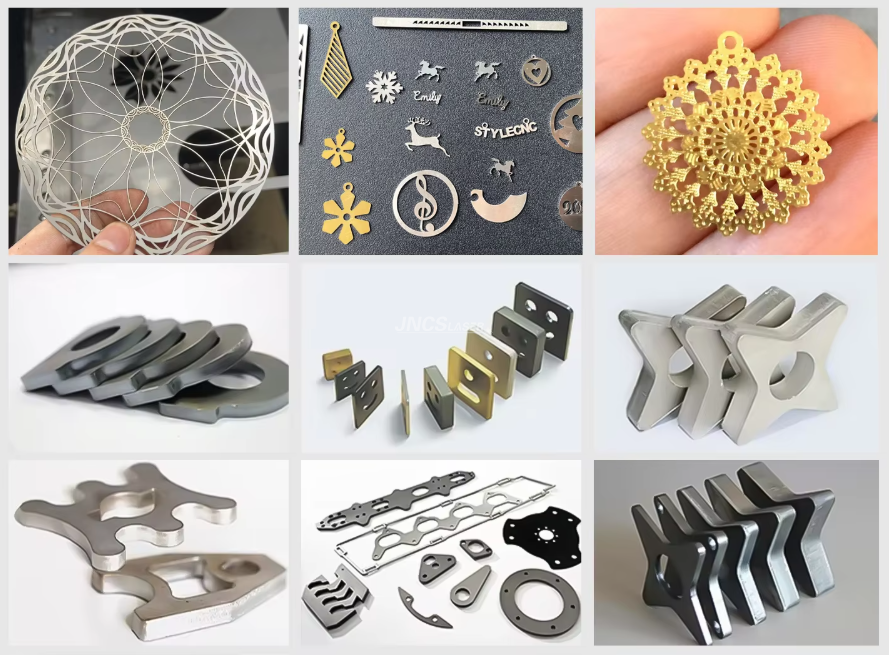

Sample Display:
Applicable Fields:
The machine is widely applied in sheet metal processing, aviation, aerospace, electronics, electrical appliances, subway accessories, automobile, machinery, precision parts, ships, metallurgical equipment, elevators, household appliances, craft gifts, tool processing, decoration, advertising, metal processing and other Manufacturing and processing industry.
Applicable Materials:
Fiber Laser Cutting Equipment is suitable for metal cutting with Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring Steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc.
Video Tutorials & Instructional Video:
How to Play Order:
- Will you please inform us the below information?
- What material will you cut? stainless steel, carbon steel, aluminum, copper?
- What is your maximum cutting area? standard model CS1530 1500X3000mm working area, it can be customized.
- What is your maximum cutting thickness for each kind of metal?
- We would like to recommend you suitable laser cutting machine accordingly and offer you our best price.
- Will you ship machine by sea? So, please tell us your nearest sea port. We would like to check freight fee for you.
- After you confirm machine model, power, price, freight fee, then please inform us your Consignee Information ( company name, address, contact, phone number ) we will make Proforma Invoice for you to play order.
- You can remit the payment according to Proforma Invoice.
- Machine will be ready 15-20 working days after your payment.
- We will share with you machine photos and videos since machine is ready.
- After confiming all is fine, we will book shipment.
- We will share with you bill of lading, commercial invoice, packing list after shipment.
- You can operate laser cutting machine according to user video and user manual.
- If any questions about using, we would like to guide you online.
