CS1325 Hot Sale CNC Wood MDF PVC Engraving Cutting Machine
Woodworking CNC Router

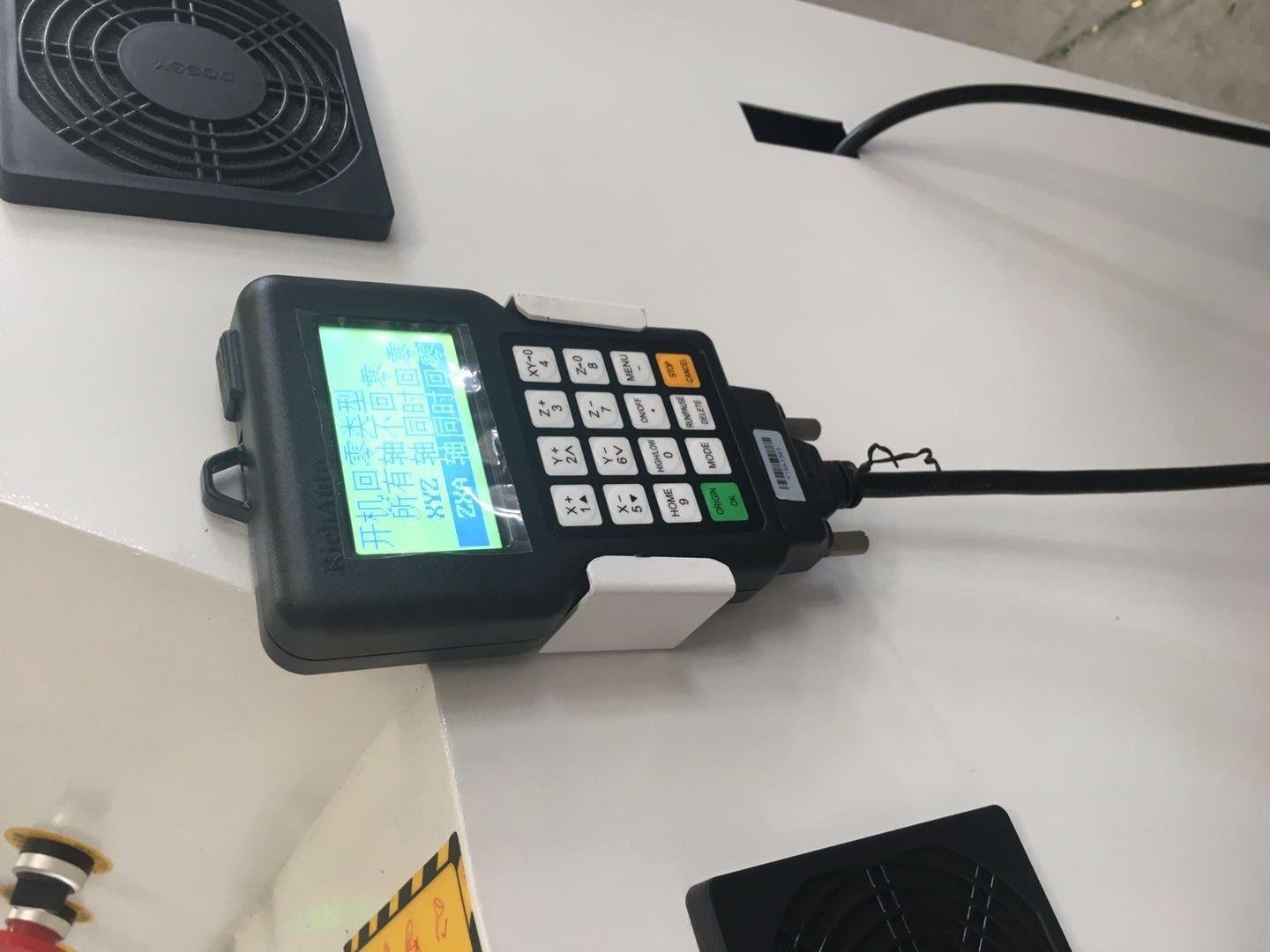

- NC Studio Controller
- XYZ square rail 20

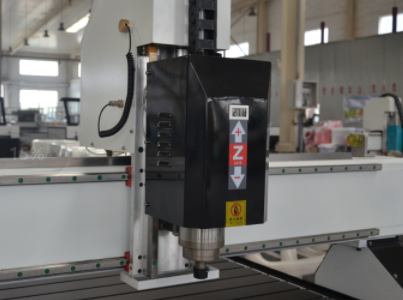

- 3.2kw water cooling spindle

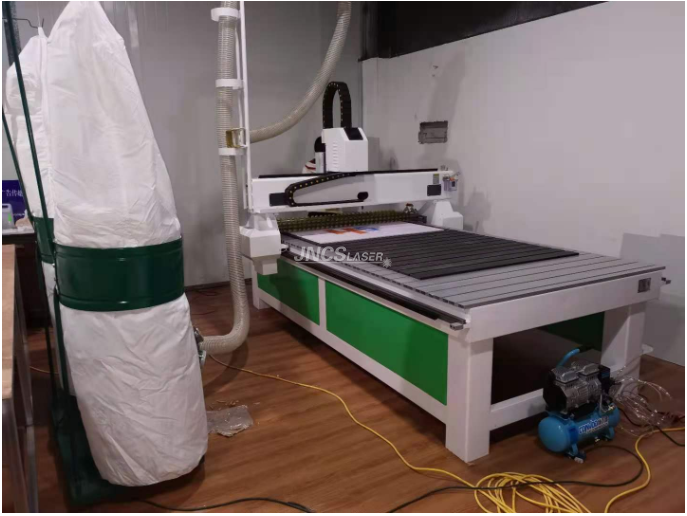

- Dust collector
- T-slot alloy aluminum working table
- square pipe welding feature
- chuangwei 860BYGH450B stepper motor

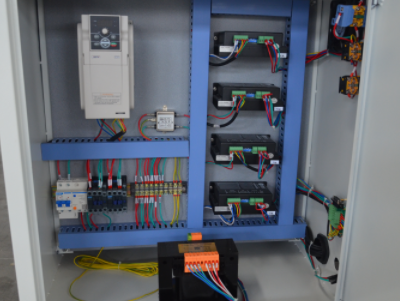

- leedshine 860H driver
Main Feature:
- The square tube structure lathe bed is used for great solidity and stability.
- High precision makes it suitable for the furniture advertising industry.
- Option metal tools are available to facilitate metal engraving cutting.
- High-speed water cooling spindle, high performance subdivision driver.
- Precise and efficient control system, coming with professional software.
Machine Configurations:
Machine Optional Parts:
Machine Parameters:
NO. | Description | Parameter | ||
1 | Product model | CS-1325 | CS-1530 | CS-2030 |
2 | X,Y,Z Working Area | 1300x2500x200mm | 1500x3000x200mm | 2000x3000x200mm |
3 | Table Size | 1440×3040mm | 1640×3040mm | 2140×3540mm |
4 | Working Accuracy | <0.01mm | ||
5 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm | ||
6 | X,Y,Z repositioning Positioning Accuracy | ±0.05mm | ||
7 | Frame Structure | steel weld bed /gantry | ||
8 | X,Y axis transmission | Imported gear rack | ||
9 | Z axis transmission | Taiwan TBI ball screw | ||
10 | X,Y,Z axis drive bearings | Taiwan Hiwin square guide rail 20mm | ||
11 | Max. Consume Power | 6.5KW | ||
12 | Max. Speed | 0-20000mm/min | ||
13 | Max. Working Speed | 0-15000mm/min | ||
14 | Spindle Power | 3.2kw water-cooling spindle | ||
15 | Spindle Speed | 0-24000RPM | ||
16 | Cutting Tool Diameter | φ3.175/4/6/8/10/12.7 | ||
17 | Table | T-slot alloy aluminum working table (optional vacuum table and vacuum pump) | ||
18 | Working Voltage | AC220V/380V, 50/60Hz, single phase | ||
19 | Driving System | Stepper motor and Leadshine drivers | ||
20 | Format of Instructions | G code,*uoo,*mmg, *plt | ||
21 | Operating System | English NC-studio computer control system | ||
22 | Software | English Ucancam, Type3, Artcam | ||
23 | Interface | USB | ||
24 | Collet | ER25 | ||
25 | Running circumstance | Temperature: 0℃～45℃ Relative humidity: 30%～75% | ||
Video Tutorials & Instructional Video:
Sample Display:
- 1. Woodworking industry:mainly used in redwood classical and antique furniture, wood carving, gifts wooden box ,redwood jewelry boxes, ink-stone cutting, decorative products sculpture, fine jewelry carving.
- Advertising industry: engrave and cut various signboards, marble, copper, charactermold, fonts. And various metal sign, brand.
- Craft & gift industry: engrave various word or graph on the souvenir and handicraft, ironwork engraving, dials.
- Modelindustry: company plate, signs, building models, emblem, badge, display panels, fair signs, building numbers, signs of decoration, shoes, badge, embossed mould, biscuit, candy, chocolate mould.
- Other lines: also used in portraits, landscapes, calligraphy lettering, seal carving and other plane surface carving,
How to Play Order:
- Will you please inform us the below information?
- What material will you engrave or cut?
- What is your maximum working area?
- We would like to recommend you suitable laser marking machine accordingly and offer you our best price.
- Will you ship machine by sea, by air or by courier? So, please tell us your nearest sea por, air port, or detailed address. We would like to check freight fee for you.
- After you confirm machine model, power, price, freight fee, then please inform us your Consignee Information ( company name, address, contact, phone number ) we will make Proforma Invoice for you to play order.
- You can remit the payment according to Proforma Invoice.
- Machine will be ready 5-7 working days after your payment.
- We will share with you machine photos and videos since machine is ready.

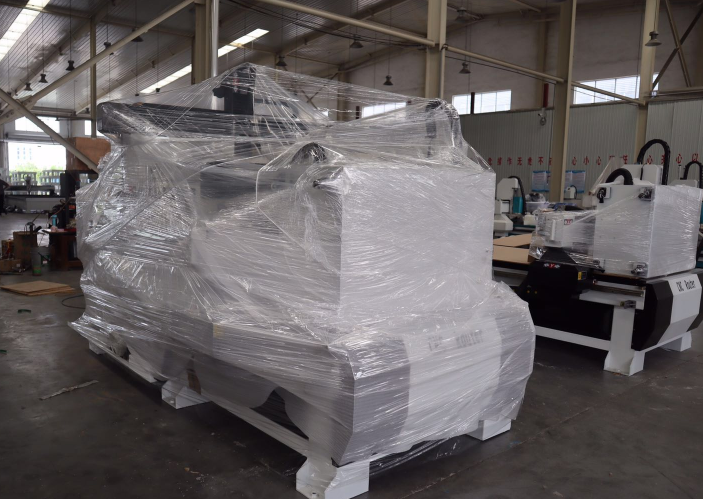

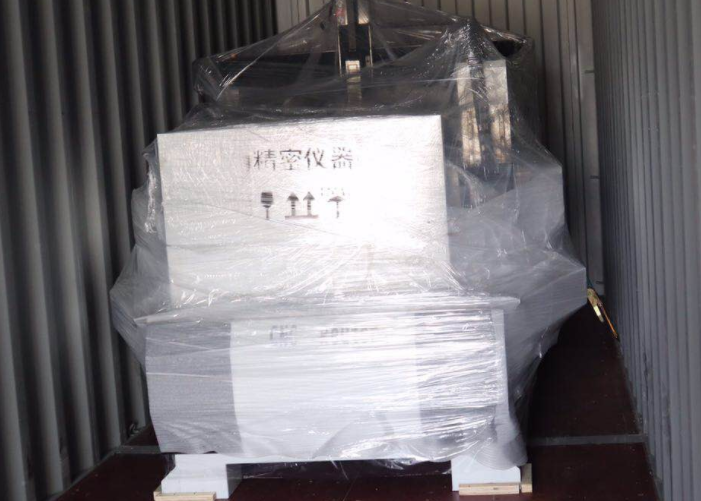

- After confiming all is fine, we will book shipment.
- We will share with you bill of lading, commercial invoice, packing list after shipment.
- You can operate laser marking machine according to user video and user manual.
- If any questions about using, we would like to guide you online.
