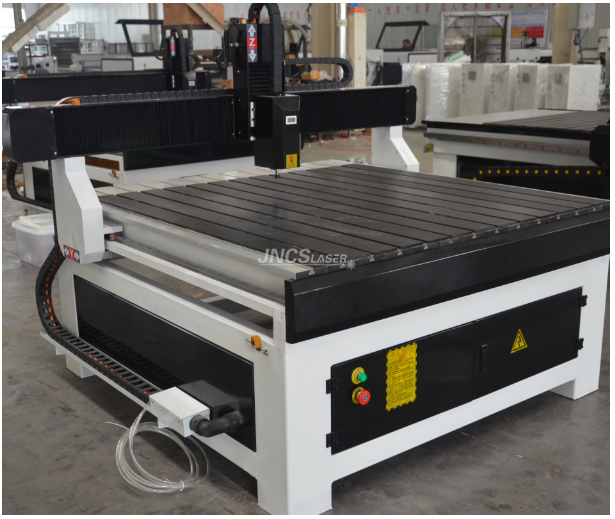

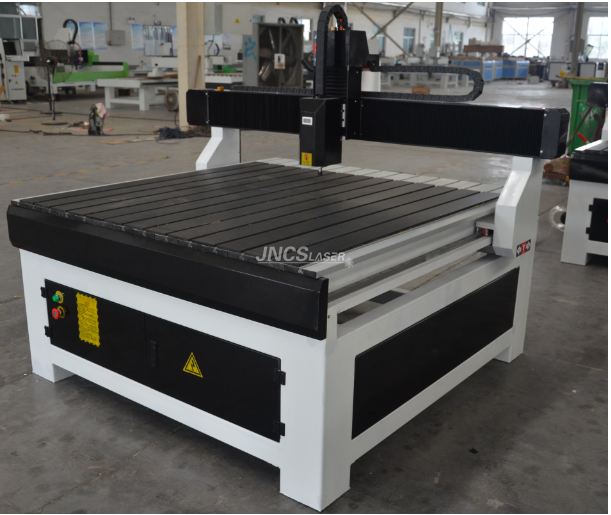

CS1212 CNC Router Machine for PCB/PVC/Aluminum/Wood
Woodworking CNC Router
- NC Studio Controller
- XYZ square rail

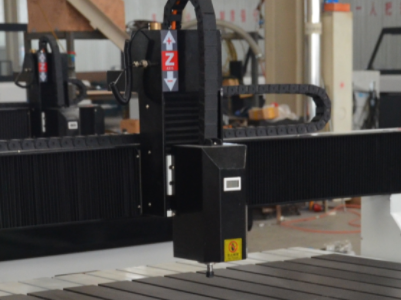

- 1.5kw water cooling spindle
- T-slot alloy aluminum working table
- Cast iron lathe bed
- chuangwei 450A stepper motor
- leedshine 860H driver
Main Feature:
1) three-axis adopts imported ball screw of industrial level, which can position accurately and make processing effect more perfect.
2)famous brand drivers and motors have characteristics such as powerful strength, fast processing speed, stable operation and extreme low noises.

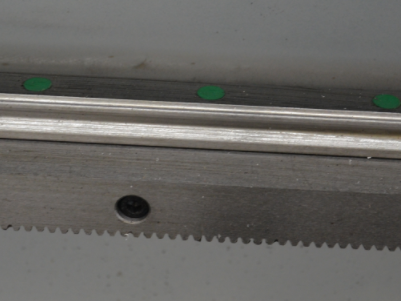

3)Imported high precise linear guideways have features such stable operation, high precision and steady support, which prolong service life of machines.
4). Adopts the breakpoint memory way, to guarantee available in accident or the next day processing.
5) Software has good compatibility. The machine can be compatible with various CAD/CAM design & making software such as TYPE3, Artcam, Artcut, UG, MasterCAM, PowerMill and so on.

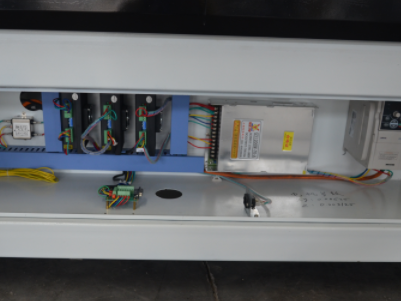

Machine Configurations:
Machine Optional Parts:
Machine Parameters:
NO. | Description | Parameter | ||
1 | Product model | CS-1212 | CS-1218 | CS-1224 |
2 | X,Y,Z Working Area | 1200x1200x150mm | 1200x1800x150mm | 1200x2400x150mm |
3 | Table Size | 1340x1545mm | 1340x2345mm | 1340×2940mm |
4 | Working Accuracy | <0.01mm | ||
5 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm | ||
6 | X,Y,Z repositioning Positioning Accuracy | ±0.05mm | ||
7 | Frame Structure | Cast iron lathe bed and cast aluminum components | ||

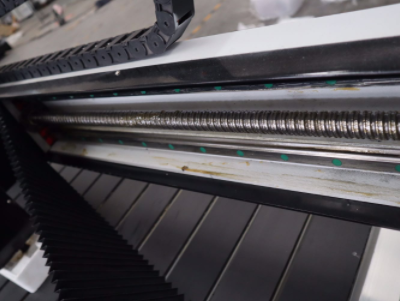

8 | X,Y,Z axis transmission | Taiwan TBI ball screw | ||
9 | X,Y,Z axis drive bearings | Taiwan Hiwin square guide rail | ||
10 | Max. Consume Power | 6.5KW | ||
11 | Max. Speed | 0-15000mm/min | ||
12 | Max. Working Speed | 0-8000mm/min | ||
13 | Spindle Power | 2.2kw water-cooling spindle | ||
14 | Spindle Speed | 0-24000RPM | ||
15 | Cutting Tool Diameter | φ3.175/4/6/8/10/12.7 | ||

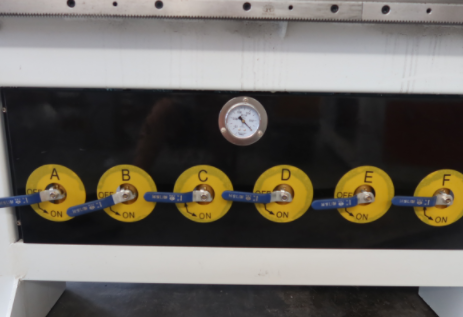

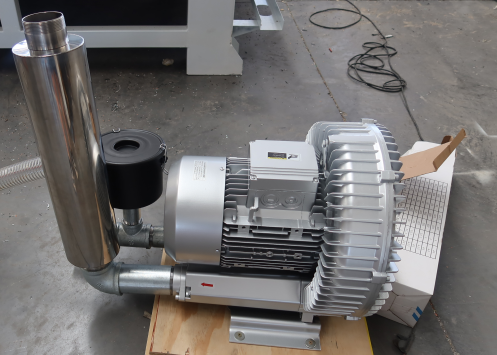

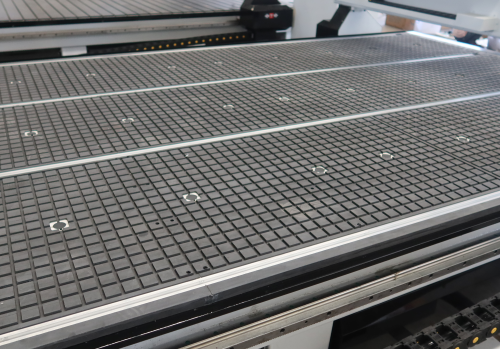

16 | Table | T-slot alloy aluminum work table (optional vacuum table and vacuum pump) | ||
17 | Working Voltage | AC220V/380V, 50/60Hz, single phase | ||
18 | Driving System | Stepper Motor | ||
19 | Format of Instructions | G code,*uoo,*mmg, *plt | ||
20 | Operating System | English NC-studio computer control system | ||
21 | Software | English Ucancam, Type3, Artcam | ||
22 | Interface | USB | ||
23 | Collet | ER20 | ||
24 | Running circumstance | Temperature: 0℃～45℃ Relative humidity: 30%～75% | ||
Video Tutorials & Instructional Video:
Sample Display:

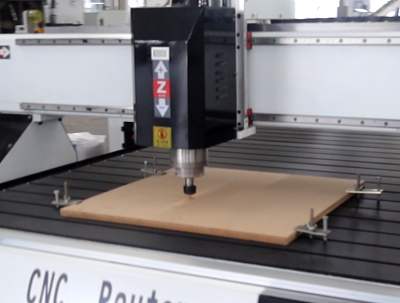

1) It is engraving on brass, aluminum, plastic, acrylic, wood, MDF and other similar materials , with fast speed and high accuracy, and it can meet the demand of all the needs of engraving.
2)Especially for Advertising industry:Advertising identification, sigh making, Acrylic engraving and cutting, Crafts processing, PVC words,Light words,Plastic words,Artwork,Aluminum,PCB, etc.
How to Play Order:
- Will you please inform us the below information?
- What material will you engrave or cut?
- What is your maximum working area?
- We would like to recommend you suitable laser marking machine accordingly and offer you our best price.
- Will you ship machine by sea, by air or by courier? So, please tell us your nearest sea por, air port, or detailed address. We would like to check freight fee for you.
- After you confirm machine model, power, price, freight fee, then please inform us your Consignee Information ( company name, address, contact, phone number ) we will make Proforma Invoice for you to play order.
- You can remit the payment according to Proforma Invoice.
- Machine will be ready 5-7 working days after your payment.
- We will share with you machine photos and videos since machine is ready.
- After confiming all is fine, we will book shipment.
- We will share with you bill of lading, commercial invoice, packing list after shipment.
- You can operate laser marking machine according to user video and user manual.
- If any questions about using, we would like to guide you online.
