How Does the CNC Fiber Laser Cutting Machine Work?



CNC Fiber laser cutting machines have revolutionized the manufacturing industry, providing faster and more precise cutting capabilities than traditional methods. These machines utilize a high-powered laser beam to cut through various materials with precision and speed. Let’s delve into the working mechanism of a CNC Fiber laser cutting machine.

Firstly, the CNC (Computer Numerical Control) system plays a crucial role in these machines. It receives input from a computer through specialized software that contains the desired design or pattern to be cut. The system then uses this information to control the movements of the laser cutting machine.

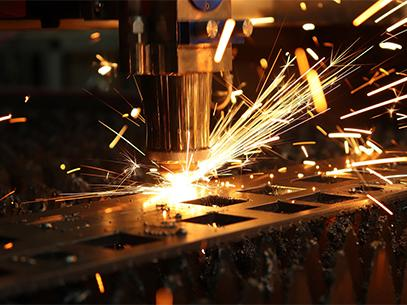

The heart of the machine is the fiber laser source, which generates an intense beam of light. This beam passes through a series of mirrors and lenses that direct and focus it onto the material being cut. The focused laser energy melts or vaporizes the material at the point of contact, creating a narrow, precise cut.

A key component in ensuring efficient and accurate cuts is the motion control system. This system consists of servo motors and drive mechanisms that move the laser head along the X, Y, and Z axes. The CNC system precisely controls these motors based on the design input, guiding the laser head to follow the desired path for cutting.

To provide stability and ensure precision, CNC Fiber laser cutting machines often feature a rigid frame and a worktable. The worktable supports the material being cut and moves in synchronization with the motion control system. This eliminates any vibrations that may affect the quality of the cut.

Another critical aspect is the assist gas system. Depending on the type of material being cut, different gases such as nitrogen or oxygen are used to blow away molten metal or debris from the cutting area. These assist gases help improve cut quality, prevent overheating, and protect the lens from damage caused by reflections.

Safety features are also integrated into CNC Fiber laser cutting machines to protect operators and prevent accidents. These include emergency stop buttons, protective enclosures, and laser beam shields to minimize the risk of exposure to the laser beam.
