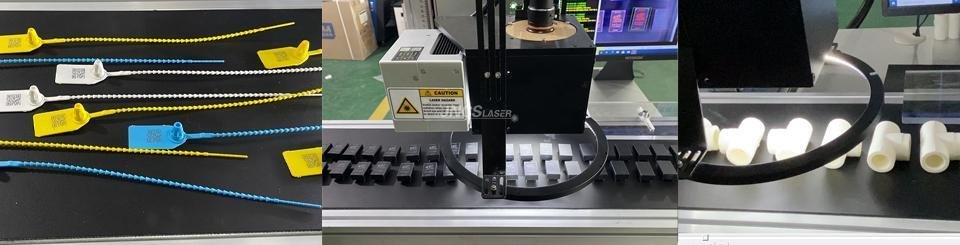

UV Laser Marking Machine with Automatic CCD Visual Positioning System

3w 5w UV Laser Marking Machine
with CCD

Rating:

High precision UV laser marking machine adopts Ultraviolet laser which is mainly used in ultra-fine marking for plastics, including PC (polycarbonate), PP (polypropylene), PE (polyethylene), PA, ABS, PMMA, silicon, ceramics and crystal glass, now the UV laser engraving machine for sale at affordable price.

UV laser marking machine is also called UV laser engraving machine, which has high beam quality and small spot, and the processing of heat affected area is small, which can be used for ultra-fine marking, special material marking. UV laser marking machine is suitable for processing more extensive materials, such as plastics, including PP (polypropylene), PC (polycarbonate), PE (polyethylene), ABS, PA, PMMA, silicon, glass and ceramics.

MORE

Main Feature:

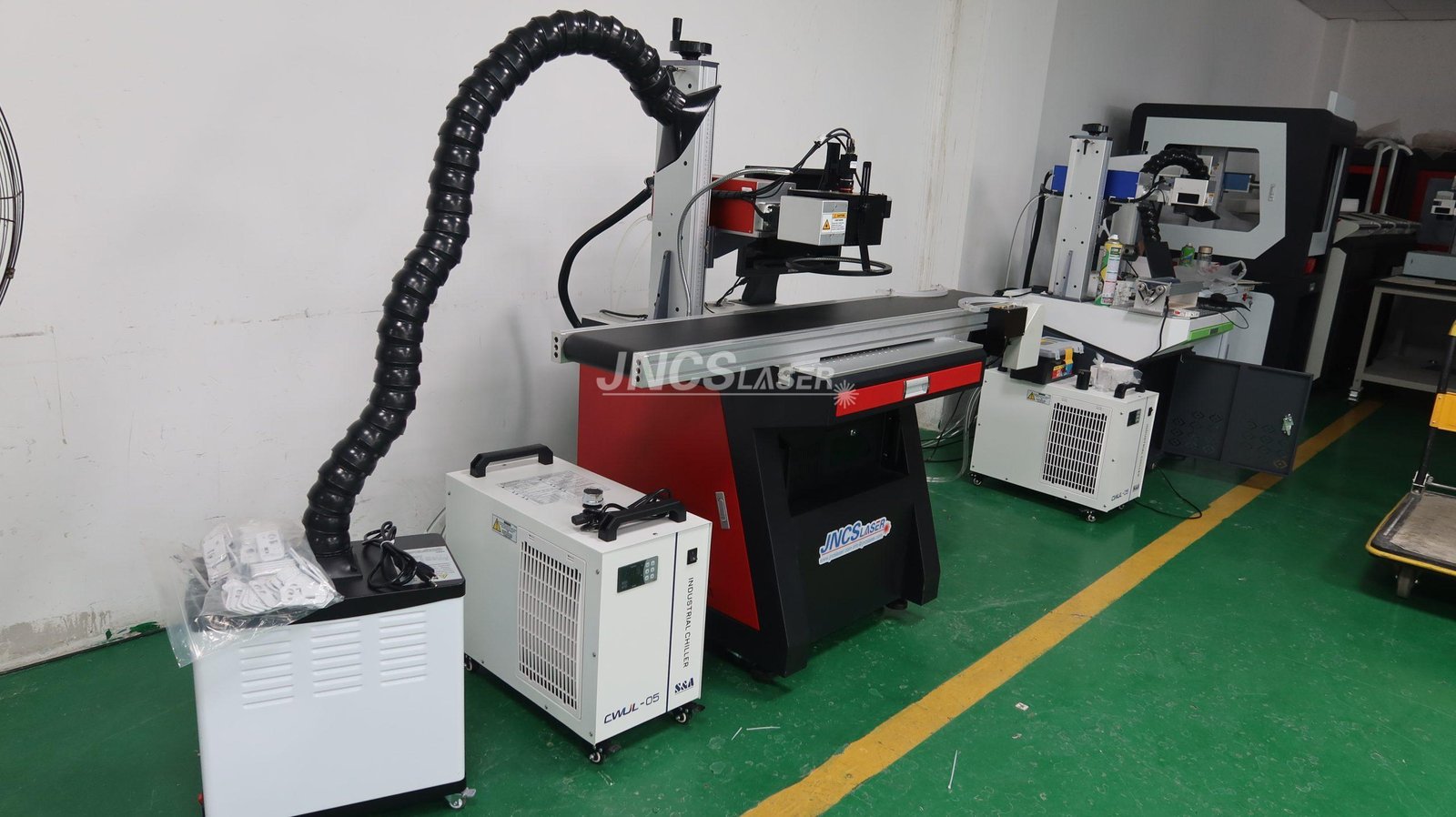

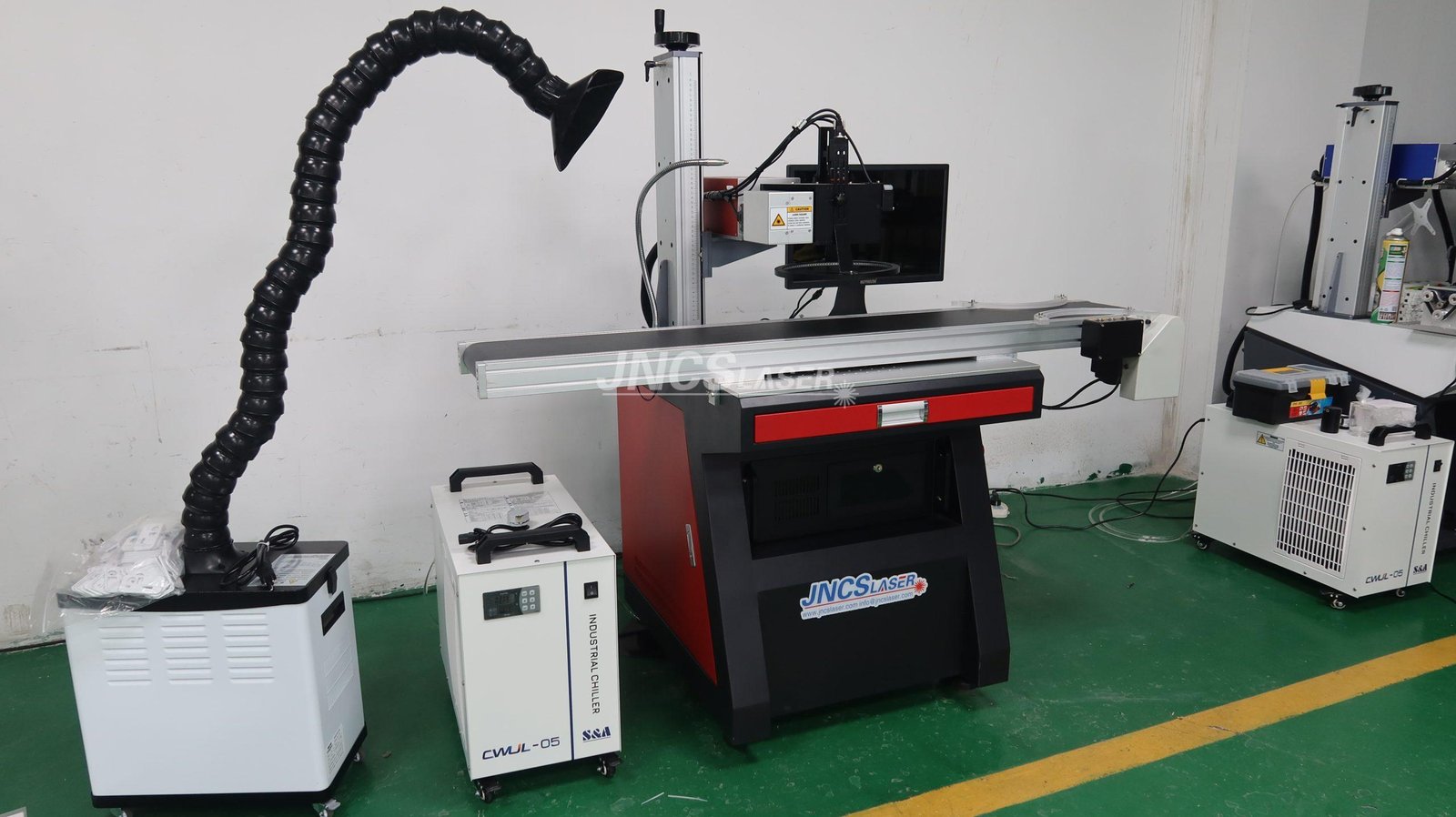

Machine Desciption of CCD Camera Positioning Laser Marking Machine: The machine has imported high-precision CCD camera positioning and large-scale graphic visual recognition system, which can be integrated with different light sources such as optical fiber, CO2, UV, etc. it can not only automatically locate products for marking and automatic detection of defective products, but also realize large-scale visual positioning and marking through the moving platform.

Features of CCD Camera Positioning Laser Marking Machine 1、automatic intelligent positioning 2、suitable all kinds of metal and nonmetallic material 3、supports automatic loading&unloading system

Perfect marking quality: 355nm output wavelength to reduce the thermal impact on the workpiece, high-precision galvanometer marking head can ensure fine and repeatable marking, high-precision fine spot to ensure the perfect marking results, The marking process is non-contact, the marking effect is permanent.

  • UV laser engraver machine has a large marking range.
  • Heat affected area is very small, there will be no thermal effect, the material is not deformed and charred.
  • High speed and high efficiency.
  • Machine performance is stable, small size, low power consumption.
  • The UV laser engraving machine is suitable for heat radiation reaction of large materials processing, if it’s used for the production line with the automatic loading and unloading, it can realize automatic access to materials. It’s suitable for the vast majority of metal and non-metallic materials on the marking industry.

Machine Configurations:

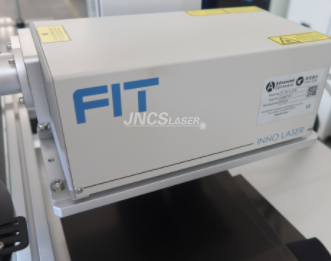

UV Laser Source

Brand Name: RFH laser High quality Precise position

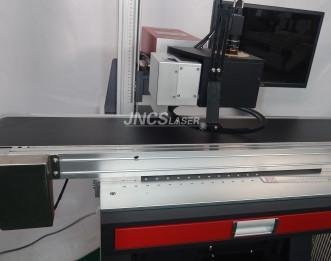

CCD visual positioning system

Brand Name: Beijing JCZ Support Rotary Software: Ez cad Support: Windows system WinXP Win7 Win8 Win10

Field Lens

Brand Name: Nanjing CRD Working Area: 110X110mm 140X140mm 210X210mm 300X300mm

Tool Box

Foot Switch Protect Goggles U disk with software Spanner Keys Screws Ruler Power Cable

Galvo Scanner

Brand Name: Shenzhen Tenfotai High speed, high precision

Economic UV Laser Marking Machine

Optional Power: 3W 5W

Economic UV Laser Marking Machine

Optional Power: 3W 5W

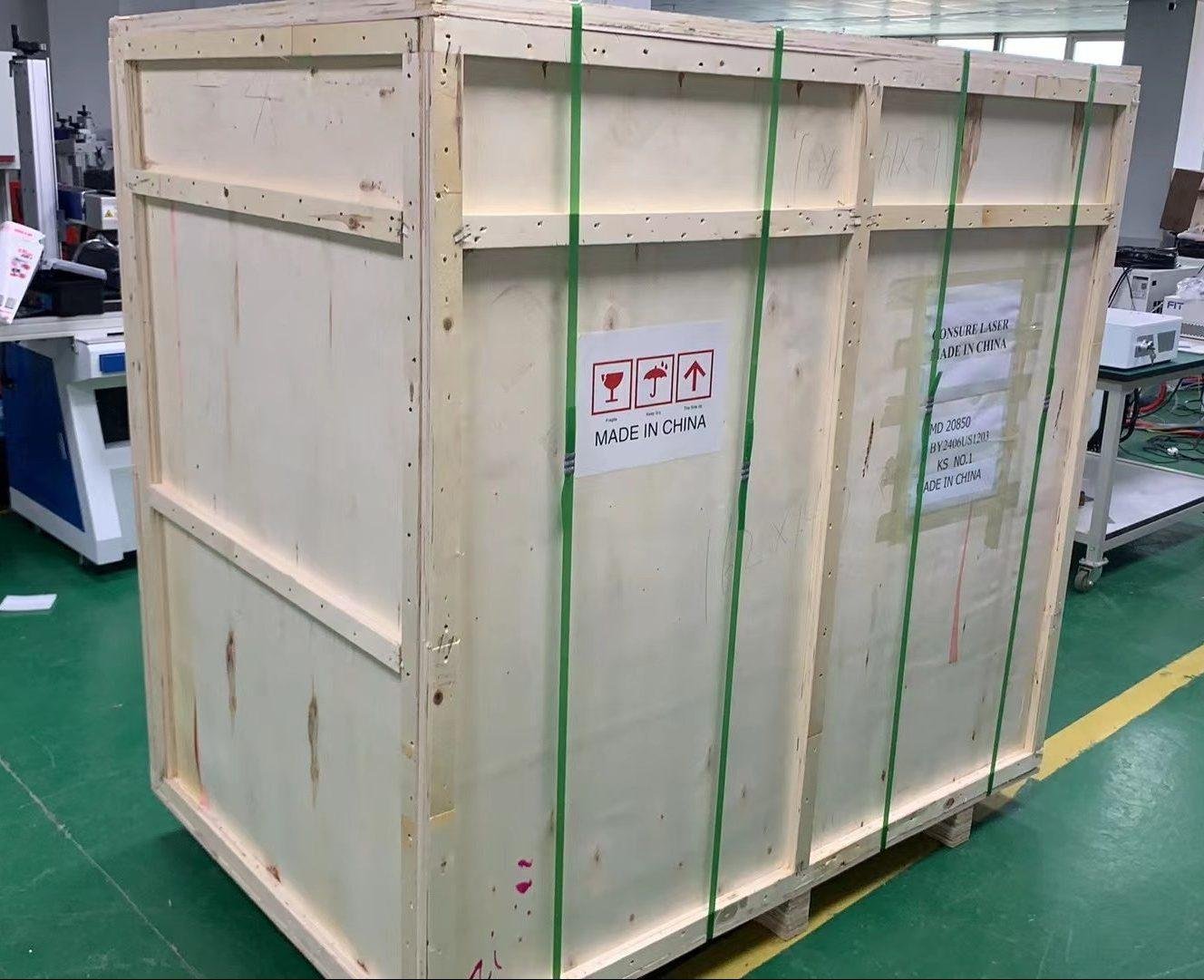

Plywood Package

1. Plastic film 2. foam 3. plywood package

Machine Optional Parts:

Cutting Fixture

It is used for fixing metal sheet when cutting. It will be choosed by 50w 100w big power machine.

The wheel rotary clamp

It is suitable for 5-120mm diamater cylinder. It can bear within 20Kg cylinder.

2D Working Table

It can be moved left and right, Front and back.

Smoke Purifier

Smoke purifier is mainly used for the purification of smoke and dust produced in marking, cutting, and other processes as well as the recovery of rare metals and precious materials

Flat rotate table for marking pen

It can be put 24 pcs pens.

Rotary clamp

Diameter: 80mm

Ecnomic Flat rotate table for marking pen

It is used for marking pen.

Machine Parameters:

Model

CS-UV3W      CS-UV5W

Wave length of laser

355nm

Laser output power

3W         5W

Marking speed

400 characters per second

Beam quality

<1.1

Repeated accuracy

±0.001mm

Working area

110*110mm 150*150mm 175*175mm optional

Machine power

800W

Minimal character

0.1mm

Cooling ways

Force-air Cooling

Power supply

220V/ 50Hz/2kVA

Minimum line width

0.015mm

Support format

PLT, BMP, DXF, JPG, TIF, AI etc

Cooling system

Air cooling or water cooling selectable

Package size

91CM X 96CM  X 157 CM H

Gross weight

170KG



Video Tutorials & Instructional Video:

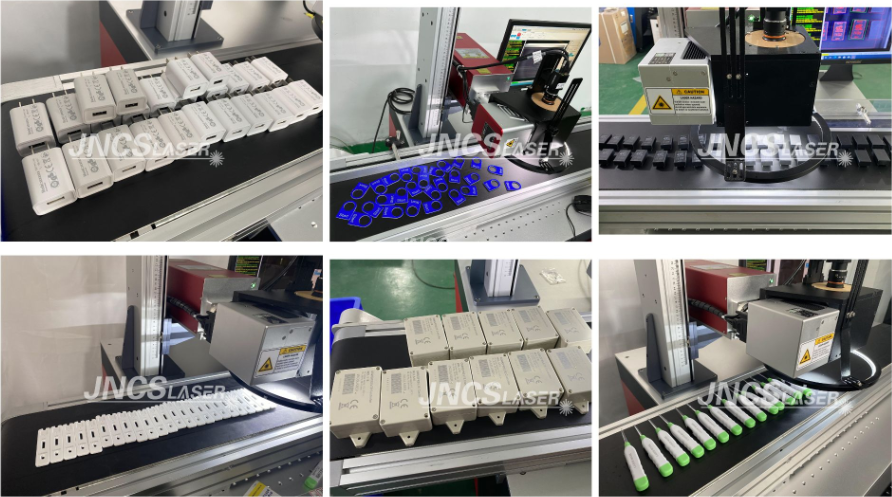

Sample Display:

UV laser marking machine is suitable for processing more extensive materials, such as plastics, including PP (polypropylene), PC (polycarbonate), PE (polyethylene), ABS, PA, PMMA, silicon, glass and ceramics.

How to Play Order:

  1. Will you please inform us the below information?
  • What material will you mark?
  • What is your maximum marking area?
  • Do you need marking depth? Or just require marking clearly?
  1. We would like to recommend you suitable laser marking machine accordingly and offer you our best price.
  2. Will you ship machine by sea, by air or by courier? So, please tell us your nearest sea por, air port, or detailed address. We would like to check freight fee for you.
  3. After you confirm machine model, power, price, freight fee, then please inform us your Consignee Information ( company name, address, contact, phone number ) we will make Proforma Invoice for you to play order.
  4. You can remit the payment according to Proforma Invoice.
  5. Machine will be ready 5-7 working days after your payment.
  6. We will share with you machine photos and videos since machine is ready.
  7. After confiming all is fine, we will book shipment.
  8. We will share with you bill of lading, commercial invoice, packing list after shipment.
  9. You can operate laser marking machine according to user video and user manual.
  10. If any questions about using, we would like to guide you online.
