JPT Mopa 20W 30W 60W Fiber Color Laser Marking Machine

Fiber Laser Marking Machine for color Marking


Fiber laser marking machine designed to easy-move equipment, air-cooling, compact machine, Perfect output beam quality, high reliability, no consumables, maintenance-free. Long life Working. Import Germany IPG fiber laser, the international latest, most reliable structure, small size, power consumption is small, no high-voltage without large water-cooled system. Close to the ideal beam, USB interface, output control, optical scanning system, laser repetition rate high, high-speed, without distortion.

Main Feature:

  1. The fiber laser generator is high integrated, has superior laser beam and uniform power density. Output laser power is stable. This design highly increase the machine’s anti-reflection ability with optical isolator, be able to mark on most high reflective materials such as aluminum, copper, gold and silver without the shadow and virtual open phenomenon.
  2. Adopts advanced digital high speed scanning galvanometer, quick speed without deviation, small volume, good stability, and performance reached the international advanced level.
  3. Modular design, separate laser generator and lifter, more flexible, can mark on bigger area and complicated surface. Air-cooled inside, small occupation, easy to install.
  4. Adopt the embedded operating system, which the performance is leading domestic peers, good touch interface and powerful control system, can meet the demand of most industry application process in market.
  5. High efficiency for photoelectric conversion, simple operation, Compact in structure, support harsh working environment, no consumables.
Optional functions:
Motorized up down function: Machine will be equipped with adjustable speed motor, up button, down button, and extra red dot pointer. We can move marking head by up button, down button, when both red dots are coninside, that is the focus point.
Auto focus control by software: Machine will be equipped with stepper motor, Auto focus button. We need input the working piece thickness into Ez cad software, machine head will be moved to the correct focus point.
Auto focus control by galvo scanner:  Machine will be equipped with Galvo scanner with sensor, stepper motor, up button, down button, auto focus button. We start auto focus,the sensor test the working piece, marking head will come to the correct focus point.

Machine Configurations:

Controller card

Brand Name: Beijing JCZ Support Rotary Software: Ez cad Support: Windows system WinXP Win7 Win8 Win10

Power Supply

15V Power Supply for scanner 5V Power Supply for Mainboard 24V Power Supply for laser source

Extra Red Pointer

It can support customer adjust focus distance. Machine laser source has one red dot, and this extra red dot, when 2 red dots are coninside, that is the correct focus distance.

Tool Box

Foot Switch Protect Goggles U disk with software Spanner Keys Screws Ruler Power Cable

Laser Source

Brand Name: Shenzhen JPT Model: M7 20W M7 30W M7 60W Laser Power: 20W 30W 60W

Galvo Scanner

Brand Name: Beijing Sino Galvo Model: SG2206 high speed scanner

Field Lens

Brand Name: Nanjing Wave Length Mode:SG-1064-112-163G Working Area: 110X110mm

Machine Package

plastic film, foam, wooden package

Machine Optional Parts:

Rotary clamp

Diameter: 80mm

Rotary clamp for ring

Diameter: 50mm

2D Working Table

It can be moved left and right, Front and back.

Flat rotate table for marking pen

It can be put 24 pcs pens.

Cutting Fixture

It is used for fixing metal sheet when cutting. It will be choosed by 50w 100w big power machine.

The wheel rotary clamp

It is suitable for 5-120mm diamater cylinder. It can bear within 20Kg cylinder.

Smoke Purifier

Smoke purifier is mainly used for the purification of smoke and dust produced in marking, cutting, and other processes as well as the recovery of rare metals and precious materials

Economic Flat Rotate Table for Pen

It is used for pen.

Machine Parameters:

Type specification

CS-F20  CS-F30  CS-F60 CS-F100

Wave length of laser


Laser repetition frequency


Laser power

20W     30W      60W      100W

Marking scope

70*70mm 110*110 mm 150*150mm 175*175mm 200*200mm 250*250mm 300*300mm optional

Laser sources

Fiber module

Laser Head

Scanning head

The minimum focus facula diameter


Minimal character


Marking speed


Repeated accuracy


Cooling ways

Force-air Cooling

Power supply

220V/ 50Hz/2kVA

Process Material

All kinds of metal and part of Non-metal Materials

Support format



Standard Crate for export

Package Size and Gross Weight

0.91X0.93X1.57M  150KG

Video Tutorials & Instructional Video:

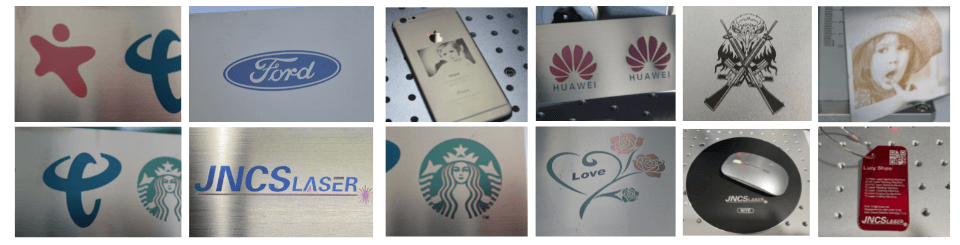

Sample Display:

Industry Application:

Electronic Components: Resistors, Capacitors, Chips, Printed Circuit Boards, Keyboard, etc.
Mechanical Parts: Bearings, Gears, Standard Parts, Motor, etc.
Instrument: Panel Board, Nameplates, Precision equipment, Medical Instruments etc.
Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, Gold Silver Brass Jewelry etc.
Automobile Parts: Pistons&Rings, Gears, Shafts, Bearings, Clutch, Lights.
Daily Necessities: Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.

Marking Materials:

Fiber laser marking machine could work perfectly for most metal materials. Such as Gold Silver Brass Jewelry, Aluminium, Stainless Steel, Iron Copperetc. And some plastic materials, such as ABS.

Especially  50w and 100w laser marking machine could cut small gold silver brass jewelry within 1mm.

How to Play Order:

  1. Will you please inform us the below information?
  • What material will you mark?
  • What is your maximum marking area?
  • Do you need marking depth? Or just require marking clearly?
  1. We would like to recommend you suitable laser marking machine accordingly and offer you our best price.
  2. Will you ship machine by sea, by air or by courier? So, please tell us your nearest sea por, air port, or detailed address. We would like to check freight fee for you.
  3. After you confirm machine model, power, price, freight fee, then please inform us your Consignee Information ( company name, address, contact, phone number ) we will make Proforma Invoice for you to play order.
  4. You can remit the payment according to Proforma Invoice.
  5. Machine will be ready 5-7 working days after your payment.
  6. We will share with you machine photos and videos since machine is ready.
  7. After confiming all is fine, we will book shipment.
  8. We will share with you bill of lading, commercial invoice, packing list after shipment.
  9. You can operate laser marking machine according to user video and user manual.
  10. If any questions about using, we would like to guide you online.
