Fiber Laser Marking Machine for Metal
Fiber laser marking machine designed to easy-move equipment, air-cooling, compact machine, Perfect output beam quality, high reliability, no consumables, maintenance-free. Long life Working. Import Germany IPG fiber laser, the international latest, most reliable structure, small size, power consumption is small, no high-voltage without large water-cooled system. Close to the ideal beam, USB interface, output control, optical scanning system, laser repetition rate high, high-speed, without distortion.
- The fiber laser generator is high integrated, has superior laser beam and uniform power density. Output laser power is stable. This design highly increase the machine’s anti-reflection ability with optical isolator, be able to mark on most high reflective materials such as aluminum, copper, gold and silver without the shadow and virtual open phenomenon.
- Adopts advanced digital high speed scanning galvanometer, quick speed without deviation, small volume, good stability, and performance reached the international advanced level.
- Modular design, separate laser generator and lifter, more flexible, can mark on bigger area and complicated surface. Air-cooled inside, small occupation, easy to install.
- Adopt the embedded operating system, which the performance is leading domestic peers, good touch interface and powerful control system, can meet the demand of most industry application process in market.
- High efficiency for photoelectric conversion, simple operation, Compact in structure, support harsh working environment, no consumables.
Motorized up down function: Machine will be equipped with adjustable speed motor, up button, down button, and extra red dot pointer. We can move marking head by up button, down button, when both red dots are coninside, that is the focus point.
Auto focus control by software: Machine will be equipped with stepper motor, Auto focus button. We need input the working piece thickness into Ez cad software, machine head will be moved to the correct focus point.
Auto focus control by galvo scanner: Machine will be equipped with Galvo scanner with sensor, stepper motor, up button, down button, auto focus button. We start auto focus,the sensor test the working piece, marking head will come to the correct focus point.
Brand Name: Beijing JCZ Support Rotary Software: Ez cad Support: Windows system WinXP Win7 Win8 Win10
15V Power Supply for scanner 5V Power Supply for Mainboard 24V Power Supply for laser source
It can support customer adjust focus distance. Machine laser source has one red dot, and this extra red dot, when 2 red dots are coninside, that is the correct focus distance.
Foot Switch Protect Goggles U disk with software Spanner Keys Screws Ruler Power Cable
Brand Name: Wuhan Raycus Model: 20QB 30QB 50QB Laser Power: 20W 30W 50W Optional Brand: Max./JPT Germany IPG
Brand Name: Beijing Sino Galvo Model: SG2206 high speed scanner
Brand Name: Nanjing Wave Length Mode:SG-1064-112-163G Working Area: 110X110mm
We have 3 layers package. For the outside, we adopt wooden cases free of fumigation. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic film.
20W 30W 50W 100W Mopa 20W Mopa 30W Mopa 60w
20W 30W 50W 100W Mopa 20W Mopa 30W Mopa 60w
Machine Optional Parts:
It can be moved left and right, Front and back.
It can be put 24 pcs pens.
It is used for fixing metal sheet when cutting. It will be choosed by 50w 100w big power machine.
It is suitable for 5-120mm diamater cylinder. It can bear within 20Kg cylinder.
Smoke purifier is mainly used for the purification of smoke and dust produced in marking, cutting, and other processes as well as the recovery of rare metals and precious materials
It is used for pen.
CS-F20 CS-F30 CS-F50 CS-F100
Wave length of laser
Laser repetition frequency
20W 30W 50W 100W
70*70mm 110*110 mm 150*150mm 175*175mm 200*200mm 250*250mm 300*300mm optional
The minimum focus facula diameter
All kinds of metal and part of Non-metal Materials
PLT, BMP, DXF, JPG, TIF, AI etc
Standard Crate for export
Package Size and Gross Weight
Video Tutorials & Instructional Video:
Electronic Components: Resistors, Capacitors, Chips, Printed Circuit Boards, Keyboard, etc.
Mechanical Parts: Bearings, Gears, Standard Parts, Motor, etc.
Instrument: Panel Board, Nameplates, Precision equipment, Medical Instruments etc.
Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, Gold Silver Brass Jewelry etc.
Automobile Parts: Pistons&Rings, Gears, Shafts, Bearings, Clutch, Lights.
Daily Necessities: Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.

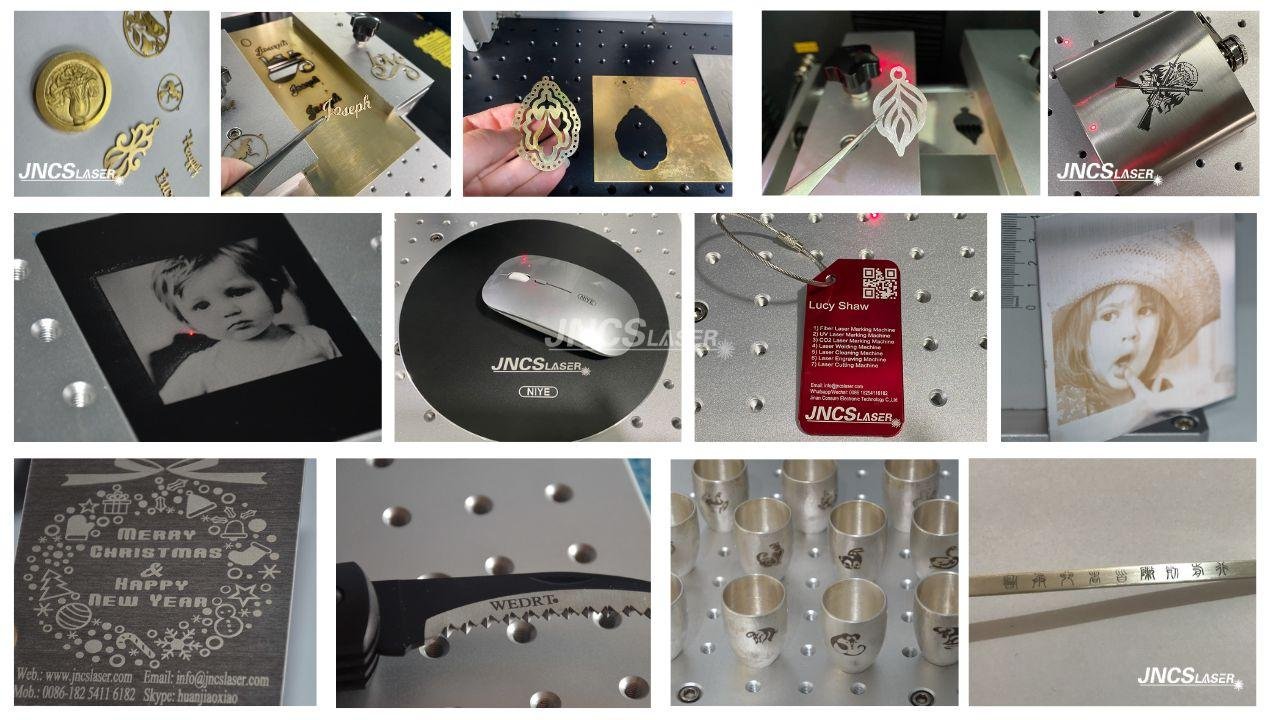

Fiber laser marking machine could work perfectly for most metal materials. Such as Gold Silver Brass Jewelry, Aluminium, Stainless Steel, Iron Copperetc. And some plastic materials, such as ABS.
Especially 50w and 100w laser marking machine could cut small gold silver brass jewelry within 1mm.
How to Play Order:
- Will you please inform us the below information?
- What material will you mark?
- What is your maximum marking area?
- Do you need marking depth? Or just require marking clearly?
- We would like to recommend you suitable laser marking machine accordingly and offer you our best price.
- Will you ship machine by sea, by air or by courier? So, please tell us your nearest sea por, air port, or detailed address. We would like to check freight fee for you.
- After you confirm machine model, power, price, freight fee, then please inform us your Consignee Information ( company name, address, contact, phone number ) we will make Proforma Invoice for you to play order.
- You can remit the payment according to Proforma Invoice.
- Machine will be ready 5-7 working days after your payment.
- We will share with you machine photos and videos since machine is ready.
- After confiming all is fine, we will book shipment.
- We will share with you bill of lading, commercial invoice, packing list after shipment.
- You can operate laser marking machine according to user video and user manual.
- If any questions about using, we would like to guide you online.
