Gantry Galvanometer Continuous Fiber Laser Welding Machine

Galvanometer Continuous Fiber Laser Welding Machine

1.A set of continuous fiber lasers; Max.
2.1000X600X600X300mm
3.A set of welding heads;
4.One 1.5P chiller;
5. A set of computer welding systems;
6.a set of 3600 four-axis control system;
7.a set of host cabinets.



Main Feature:

  • This machine adopts 1000W /1500W/2000w fiber laser, which has high electro-optical conversion efficiency and longer laser service life;
  • the laser beam quality is very good, the welding speed is fast, more than 5 times the speed of the traditional fiber transmission laser welding machine, the welding effect is superb, the depth large, small taper, high precision, fully meet the needs of users in different industries, the welding is solid,smooth and beautiful;
  • the whole machine has low energy consumption, maintenance-free, high stability, can save users a lot of processing costs for long-term use;
  • The control system is a professional four-axis control system specially designed for laser welding. It has powerful PC control and is easy to program, debug and maintain. Protection, automatic or semi-automatic spot welding, butt welding, lamination welding, sealing welding, welding for complex flat lines, arcs and arbitrary tracks Connection; high stability, strong scalability, easy to learn and easy to use;
  • equipped with large workbench, platform XY dual-axis electric module, Z-axis with power-off brake motor, can be equipped with time rotating shaft, 3D laser welding can be realized for special-shaped three-dimensional products, with high speed and long life and high precision;
  • can be time splitting or energy splitting, suitable for different processing applications, multi-station processing applications, can be widely used in both spot laser welding for welding and continuous welding and flexible machining industries.
  • can be customized automatic fixtures, can be combined with assembly lines, photoelectric sensors, pneumatic fixtures and other combinations for automatic processing and mass production.

Machine Configurations:

4 Axis Automatic Continuous Fiber Laser Welding Machine

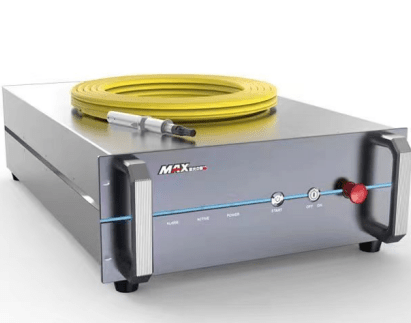

Fiber Laser Source

Adopting famous brands (Raycus / JPT/Max. And Germany IPG)

4 Axis Automatic Continuous Fiber Laser Welding Machine

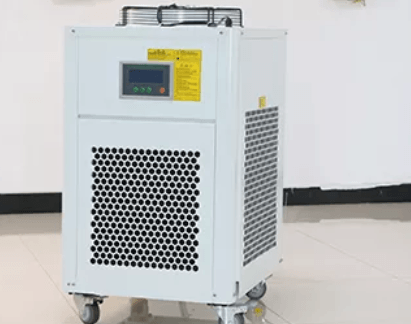

Water Chiller

equipped with 1.5p water chiller, it can meet with requirements for a long time, high power welding is more stable.

4 Axis Automatic Continuous Fiber Laser Welding Machine

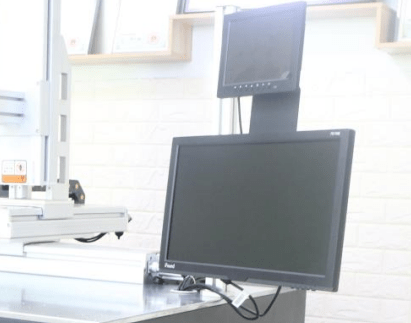

CCD Camera Display

Display on a video, display by connect the device, clear welding point

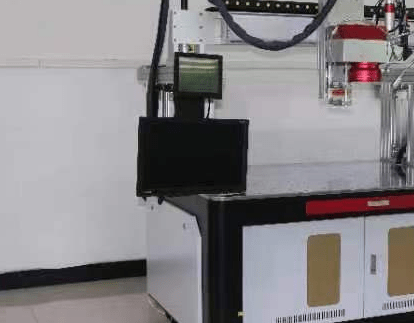

Gantry Galvanometer Continuous Fiber Laser Welding Machine

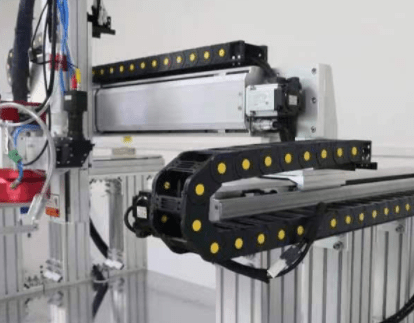

XYZ Travel size

XYZ Travel size 500*300*300 electric translation stage set;

Gantry Galvanometer Continuous Fiber Laser Welding Machine

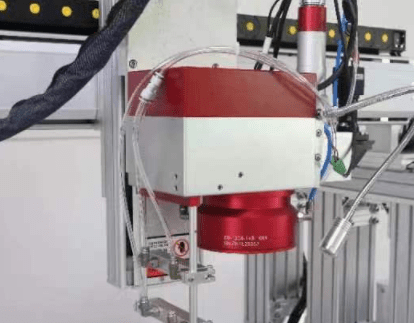

Galvo welding head

With double galvanometer structure, it can perform point, straight line, circle, and other pattern welding output, and complete the welding of various needs. The welding seam is beautiful and the efficiency is very high.

Gantry Galvanometer Continuous Fiber Laser Welding Machine
CCD image monitor system

All functions of this device are controlled by software, highly integrated, simple to operate, quick to use, easy to operate and maintenance-free.

Machine Parameters:

Model

CS-FL1000W  CS-FL1500W  CS-FL2000W  CS-FL3000W

Rated Laser Power

1000W        1500W       2000W       3000W

laser device

Continuous fiber laser

The laser wavelength,

1080   +-  10nm

The minimum spot

0.1mm

Rated power

3.5KW

Rated power

3.5KW

Cold power of cold water mechanism

1.5P

Fiber line length

 5 m

Spectroscop ic methods

Precision energy splitting or high speed time splitting

The light pattern

QCW/PWM/C W

Aiming and positioning system

The micro scope

Cooling way

Water cooling (double temperature and double control)

Demand for electricity

AC220  v + 10%  for  50 hz/ 40 a

Manual suspension arm

Lifting height

600mm



stretch scope

3m





External dimensions/net weight

Host 1050*500*900mm

175kg



cooling-water machine: 550*550*850mm

80kg



workbench: 1000*700*1550mm

220KG

Video Tutorials & Instructional Video:

Sample Display:

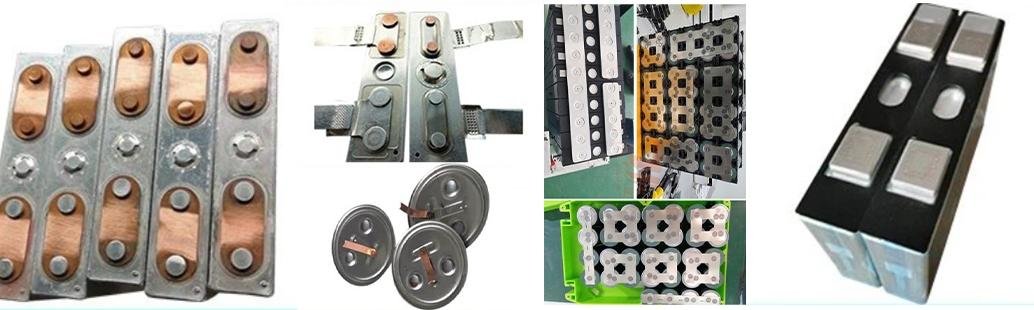

Machine Application:

Being widely used on aviation, machinery, mobile manufacture, communications, chemical industry, electrical equipment, hardware and automobile manufacture

Automobile Spare Parts: hydraulic jacking lever, filter, sensor, electromagnetic valve

Lithium Battery: columnar nut cap

Mobile phone: tab, backboard

Electronic Industry: sensor, motor rotor, capacitance, relay

Gantry Galvanometer Continuous Fiber Laser Welding Machine

How to Play Order:

  1. Will you please inform us the below information?
  • What material will you weld? Stainless steel, iron, carbon steel, aluminum, galanized sheet?
  • What is welding thickness for each kind of metal?
  1. We would like to recommend you suitable laser welding power 1kw 1.5kw 2kw accordingly and offer you our best price.
  2. Will you ship machine by sea, by air? So, please tell us your nearest sea por, air port. We would like to check freight fee for you.
  3. After you confirm machine model, power, price, freight fee, then please inform us your consignee information ( company name, address, contact, phone number ) we will make Proforma Invoice for you to play order.
  4. You can remit the payment according to Proforma Invoice.
  5. Machine will be ready 10-12 working days after your payment.
  6. We will share with you machine photos and videos since machine is ready.
  7. After confiming all is fine, we will book shipment.
  8. We will share with you bill of lading, commercial invoice, packing list after shipment.
  9. You can operate laser welding machine according to user video and user manual.
  10. If any questions about using, we would like to guide you online.
