CNC Oscillating Knife Cutting Machine with CCD Camera

CNC Oscillating Knife Cutting Machine

Rating:

CNC oscillating knife cutting machines are used for cutting a variety of materials such as leather, fabric, cardboard, foam, and other soft materials.

MORE



Main Feature:

1. Computer Numerical Control (CNC): These machines are operated by computer numerical control, which means that they can be programmed to perform precise cuts and shapes.
2. Oscillating Knife: The cutting tool on these machines is an oscillating knife, which moves back and forth at high speeds to make clean cuts on the material.
3. Versatility: CNC oscillating knife cutting machines can be used to cut a wide range of materials, including leather, fabric, foam, cardboard, and more.
4. Precision: These machines are known for their high precision cutting capabilities, allowing for intricate and complex shapes to be cut with ease.
5. Efficiency: CNC oscillating knife cutting machines are designed to be highly efficient, with fast cutting speeds and minimal material waste.
6. Automated Material Feeding: Some models of CNC oscillating knife cutting machines come equipped with automated material feeding systems, which can help to increase productivity and efficiency.
7. User-Friendly Interface: Many CNC oscillating knife cutting machines feature user-friendly interfaces that make it easy to program and operate the machine.
8. Safety Features: These machines are designed with safety features such as emergency stop buttons and protective enclosures to keep operators safe during use.

Machine Configurations:

CNC Oscillating Knife Cutting Machine
Pneumatic Cutting Tool

Different cutting tools can be changed easily for different industries.

CNC Oscillating Knife Cutting Machine
Taiwan Delta sever motor

High torque, strong overload capability and high precision, Fast heat dissipation, suitable for long hours of work

CNC Oscillating Knife Cutting Machine
Taiwan Delta sever motor

High torque, strong overload capability and high precision, Fast heat dissipation, suitable for long hours of work

CNC Oscillating Knife Cutting Machine
RDD6584G Controller

It integrates the processing of Oscillating knife tool, Wheel knife tool, Electric milling cut tool, Creasing tool, etc.

CNC Oscillating Knife Cutting Machine
RDD6584G Controller touch panel

RDD6584G support different languages, easy to operate.

CNC Oscillating Knife Cutting Machine
Safety Device

Equipped with infrared automatic sensor device,the Safety Device provides a safe working environment.

CNC Oscillating Knife Cutting Machine
Vacuum pump

9kw Vacuum pump can better adsorb materials and process more stable. High power,high suction,make sure the materials always keep smoothly during cutting.

CNC Oscillating Knife Cutting Machine
Linear Guide and gear rail

PMI rail high-speed high precision cutting and improve work efficiency.

CNC Oscillating Knife Cutting Machine
Honeycomb aluminum plate adsorption platform

4mm Honeycomb aluminum plate adsorption platform

CNC Oscillating Knife Cutting Machine
CNC Oscillating Knife Cutting Machine
CNC Oscillating Knife Cutting Machine
CNC Oscillating Knife Cutting Machine
CNC Oscillating Knife Cutting Machine
Plywood Package

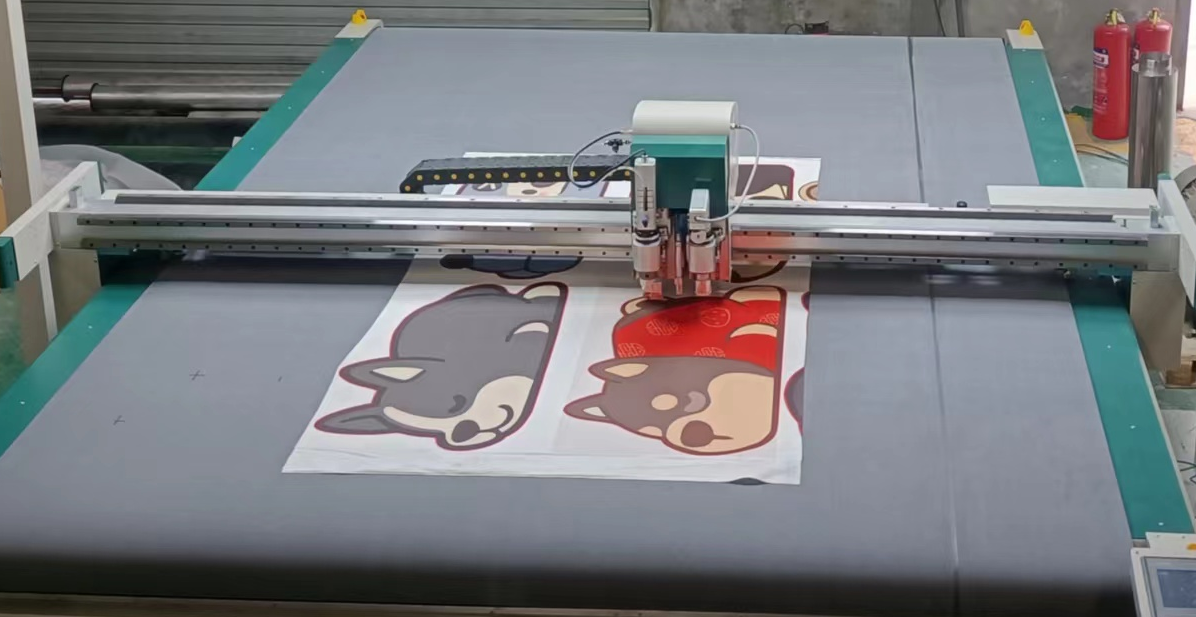

cnc oscillating knife cutting machine with CCD

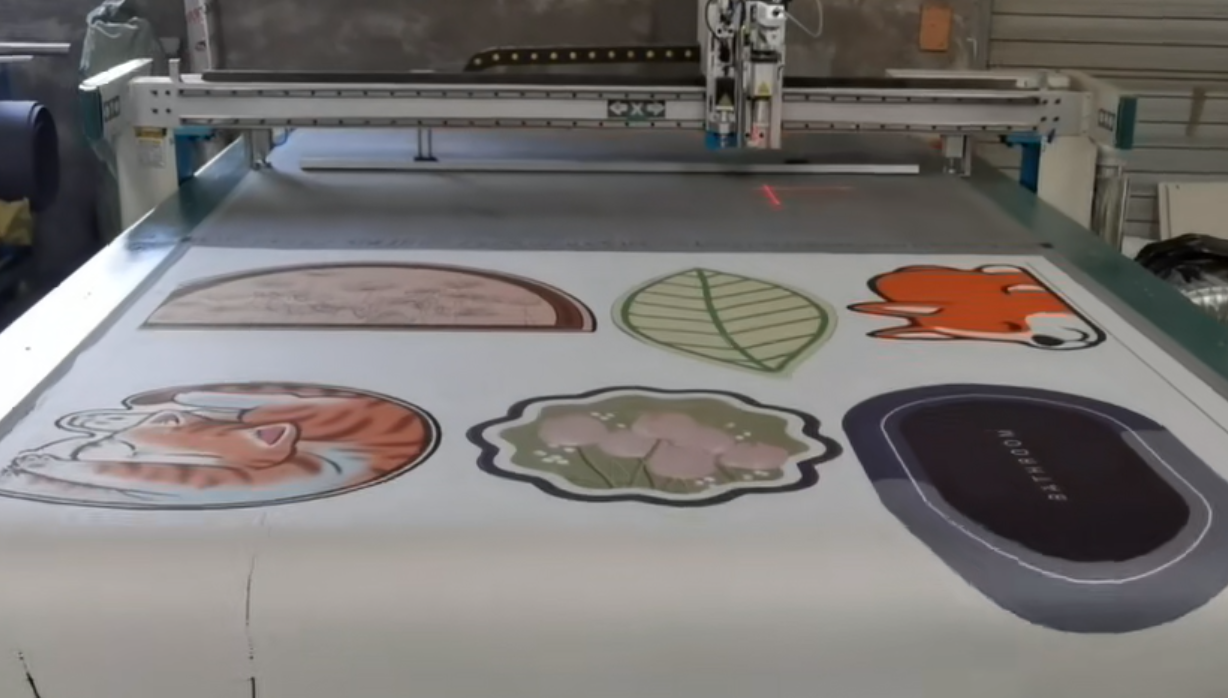

CNC Oscillating Knife Cutting Machine with CCD
CNC Oscillating Knife Cutting Machine with CCD

Machine Optional Parts:

CNC Oscillating Knife Cutting Machine
8 zones adsorption Optional

If without 8 zones adsorption, the whole table will be adsorbed directly during working, if we set 8 zone, The adsorption area will be adsorbed with the moving position of the cutting head. The working area of material can be adsorbed better.

CNC Oscillating Knife Cutting Machine

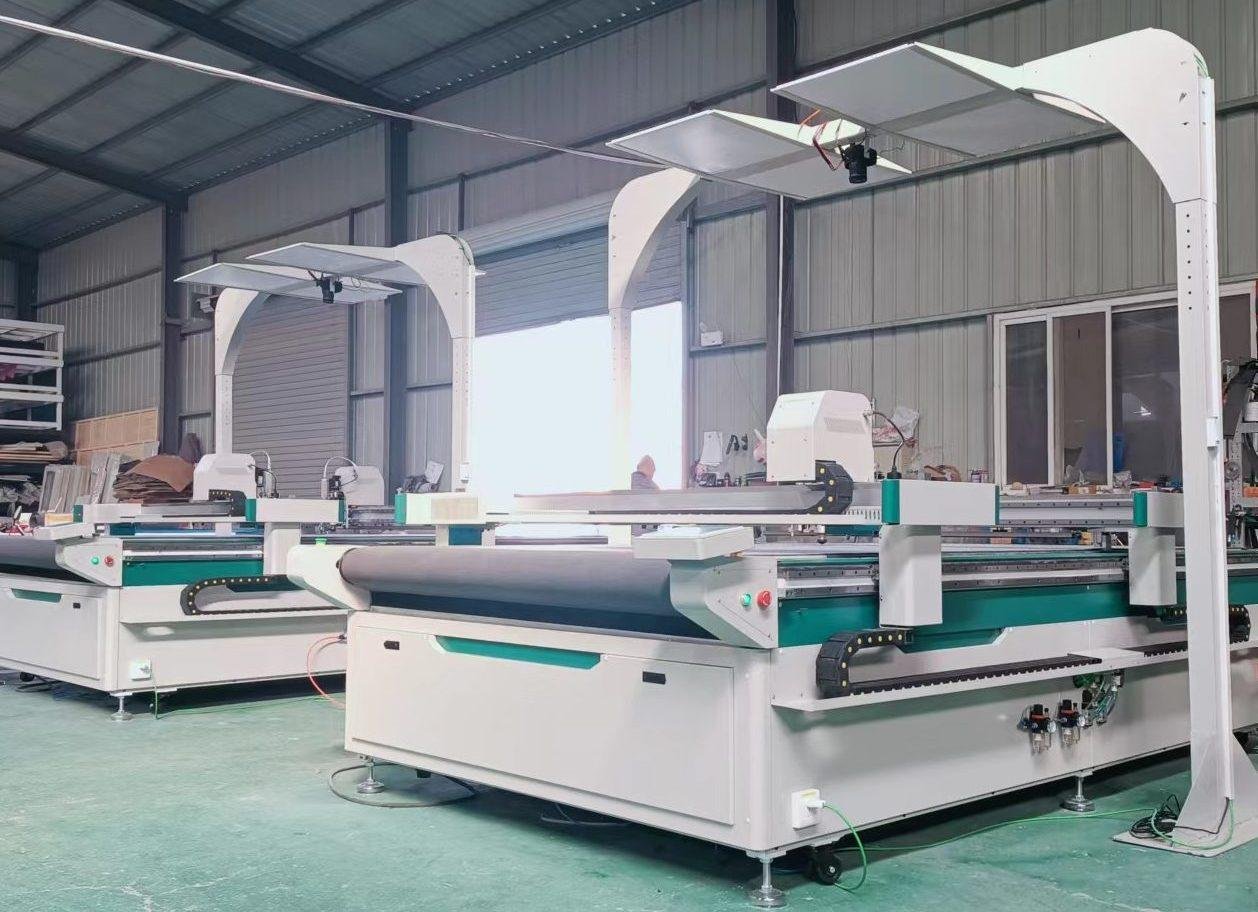

Double knife holder CCD camera Optional

We can choose double knife holder or three knife holder for different cutting tools according to different material cutting. CCD camera positioning, it can cut automatically according to CCD camera positioning.

CNC Oscillating Knife Cutting Machine
Different Cutting Tool

You can choose different cutting tool according to different cutting materials. Creasing Tool, U cut, V-cut, Oscillating Tool, Pneumatic cutting tool, Round Knife Tool

Machine Parameters:

Model

CS-1625

Working Area

1600X2500mm

Fixed Mode

Flat plate table or Auto feeding plate table optional

Cutting thickness

≤40mm according to material, can customize

Maximum working speed

≤7000mm/s

repeated positioning accuracy

0.05mm

Servo resolution

0.01mm

Transmission

Linear guide rail, industrial rack drive

Working Voltage

380V/50HZ

Vacuum Pump

7.5kw

Driver And Motor

Taiwan Delta servo motor drive.

Operating System

Ruida Control System

Data Transfer Way

Ethernet Port or USB

Support file format

CAD、CDR

Applicable Materials

PVC EVA, Silver board clothing cloth, leather, carpet, and all flexible materials.

Package

Plywood Package

Package Size and Gross Weight

3405X2285X1600mm  1000KG

Sample Display:

Automotive interior
Foot pad + seat cover + seat cushion + steering wheel cover + light-proof pad, etc.
Sofa home renovation industry:
Leather+fabric+carpet+soundproof material+soft glass, etc.
Advertising industry:
KT board + UV advertising paper (cloth) + Chevron board + foam characters + acrylic + PVC, etc.
Packaging industry:
Corrugated paper + coated paper + white cardboard + gray board + hollow board + EVA, etc.
Bags and shoes industry:
Genuine leather + single layer leather + multi-layer composite leather, etc.
Other industry
Carbon fiber + leather + sealing gasket, etc.

cnc oscillating knife cutting machine with CCD
cnc oscillating knife cutting machine with CCD
CNC Oscillating Knife Cutting Machine

Video Tutorials & Instructional Video:

How to Play Order:

  1. Will you please inform us the below information?
  • What material will you cut?
  • What is your maximum working area?
  • What’s the cutting thickness?
  1. We would like to recommend you suitable cnc oscillating cutting machine accordingly and offer you our best price.
  2. Will you ship machine by our shipping company,  please tell us your nearest sea port,  We would like to check freight fee for you.
  3. After you confirm machine model,  price, freight fee, then please inform us your Consignee Information ( company name, address, contact, phone number ) we will make Proforma Invoice for you to play order.
  4. You can remit the payment according to Proforma Invoice.
  5. Machine will be ready 10 working days after your payment.
  6. We will share with you machine photos and videos since machine is ready.
  7. After confiming all is fine, we will book shipment.
  8. We will share with you bill of lading, commercial invoice, packing list after shipment.
  9. You can operate machine according to user video and user manual.
  10. If any questions about using, we would like to guide you online.
