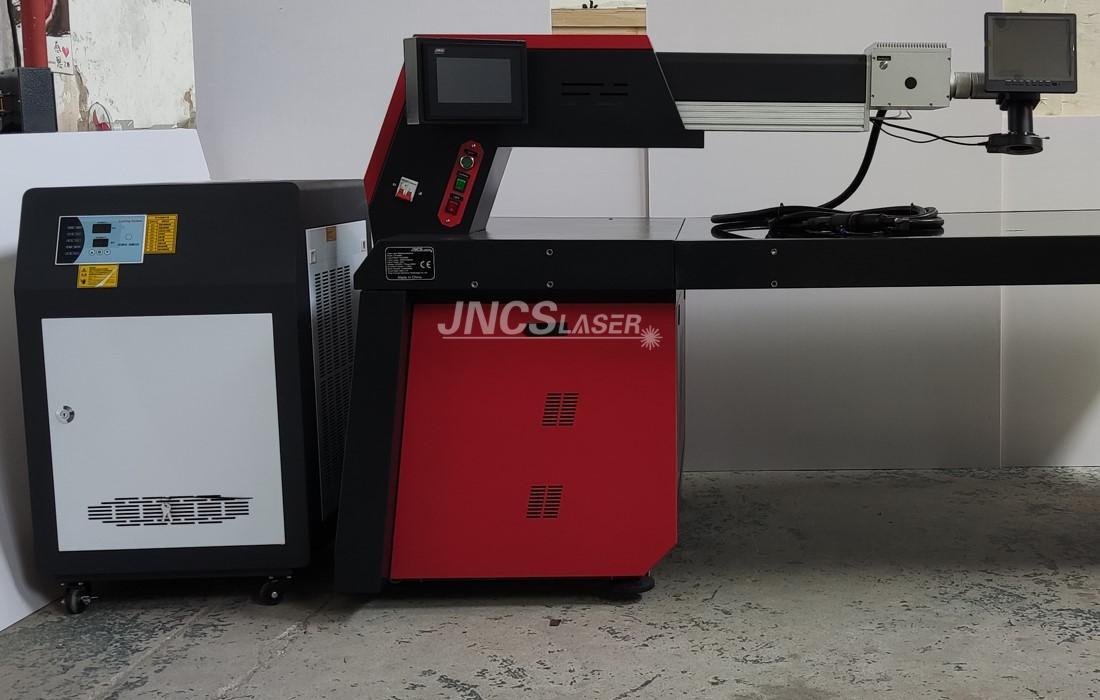

Channel Letter YAG Laser Welding Machine

CHANNEL LETTER LASER WELDING MACHINE

Rating:

Factory Directly Supply 300W 500W Metal Letter Laser Welding Machine is used for the welding of LED illuminated billboard, exterior/interior signs, branding, door plate that made of aluminum, S/S, iron, galvanized sheet, titanium, brass, copper, and etc. Laser beam with high energy melts two metal sheets and combine them together without feeding any soldering materials. From any aspect, laser welding is the best solution and the greenest.

Main Feature:

1. Red light spot fast positioning, CCD display, microscope optional
2. High working speed: 6 times faster then traditional TIG or MIG welding
3. Slight distortion and less heating affect.
4. Capable of partial heating process.
5. Able to deal with complex, profiled, or tiny letters.
6. Low noise and no pollution.
7. Ultrafine positioning rod makes corner welding easier without changing position
8. Laser cavity can move in all directions manually in order to weld letters of different size and in different shape
9. Parameter setting is very easy; up to 10 sets of parameters can be memorized for different application

Machine Configurations:

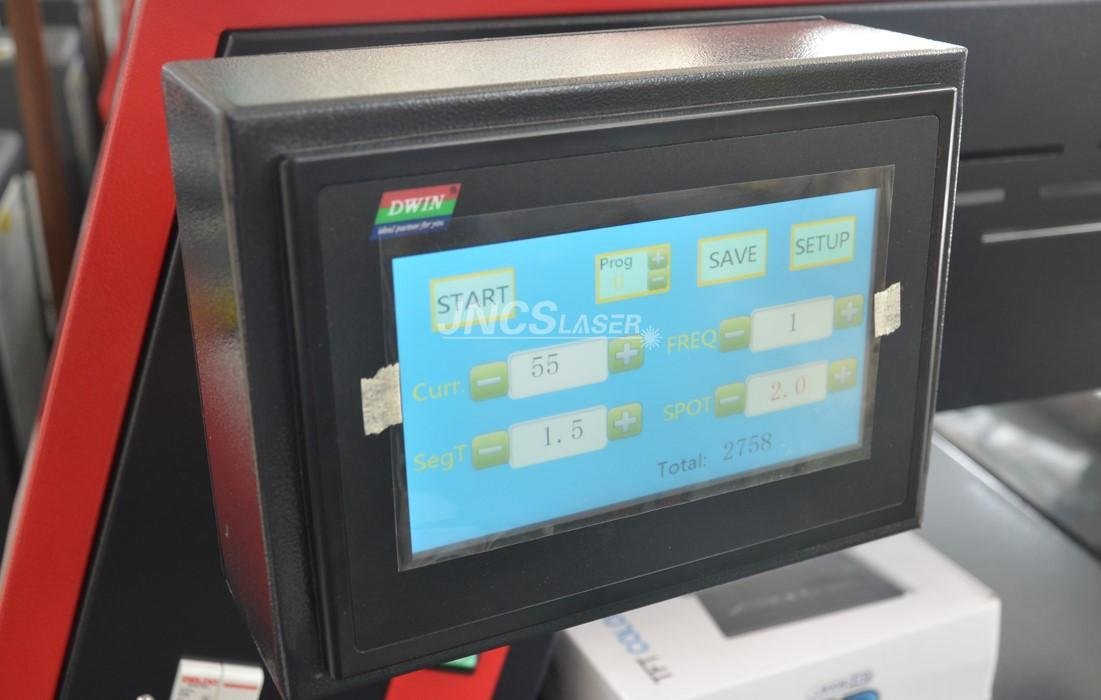

LCD touch screen, parameter setting

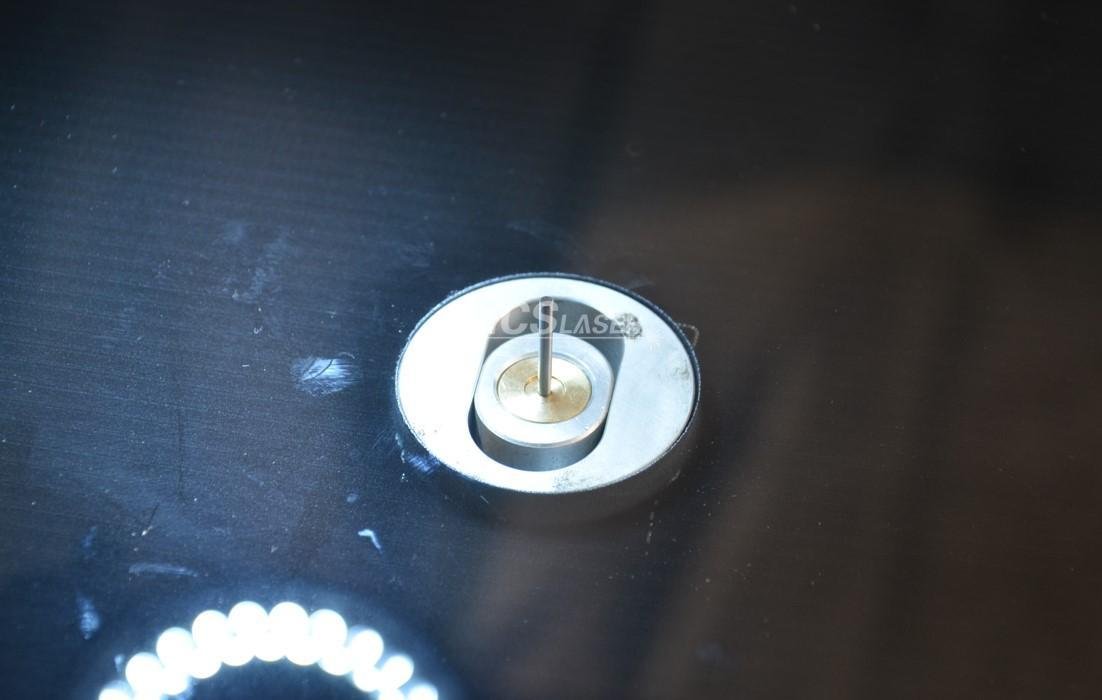

Positioning Pin, it is easy to weld channel letter

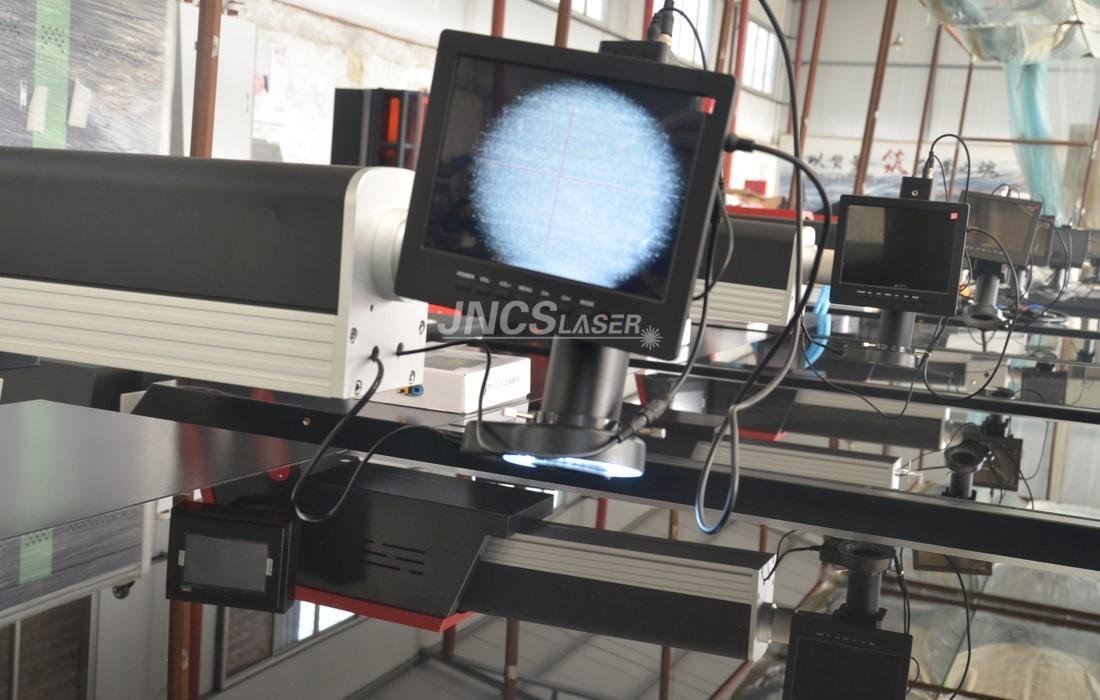

CCD visual observation,convenient to adjust light spot size and position of solder joint.

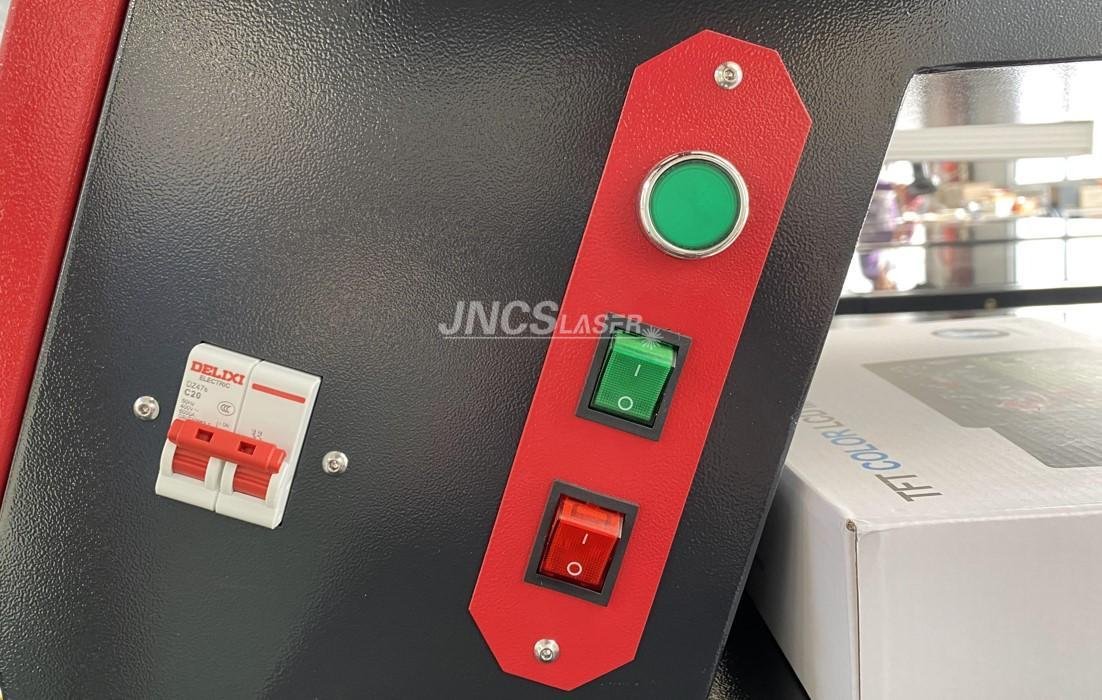

Control button: start, light, CCD

Industrial water chiller

hot sale channel letter laser welder

Machine Selectable:

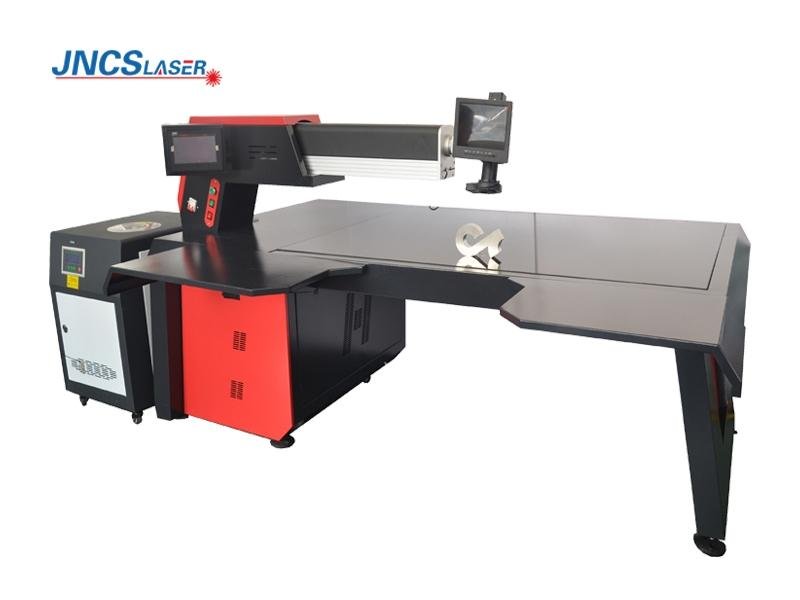

Laser Welding Machine without Handheld Head

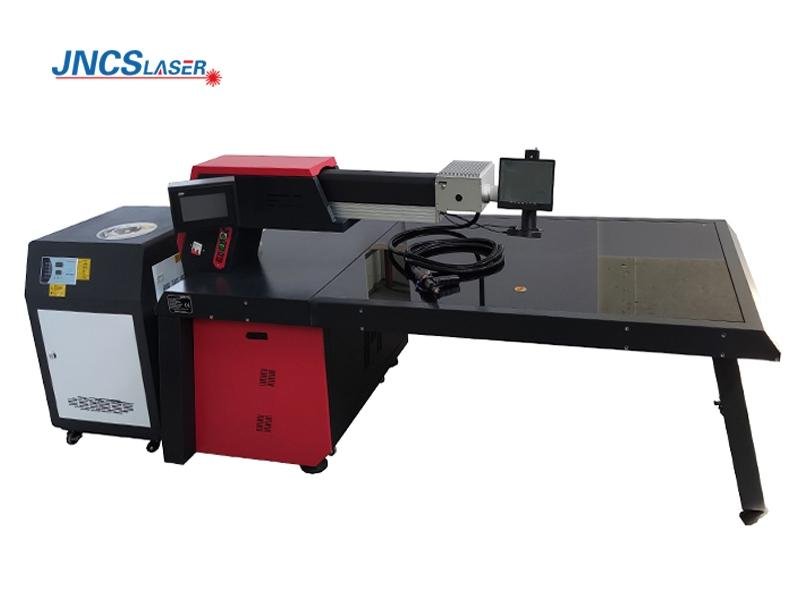

Laser Welding Machine with Handheld Head

Machine Parameters:

Model

CS 300W

CS 500W

CS300F

CS500F

Product

300W

Laser welding machine

500W

Laser welding machine

300W Dual Laser Path and Hand-held

Laser welding machine

500W Dual Laser Path and Hand-held

Laser welding machine

Mechanical Part

The laser cavity length1200mm ,Laser Head rotary 360 degree。

Work Table Size

750*1000

Bearing weight

≤200KG

Voltage

220V±10%/50/60Hz

380V±10%/50/60Hz

220V±10%/50/60Hz

380V±10%/50/60Hz

Laser Mode

Nd:YAG Pulsed xenon lamp

Adjustable facular size

0.2-3.0mm

Laser wave length

1064nm

Pulse90J

≤10ms

Laser Power

300W

500W

300W

500W

Single power energy

90J

120J

90J

120J

Frequency

≤100Hz

≤100Hz

≤100Hz

≤100Hz

Focal Length

180-230mm

180-230mm

180-230mm



180-230mm

Cooling

Water cooling

refrigerating capacity

2700W

5000W

2700W

5000W

Power

<7KW

<12KW

<7KW

<12KW

Positioning

CCD

 Machine size



Table size

Water chiller size

1640*800*1240mm

1000*750*800mm

450*570*850mm

1640*800*1240mm

1000*750*800mm



1450*820*1200mm

700*500*900mm

1450*800*1100mm

900*700*900mm

900*600*700MM(power)

Machine Package



Chiller package

1750*850*1300mm

530*660*1010mm

1750*850*1300mm

530*660*1010mm

1530*830*1250mm

720*510*970mm

1530*810*1200mm

960*760*1150mm

960*670*970mm

Gross weight

280KG

430KG

300KG

450KG

Video Tutorials & Instructional Video:

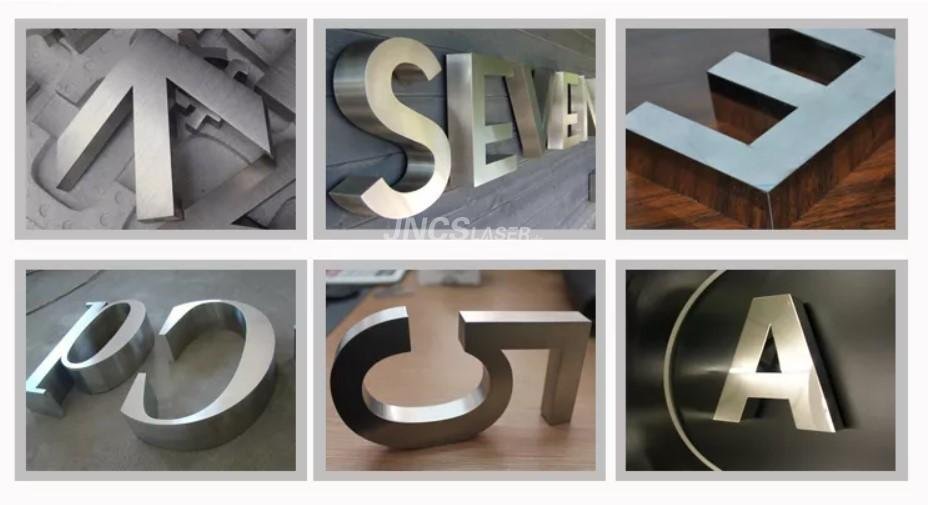

Sample Display:

Application:

Factory Directly Supply 300W 400W Metal Letter Laser Welding Machine is applied for the welding of various metal letters, LED illuminated letters,customized metal signage, exterior billboards and metal support.

Applicable Materials:

Factory Directly Supply 300W 400W Metal Letter Laser Welding Machine can weld Aluminum, S/S, Iron, Galvanized sheet, Titanium, Brass, Copper, and etc
