300W 500W Pulsed Fiber Laser Cleaning Machine for motor-engine, tire moulds

Pulsed Fiber Laser Cleaning Machine for Rust Paint Oil Removing

Rating:

Laser cleaning is a new technology based on the interaction of laser and matter, which can achieve the effect of removing contamination and attachments on the surface of objects. Compared with traditional cleaning methods, laser cleaning has the advantages of non-contact, no damage to the substrate, precise cleaning, “green” environmental protection and online availability, and is especially suitable for high-speed online cleaning in designated areas.

MORE



Main Feature:

A pulsed fiber laser cleaning machine is a type of laser cleaning equipment that utilizes pulsed laser technology for efficient and precise cleaning applications. It provides a focused and high-energy laser beam that interacts with the surface contaminants, removing them through various mechanisms such as ablation, vaporization, and shockwave generation. Here are the main features and characteristics of a pulsed fiber laser cleaning machine:

Pulsed Laser Technology: The machine employs a pulsed fiber laser as its energy source. Pulsed lasers emit high-intensity laser pulses with controlled durations and repetition rates. This allows for precise control over the energy delivered to the surface, optimizing the cleaning process.
Versatile Cleaning Capabilities: Pulsed fiber laser cleaning machines can effectively remove a wide range of contaminants, including rust, paint, oxides, grease, oil, coatings, residues, and more. They can be used on various surfaces, including metals, plastics, composites, ceramics, and delicate materials.
High Cleaning Efficiency: The pulsed laser technology used in these machines provides high cleaning efficiency. The intense laser pulses rapidly heat and vaporize the contaminants, causing them to be expelled from the surface. This enables quick and thorough cleaning, even in hard-to-reach areas.
Non-contact and Non-abrasive Cleaning: Pulsed fiber laser cleaning is a non-contact and non-abrasive method. The laser energy removes contaminants without physically touching the surface, minimizing the risk of surface damage or scratches. It eliminates the need for chemical solvents, sandblasting, or mechanical scrubbing, making it a gentle yet effective cleaning solution.
Precise Control and Customization: Pulsed fiber laser cleaning machines offer precise control over various cleaning parameters, such as pulse duration, energy, repetition rate, and scanning patterns. This allows operators to customize the cleaning process according to the specific requirements of the application, ensuring optimal results.
Environmentally Friendly: Pulsed fiber laser cleaning is an environmentally friendly cleaning method. It does not involve the use of chemicals or generate harmful by-products. Additionally, it significantly reduces the generation of waste compared to traditional cleaning methods.
Compact and Portable Design: These machines are designed to be compact and portable, allowing for easy maneuverability and flexibility in various work environments. They can be handheld or mounted on robotic systems, making them suitable for both stationary and mobile cleaning operations.
Pulsed fiber laser cleaning machines are widely used in industries such as automotive, aerospace, electronics, manufacturing, and cultural heritage preservation. They provide a precise, efficient, and eco-friendly solution for a wide range of cleaning applications, enabling improved productivity and quality in surface preparation and maintenance processes.

Machine Configurations:

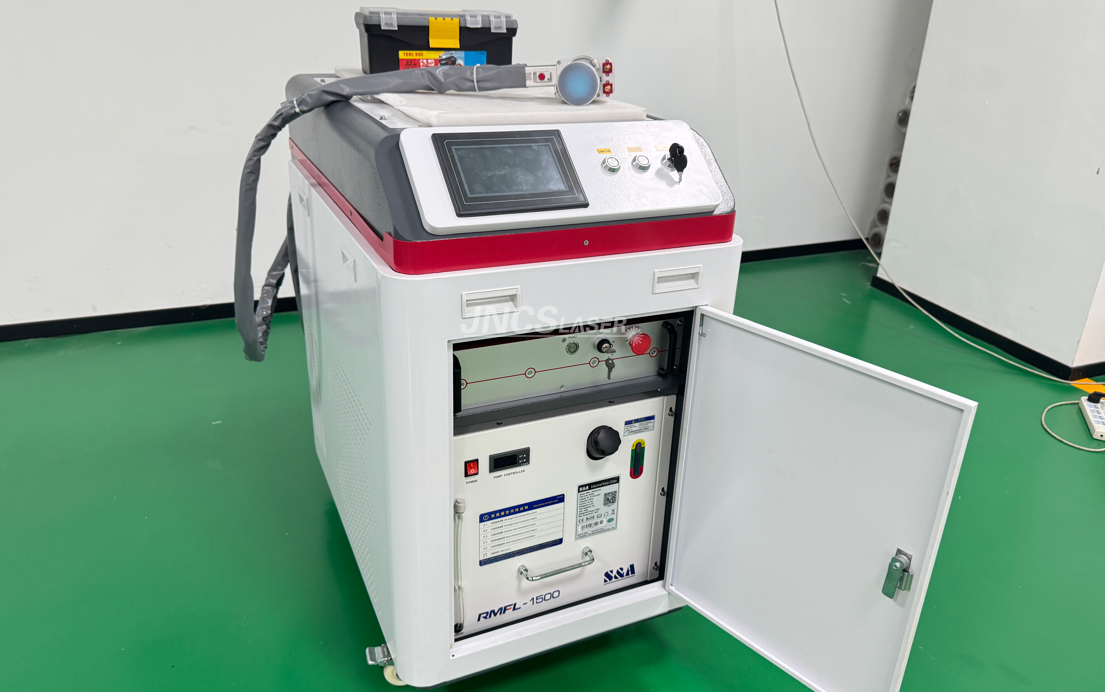

300W 500W Pulsed Fiber Laser Cleaning Machine for motor-engine, tire moulds
Handheld cleaning head with touch screen panel

Light shape, economic deign, High speed

300W 500W Pulsed Fiber Laser Cleaning Machine for motor-engine, tire moulds
300w 500w pulsed fiber laser cleaning machine

optional 200w 300w 500w

300W 500W Pulsed Fiber Laser Cleaning Machine for motor-engine, tire moulds
Handheld cleaning head with touch screen panel

Light shape, economic deign, High speed

300W 500W Pulsed Fiber Laser Cleaning Machine for motor-engine, tire moulds
Handheld pulsed fiber laser cleaning machine size

small size, easy to move

Machine Parameters:

Operating environment

Content

 CS-FLC500M

Supply voltage

Single phase220V±10% 、50/60Hz AC

Power consumption

≤5000W

Working environment

temperature

0℃~40℃

Working environment

humidity

≤80%

Optical parameters

Average laser power

≥500W

Power instability

<5%

Laser Working Mode

Pulse

Pulse width

10-500ns

Maximum monopulse

energy

15mJ-50mJ

Power regulation range(%)

0- 100( Gradient Adjustable)

Repeat frequency(kHz)

1-3000(Gradient Adjustable)

Fiber length

10m

Cooling mode

Water cooling

Cleaning Head Parameters

Scan range (length * width)

0mm~ 145 mm, continuously adjustable;

supporting 8 scanning modes

Scanning frequency

The maximum is not less than 300Hz

Field mirror focal length

(mm)

210mm( Optional 160mm/254mm/330mm/420mm)

Mechanical parameters

Machine size(Length, width and height)

About 1055mm*623mm*1105mm

Size after packing(Length, width and height)

About 1230mm*750mm*1280mm

Machine Weight

About 240Kg

Weight after packing

About 265Kg

Sample Display:

Machine Application:

Handheld laser cleaning machine uses high-frequency and high-energy laser pulses to irradiate the surface of the workpiece, so that the surface oil, rust or coating evaporates or peels instantly, and effectively removes thesurface attachment or surface coating of the cleaning object at a high speed, so as to achieve the cleaning of the object. It is characterized by no damage to the part matrix, no consumables, energy saving and environmental protection.

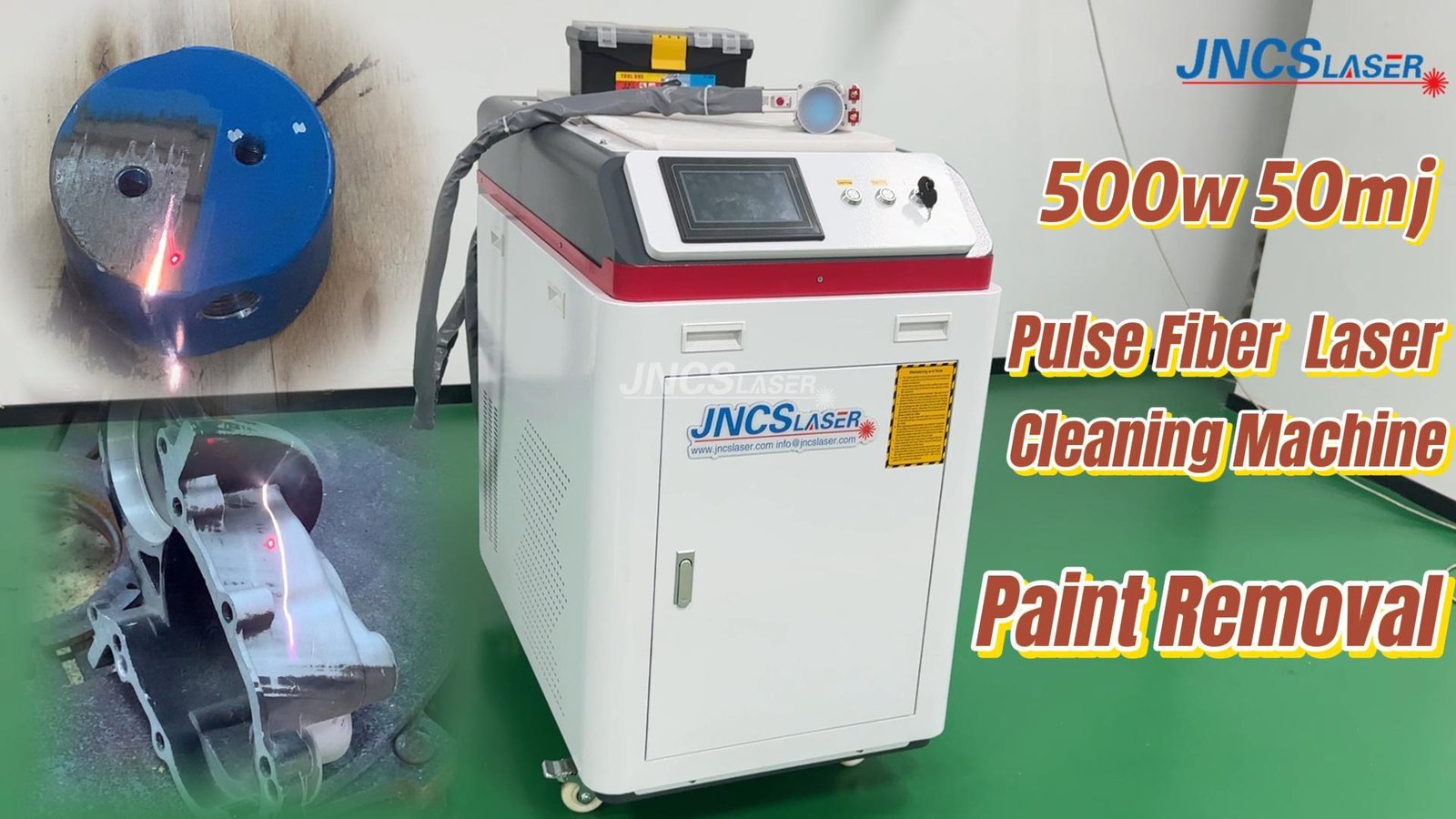

fiber laser cleaning machine for rust oil paint

Video Tutorials & Instructional Video:

How to Play Order:

  1. Will you please inform us the below information?

What material will you clean? Rust, paint, oil?

  1. We would like to recommend you suitable laser cleaning power 200w 300w 500w accordingly and offer you our best price.
  2. Will you ship machine by sea, by air? So, please tell us your nearest sea por, air port. We would like to check freight fee for you.
  3. After you confirm machine model, power, price, freight fee, then please inform us your consignee information ( company name, address, contact, phone number ) we will make Proforma Invoicefor you to play order.
  4. You can remit the payment according to Proforma Invoice.
  5. Machine will be ready 10-12 working days after your payment.
  6. We will share with you machine photos and videos since machine is ready.
  7. After confiming all is fine, we will book shipment.
  8. We will share with you bill of lading, commercial invoice, packing list after shipment.
  9. You can operate laser welding machine according to user video and user manual.
  10. If any questions about using, we would like to guide you online.
