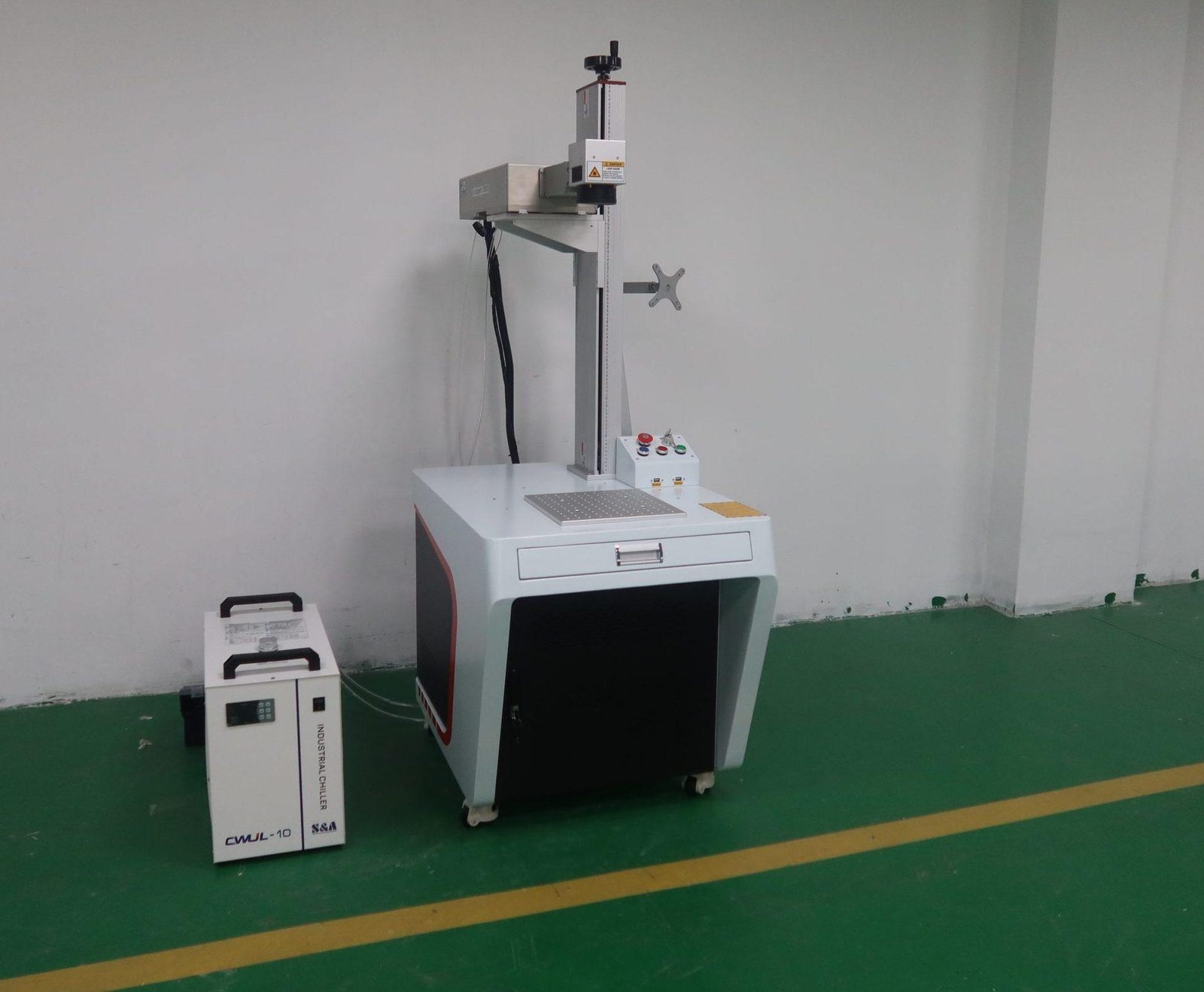

15W 400*400mm UV Laser Marking Machine for marking plastic metal wood leather glass
High Quality UV Laser Marking Machine
High precision UV laser marking machine adopts Ultraviolet laser which is mainly used in ultra-fine marking for plastics, including PC (polycarbonate), PP (polypropylene), PE (polyethylene), PA, ABS, PMMA, silicon, ceramics and crystal glass, now the UV laser engraving machine for sale at affordable price.
UV laser marking machine is also called UV laser engraving machine, which has high beam quality and small spot, and the processing of heat affected area is small, which can be used for ultra-fine marking, special material marking. UV laser marking machine is suitable for processing more extensive materials, such as plastics, including PP (polypropylene), PC (polycarbonate), PE (polyethylene), ABS, PA, PMMA, silicon, glass and ceramics.
Main Feature:
- Perfect marking quality: 355nm output wavelength to reduce the thermal impact on the workpiece, high-precision galvanometer marking head can ensure fine and repeatable marking, high-precision fine spot to ensure the perfect marking results, The marking process is non-contact, the marking effect is permanent.
- UV laser engraver machine has a large marking range.
- Heat affected area is very small, there will be no thermal effect, the material is not deformed and charred.
- High speed and high efficiency.
- Machine performance is stable, small size, low power consumption.
- The UV laser engraving machine is suitable for heat radiation reaction of large materials processing, if it’s used for the production line with the automatic loading and unloading, it can realize automatic access to materials. It’s suitable for the vast majority of metal and non-metallic materials on the marking industry.
Machine Configurations:
Brand Name: RFH laser High quality Precise position
Brand Name: Beijing JCZ Support Rotary Software: Ez cad Support: Windows system WinXP Win7 Win8 Win10
Brand Name: Nanjing CRD Working Area: 110X110mm 140X140mm 210X210mm 300X300mm
Foot Switch Protect Goggles U disk with software Spanner Keys Screws Ruler Power Cable
Brand Name: Beijing Sino Galvo High speed, high precision
Optional power: 3w 5w 10w
1. Plastic Film 2. Foam 3. Plywood Package
Machine Optional Parts:
It is used for fixing metal sheet when cutting. It will be choosed by 50w 100w big power machine.
It is suitable for 5-120mm diamater cylinder. It can bear within 20Kg cylinder.
It can be moved left and right, Front and back.
Smoke purifier is mainly used for the purification of smoke and dust produced in marking, cutting, and other processes as well as the recovery of rare metals and precious materials
It can be put 24 pcs pens.
Diameter: 80mm
Diameter: 80mm
Machine Parameters:
|
Model |
CS-UV15W |
|
Wave length of laser |
355nm |
|
Laser output power |
15W |
|
Marking speed |
400 characters per second |
|
Beam quality |
<1.1 |
|
Repeated accuracy |
±0.001mm |
|
Working area |
400*400mm |
|
Machine power |
800W |
|
Minimal character |
0.1mm |
|
Cooling ways |
Water Cooling |
|
Power supply |
220V/ 50Hz/2kVA |
|
Minimum line width |
0.015mm |
|
Support format |
PLT, BMP, DXF, JPG, TIF, AI etc |
|
Cooling system |
Air cooling |
|
Package size |
132CM L X76CM W X158CM H |
|
Gross weight |
240KG |
