1500W Air Cooling 4 in 1 Handheld Fiber Laser Welding Cleaning Cutting Machine | JNCSLASER
Portable Air Cooling Laser Welding Machine no water chiller
Laser welding is a new type of welding method and one of the important aspects of the application of laser material processing technology. Laser welding is mainly for the welding of thin-walled materials and precision parts. The welding process is of thermal conductivity type, that is, the surface of the workpiece is heated by laser radiation,
Main Feature:
Our 1500W air cooling 4 in 1 handheld fiber laser welding cleaning cutting machine adopts Shenzhen Maxphotonics fiber laser source, integrating welding, rust cleaning, weld bead polishing and metal cutting four functions. Equipped with air cooling system without bulky water chiller, the whole machine only weighs 46.5kg, portable for on-site metal repair. It can weld stainless steel up to 3mm, aluminum up to 2mm, widely used in automotive, metal fabrication and aerospace industry.
Machine Configurations:
Machine size and Weight:
- Machine size: Length 60cm Width: 39cm Height: 58cm
- Wire feeder size: Length: 57cm Width: 25cm Height: 48cm
- Machine Net Weight: 46.5kg
- Wire feeder Net Weight: 12kg
Fiber Laser Source: shenzhen Max. Air cooling 1500w
- The MFSC series single-mode continuous fiber laser is developed by Shenzhen Max. Laser with high efficiency, high reliability and high performance
- The continuous fiber laser series, with a wavelength range of 1070nm to 1090 nm, is ideal for portable laser applications illuminant.
SUP21T Touch Screen Control Panel: Easy to operate, interactive control system expand the tolerance range and welding width of the processing parts, have processing library for different metal material and thickness. Support Russian, English, Japanese, Korean, German, Portuguese, Spanish, Arabic Language. Support welding, cleaning, cutting.

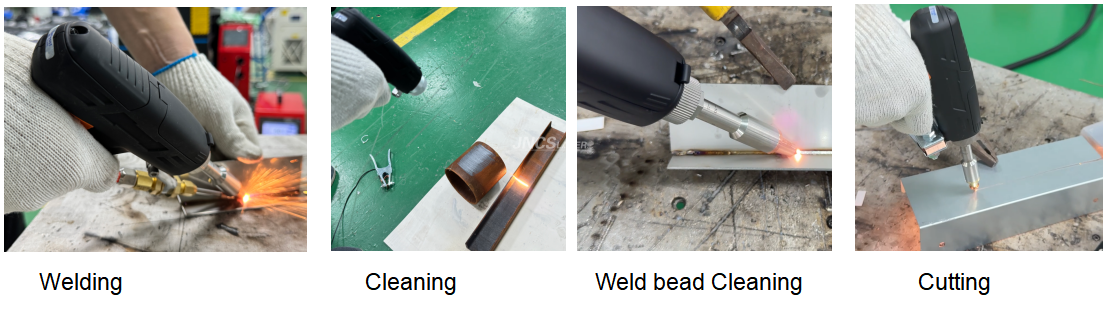

Single Wobble handheld welding head+ Control system Light shape, economic deign,it offers so much welding convenience for welding.Intelligent Single Pendulum Handheld Welding Head, Welding + cleaning+weld bead cleaning + cutting. Four-in-one.
Automatic Wire feeder device: ordinary machine is single wire feeding device, optional is double wire feeding device. Normally we use single wire feeding device if there is no gap and little gap. If the gap is big, we would like to recommend you choose double wire feeding device. the welding wire diameter is related with the welding metal sheet thickness. 1mm thickness metal use 0.8mm welding wire, 1.5mm thickness metal use 1.0 or 1.2mm welding wire, 3mm thickness metal, use 1.6mm welding wire.
Different Nozzle: machine was equipped with different welding nozzles
Machine Package :
Machine Parameters:
Machine Name | Air Cooling Handheld Fiber Laser Welding Machine |
Laser Power | 1500W |
Laser Wave Length | 1080nm |
Laser Source | Shenzhen Max. |
Cooling Mode | Air cooling |
Working environment temperature | -20 to 40 degree |
Type of welding gun interface | QBH |
Wobble Width | 0-4mm |
Gas source | 0.2Mpa (Argon ) |
Working Voltage | AC220V / 50Hz / 60HZ |
Fiber Laser Length | 10m |
Net Weight | Machine Net Weight: 46.5KG Wire feeder: 12KG |
Package size and gross weight | 82*77*80cm 94kg |
1200W | ||||
Stainless Steel | Iron | Carbon Steel | Aluminum | White Galvanized sheet |
2mm | 2mm | 1.7-2mm | 1.5mm | 1.5mm |
1500W | ||||
Stainless Steel | Iron | Carbon Steel | Aluminum | White Galvanized sheet |
3mm | 3mm | 1.7- 2.5 mm | 2mm | 1.5-2.5mm |
Sample Display:
Machine Application:
Automotive Industry:
- Welding of body panels, exhaust systems, battery components, and structural parts.
- Repair and maintenance of automotive parts.
Aerospace Industry:
- Precision welding of lightweight materials and complex aerospace components.
- On-site repairs and assembly of aircraft parts.
Electronics and Electrical Industry:
- Welding of small, delicate components in electronic devices.
- Assembly of electrical connectors and enclosures..
Custom Metal Fabrication:
- Creation of bespoke metal structures, artistic sculptures, and decorative items.
- Welding of metal frames, brackets, and supports.
General Manufacturing:
- Assembly of machinery and industrial equipment.
- Welding of metal housings, frames, and fixtures.
Video Tutorials & Instructional Video:
How to Play Order:
- Will you please inform us the below information?
- What material will you weld? Stainless steel, iron, carbon steel, aluminum, galanized sheet?
- What is welding thickness for each kind of metal?
- We would like to recommend you suitable laser welding power 1kw 1.5kw 2kw accordingly and offer you our best price.
- Will you ship machine by sea, by air? So, please tell us your nearest sea por, air port. We would like to check freight fee for you.
- After you confirm machine model, power, price, freight fee, then please inform us your consignee information ( company name, address, contact, phone number ) we will make Proforma Invoice for you to play order.
- You can remit the payment according to Proforma Invoice.
- Machine will be ready 10-12 working days after your payment.
- We will share with you machine photos and videos since machine is ready.
- After confiming all is fine, we will book shipment.
- We will share with you bill of lading, commercial invoice, packing list after shipment.
- You can operate laser welding machine according to user video and user manual.
- If any questions about using, we would like to guide you online.
