100W Backpack Pulsed Fiber Laser Cleaning Machine

Pulsed Fiber Laser Cleaning Machine for Rust Paint Removing

Rating:

Laser cleaning is a new technology based on the interaction of laser and material, which can achieve the effect of removing surface pollution and attachment. Compared with traditional cleaning methods, laser cleaning has the advantages of non-contact, no damage to the substrate, accurate cleaning ,” green “environmental protection and on-line, especially suitable for high-speed on-line cleaning in designated areas.

MORE



Main Feature:

  • non-contact cleaning without damaging the matrix of the parts;

  • accurate cleaning, can achieve precise position, accurate size selective cleaning;

  • do   not   need   any   chemical   cleaning   liquid,   no   consumables,   safety   and environmental protection;

  • simple operation, hand-held or with the manipulator to achieve automatic cleaning;

  • ergonomics design, operating labor intensity greatly reduced;

  • trolley design, with its own moving wheel, easy to move; High ◎ cleaning efficiency, save time;

  • laser cleaning system is stable with little maintenance;

.

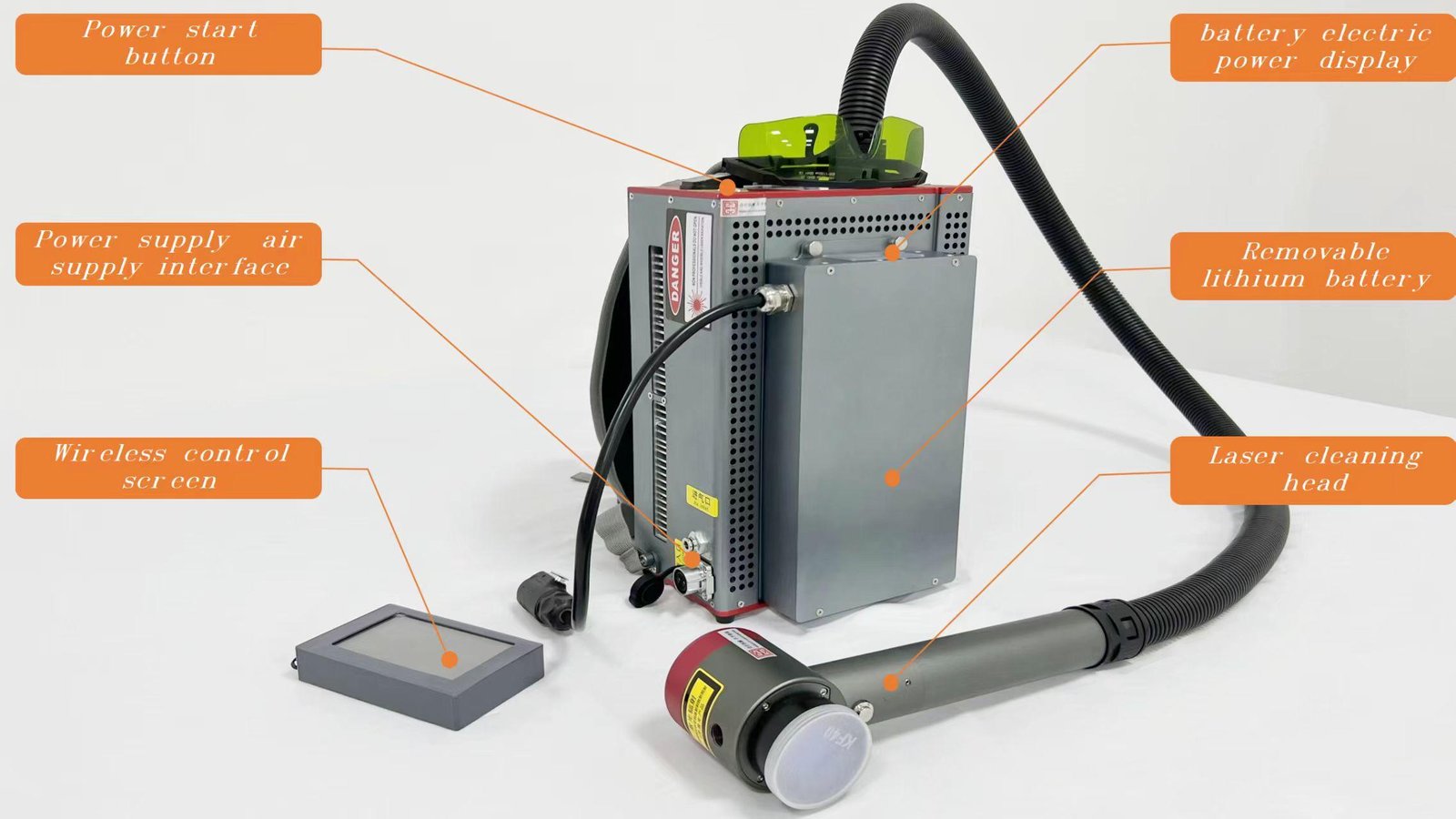

Machine Configurations:

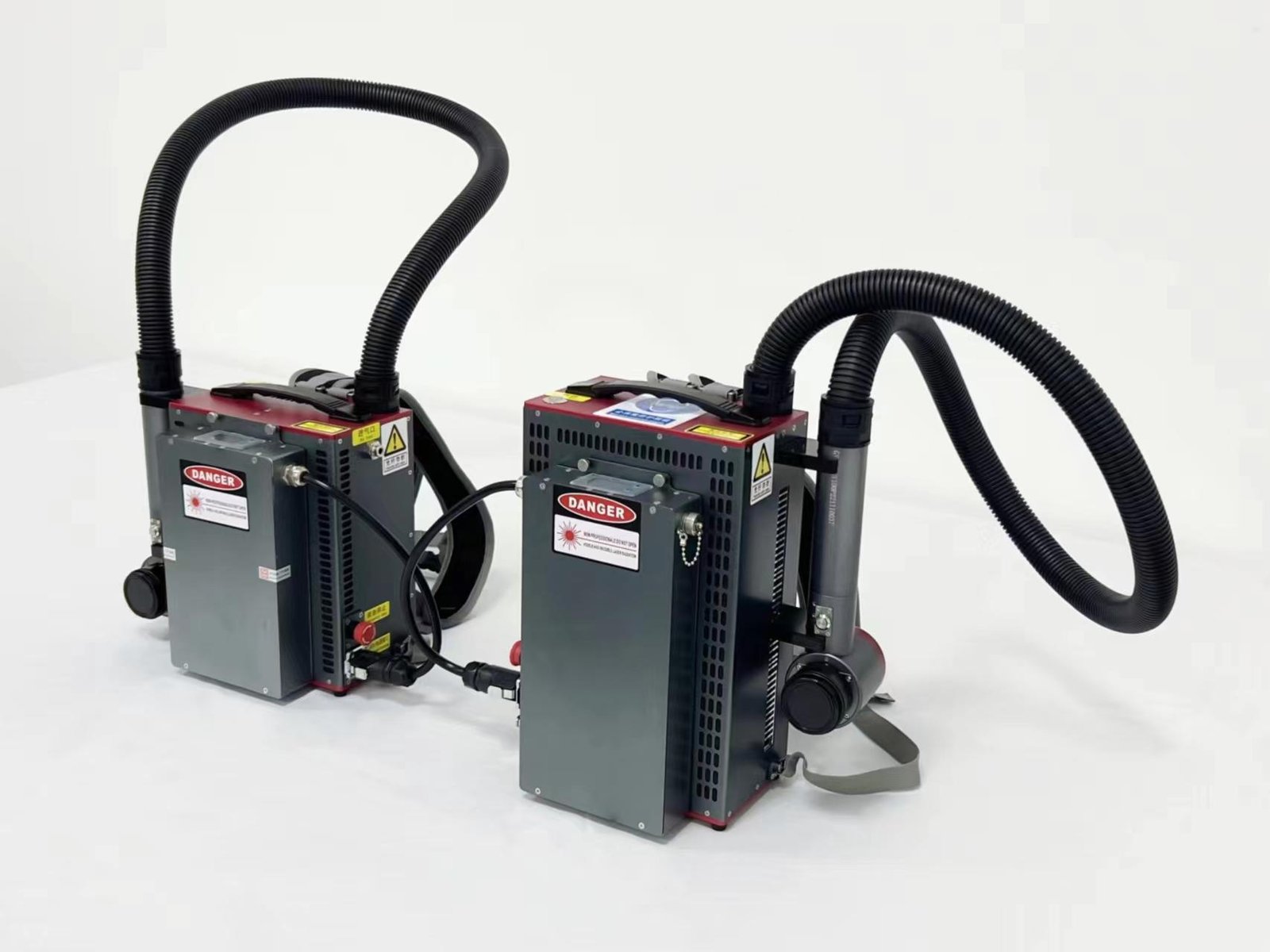

100W Backpack Pulsed Fiber Laser Cleaning Machine
100W Backpack Pulsed Fiber Laser Cleaning Machine
100W Backpack Pulsed Fiber Laser Cleaning Machine
100W Backpack Pulsed Fiber Laser Cleaning Machine
100W Backpack Pulsed Fiber Laser Cleaning Machine
100W Backpack Pulsed Fiber Laser Cleaning Machine
100W Backpack Pulsed Fiber Laser Cleaning Machine
100W Backpack Pulsed Fiber Laser Cleaning Machine
100W Backpack Pulsed Fiber Laser Cleaning Machine

Machine Parameters:

Operating environment

Content

CS-FLC100SC

Supply voltage

Standard AC220V±10%, 50/60Hz power adapter (output

DC48V)

Optional single battery, 100W continuous work 80-90min

Power consumption

<600W

Working environment temperature

5℃~40℃

Working environment humidity

≤80%

Optical parameters

Average laser power

≥ 100W

Power instability

<5%

Laser Working Mode

Pulse

Pulse width

150- 190ns

Maximum monopulse

energy

1.7mJ

Power regulation range (%)

10- 100( Gradient Adjustable)

Repeat frequency  (kHz)

20-200  (Gradient Adjustable )

Fiber length

1.5m

Cooling mode

Air cooling

Cleaning Head Parameters

Scan range (length * width)

0mm~100 mm, continuously adjustable;

Biaxial supporting 8 scanning modes

Scanning speed

Max 10 m/s

Field mirror focal length

(mm)

160mm  ( Optional 210mm/254mm/330mm/420mm)

Depth of focus

About 5 mm

Mechanical parameters

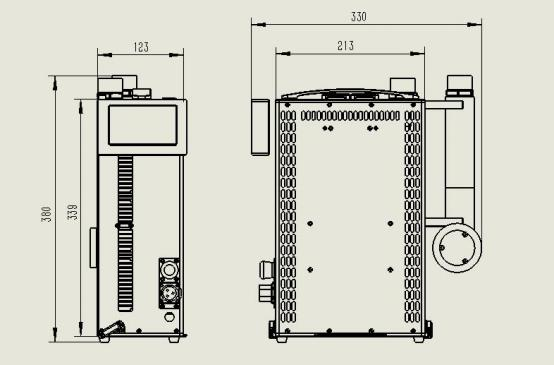

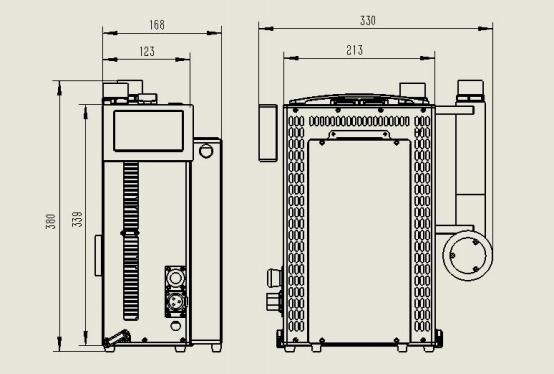

Machine size  (Length, width and height)

About 213mm*123mm*339mm  (Do not contain batteries)

About 213mm*168mm*339mm  (Contain the battery)

Size after packing  (Length, width and height)

About 600mm*400mm*360mm  (Do not contain batteries)

About 600mm*400mm*360mm  (Contain the battery)

Machine Weight

About 8.5 Kg  (Do not contain batteries)

About 12 Kg  (Contain the battery)

Weight after packing

About 15.5 Kg  (Do not contain batteries)

About 19 Kg  (Contain the battery)

Cleaning head weight

<0.75Kg

Mode of operation

Handheld/automated

Sample Display:

Machine Application:

Handheld laser cleaning machine uses high-frequency and high-energy laser pulses to irradiate the surface of the workpiece, so that the surface oil, rust or coating evaporates or peels instantly, and effectively removes thesurface attachment or surface coating of the cleaning object at a high speed, so as to achieve the cleaning of the object. It is characterized by no damage to the part matrix, no consumables, energy saving and environmental protection.



fiber laser cleaning machine for rust oil paint

Video Tutorials & Instructional Video:

How to Play Order:

  1. Will you please inform us the below information?

What material will you clean? Rust, paint, oil?

  1. We would like to recommend you suitable laser cleaning power 200w 300w 500w accordingly and offer you our best price.
  2. Will you ship machine by sea, by air? So, please tell us your nearest sea por, air port. We would like to check freight fee for you.
  3. After you confirm machine model, power, price, freight fee, then please inform us your consignee information ( company name, address, contact, phone number ) we will make Proforma Invoicefor you to play order.
  4. You can remit the payment according to Proforma Invoice.
  5. Machine will be ready 10-12 working days after your payment.
  6. We will share with you machine photos and videos since machine is ready.
  7. After confiming all is fine, we will book shipment.
  8. We will share with you bill of lading, commercial invoice, packing list after shipment.
  9. You can operate laser welding machine according to user video and user manual.
  10. If any questions about using, we would like to guide you online.
