CS1625 130W Auto Feeding Co2 Laser Cutting Machine for Cloth Leather Fabric Textile

CS1625 CO2 LASER CUTTING MACHINE WITH AUTO FEEDING DEVICE

Avaliação:
  • 1) 1600X2500mm working area
  • 2) controlador de trabalho rd com usb
  • 3) auto feeding table
  • 4) 130w laser tube
  • 5) ponteiro vermelho duplo
  • 6) exhaust fan, air pump, water chiller




Característica principal:

This series auto feeding laser fabric cutting machine with double laser heads, it suit for cutting fabric, clothing, leather, garment, etc.

The laser fabric cutting machine can also used to cut Car pillow, cushion, mat, Car seat cover, steering wheel cover, dash board cover, automotive sunshade, leather seat cover and other car interior products.

  • 1. Specially designed for fabric cutting, the top rated working size 1626. 2030 2050 2060 also could be made.
  • 2. Single head or dual laser heads for choose, double head more efficiency compared with one head.
  • 3. Conveyor moving working table with auto feeding device realizing continuous feeding and cutting.
  • 4. The special software for automatic nesting,enhancing material utilization.
  • 5. Offline and online operation modes for your selection

Configurações da máquina:

CS1625 1600*2500mm Fabric Textile Double Heads 130W CO2 Laser Cutting Machine with Auto feeding

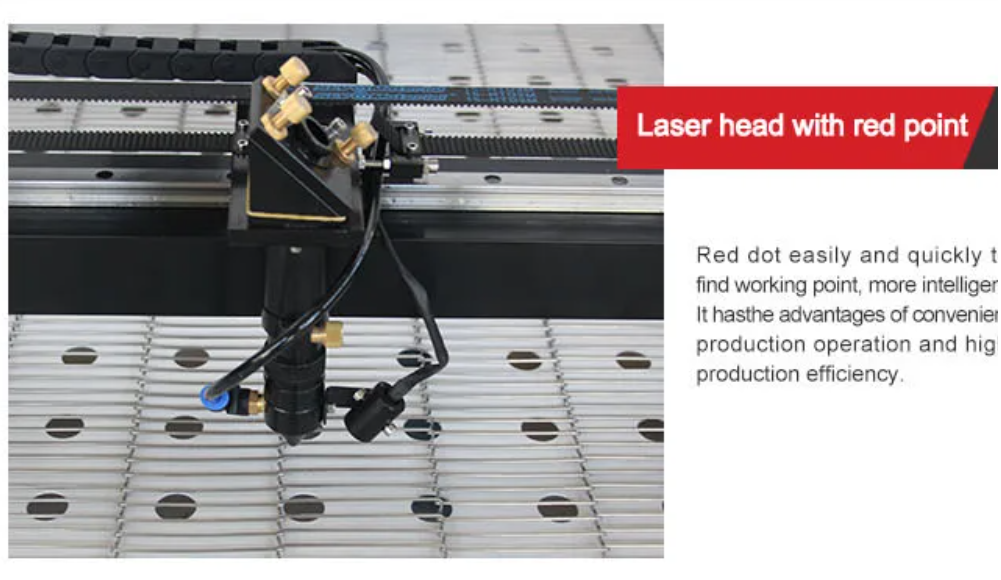

laser head
CS1625 1600*2500mm Fabric Textile Double Heads 130W CO2 Laser Cutting Machine with Auto feeding

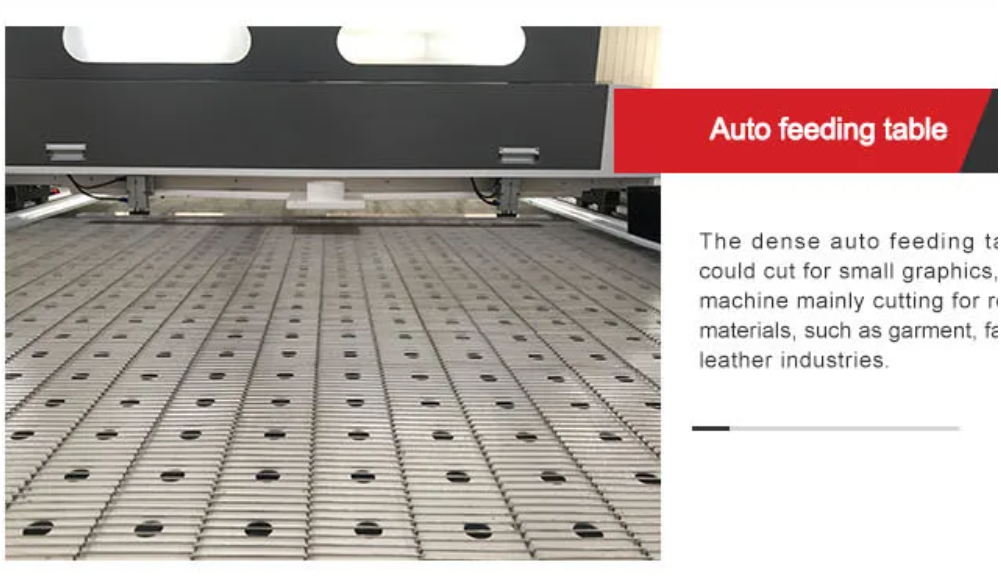

auto feeding table
CS1625 1600*2500mm Fabric Textile Double Heads 130W CO2 Laser Cutting Machine with Auto feeding

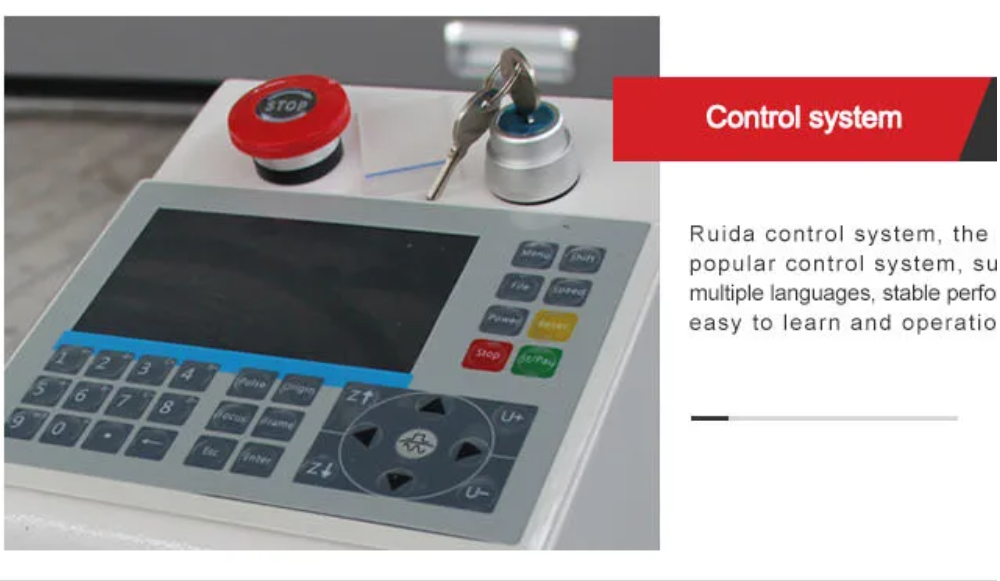

RD work controller
CS1625 1600*2500mm Fabric Textile Double Heads 130W CO2 Laser Cutting Machine with Auto feeding

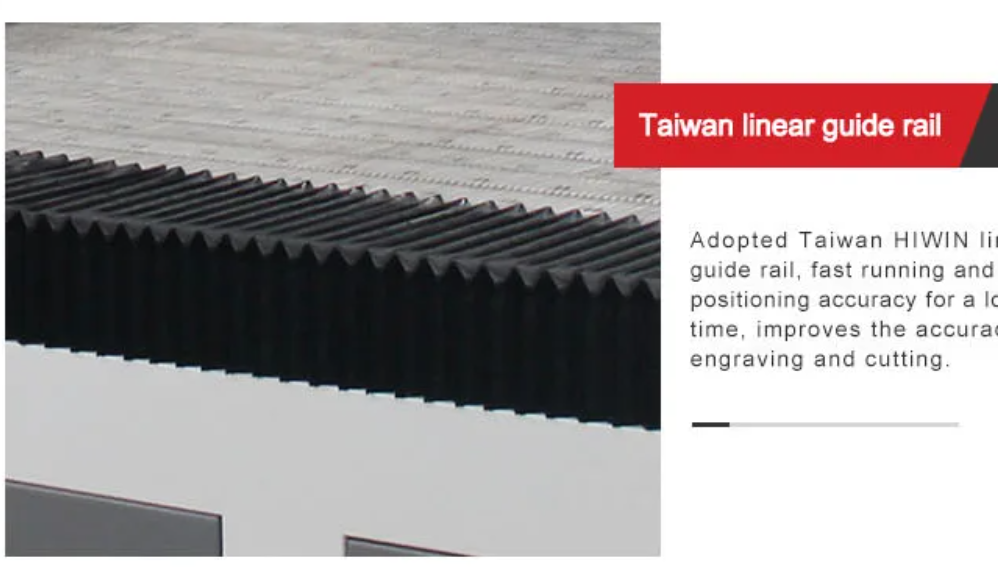

square linear rail
CS1625 1600*2500mm Fabric Textile Double Heads 130W CO2 Laser Cutting Machine with Auto feeding

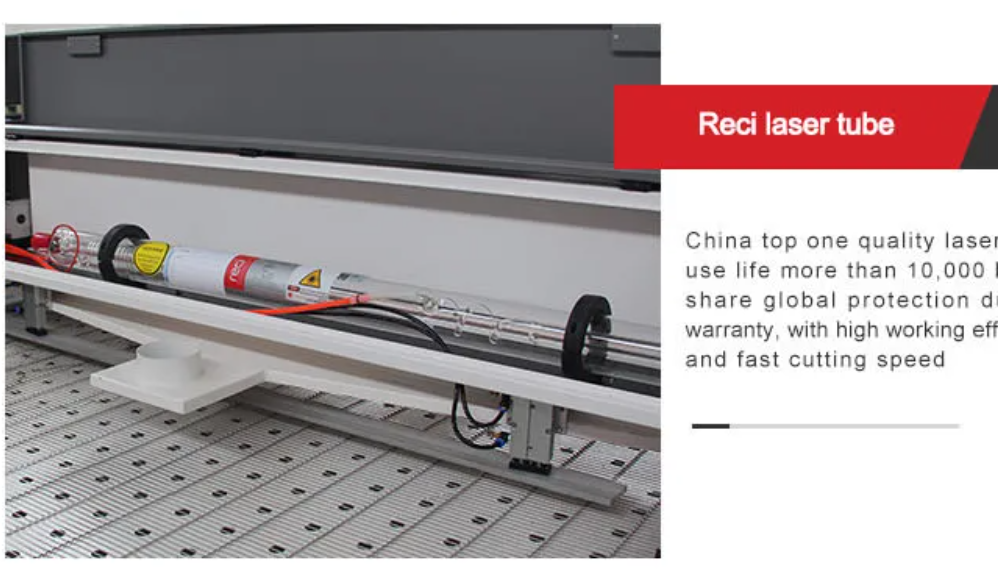

co2 laser glass tube
CS1625 1600*2500mm Fabric Textile Double Heads 130W CO2 Laser Cutting Machine with Auto feeding

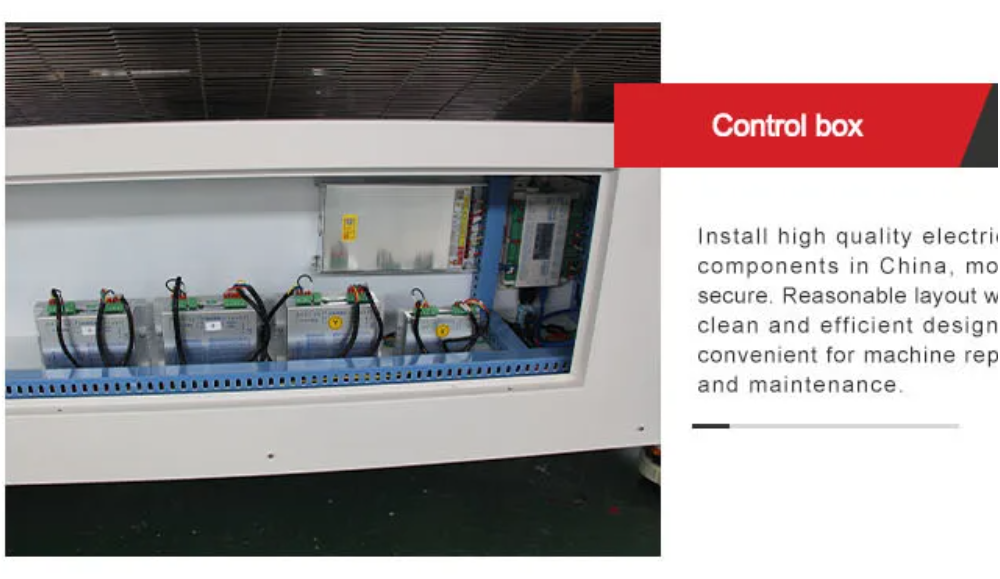

control box

Parâmetros da máquina:

Modelo

CS1625/ CS2030/ CS2050

cutting area

1600x2500mm/ 2000*3000mm/ 2000*5000mm

Potência do laser

80W/100W/130W

Laser type

Tubo laser de CO2

Engraving   speed

0-60000mm/min

cutting speed

0-24000mm/min

Resetting positioning accuracy

0,01 mm

Fonte de energia

220V/50HZ 110V/60HZ

Operating temperature

0 – 45 °C

Operating humidity

5-95%

Min. shaping character

English 1.0x 1.0mm

Graphic format supported

PLT,AI,DXF,BMP,DST

Software supported

CorelDraw, PhotoShop, AutoCAD

Driving system

Stepper motors

Cooling mode

Water-cooling and protection system

Recommended Spare Parts

Laser Tube and Lens

CS

Video Tutorials & Instructional Video:

Amostra de exibição:

Materiais de Aplicação:

cutting for fabric, leather, garment, embroidery, toy, handbag, car mat, foam, etc

CS1625 1600*2500mm Fabric Textile Double Heads 130W CO2 Laser Cutting Machine with Auto feeding
