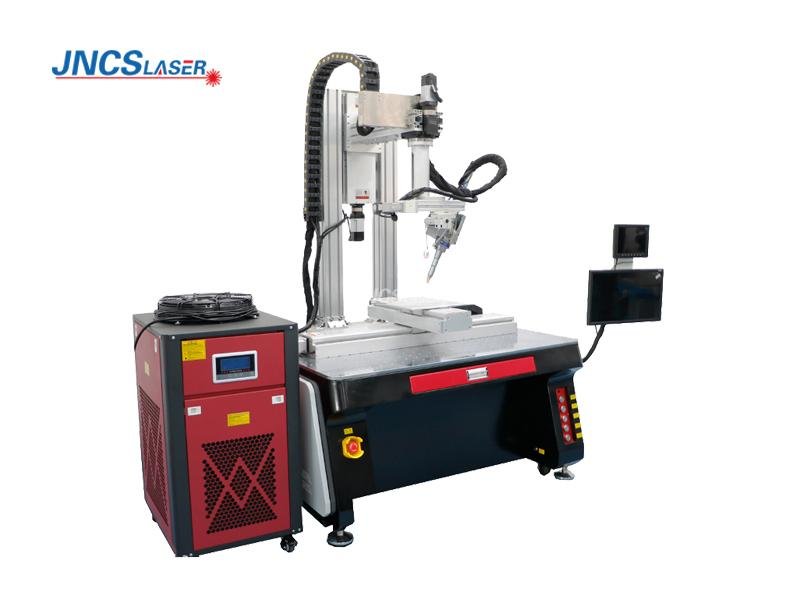

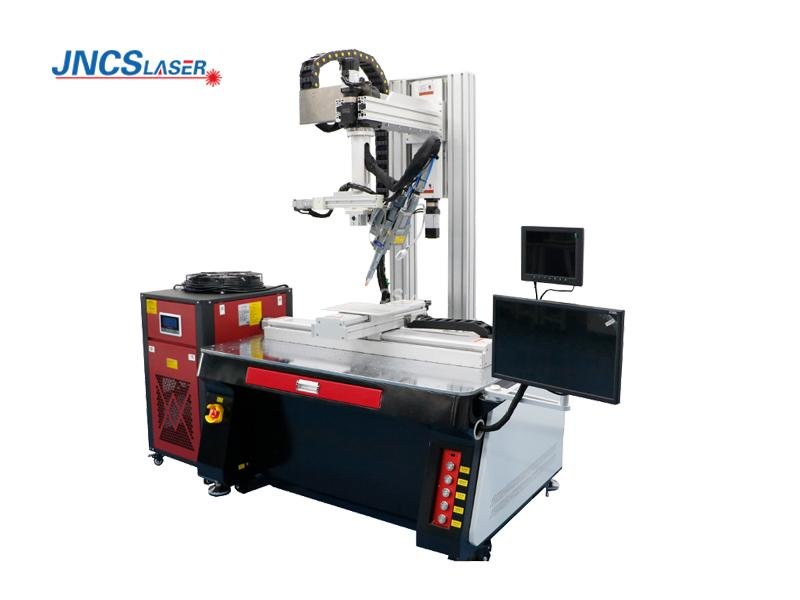

5-Axis Automatic Platform Fiber Laser Welding Machine with 360-Degree Movement Welding Head

The 5-Axis Automatic Platform Fiber Laser Welding Machine with a 360-degree movement welding head is a cutting-edge industrial solution designed for high-precision and versatile welding applications, especially in industries requiring complex, multi-dimensional welding. It is suitable for a wide range of materials and offers high flexibility for a variety of welding projects.

Key Features

5-Axis Automatic Platform:

1. The machine provides movement in X, Y, Z axes, and rotational motion in the A and B axes. This makes it ideal for handling intricate and multi-dimensional welding tasks.
2. X and Y axesenable lateral and vertical movement.
3. Z axisadjusts the height of the workpiece or focal length.
4. A and B axesprovide rotation and tilt, essential for welding curved surfaces and components.

360-Degree Rotating Welding Head:

1. The rotating welding head can move 360 degrees, ensuring full access to weld around tubes, pipes, or other cylindrical components without repositioning the workpiece.
2. This feature allows for smooth and continuous welding on complex geometries or components with multiple angles.

High-Power Fiber Laser Source:

1. Equipped with fiber laser technology, the machine delivers focused, high-quality beams that penetrate deeper and faster than traditional methods.
2. Provides a clean, stable weldwith minimal heat-affected zones, ideal for metals like stainless steel, carbon steel, aluminum, and alloys.

Automatic Operation:

1. Advanced automation allows for precise, repeatable weldingwithout manual intervention, improving production speed and consistency.
2. The system is designed to handle large volumes of workwith minimal human error, ideal for industrial production lines.

Precision and Customization:

1. High-precision CNC control for welding path programming ensures a high level of repeatability.
2. Customizable settings for different materials, thicknesses, and joint types, which makes it adaptable to a wide variety of welding needs.

Integrated Vision System (Optional):

1. Some models come with vision-based alignment, which assists in auto-detection and real-time adjustment for the optimal welding position.
2. Particularly beneficial when dealing with misaligned or irregularly shaped parts.

Cooling System:

1. An efficient cooling system is integrated to prevent overheating of the laser source and welding head, ensuring stable operation during long hours of continuous use.

Applications

Tube and Pipe Welding:

1. The machine excels at welding pipes, tubes, and other cylindrical structures, often used in industries like automotive, aerospace, and construction.
2. Ideal for creating exhaust systems, fuel lines, and structural pipes.

Automotive Industry:

1. Perfect for welding components like car chassis, fuel tanks, and exhaust pipes.
2. The 360-degree rotating head allows for precise welding in confined spaces or around tight corners.

Aerospace:

1. Used for welding aircraft componentssuch as turbine blades, fuel lines, and other delicate aerospace materials.
2. Requires high precision and minimal heat distortion, both of which the 5-axis system can deliver.

Medical Equipment:

1. Welding medical-grade instruments, such as surgical tools, implants, and medical devices.
2. Precision welding with minimal heat affects the overall functionality and sterilization standards of medical devices.

Metalworking and Industrial Equipment:

1. Ideal for welding machinery parts, robotic arms, and industrial framesthat require high precision and robustness.
2. Often used in industries with high demand for structural integrity, such as oil & gas, heavy machinery, and construction.

Tool and Die Repair:

1. Used for mold and die repairas it allows for the precise addition of material without damaging the existing part.

Custom Metal Fabrication:

1. Perfect for fabricators requiring customized metal partsor intricate designs for products such as furniture, decorative items, and specialty metal parts.
