Small 3D Dynamic Focusing UV Laser Marking Machine for Glass Cup engraving

3D Dynamic Focusing 5W 10W UV Laser Marking Machine

Rating:

High precision UV laser marking machine adopts Ultraviolet laser which is mainly used in ultra-fine marking for plastics, including PC (polycarbonate), PP (polypropylene), PE (polyethylene), PA, ABS, PMMA, silicon, ceramics and crystal glass, now the UV laser engraving machine for sale at affordable price.

UV laser marking machine is also called UV laser engraving machine, which has high beam quality and small spot, and the processing of heat affected area is small, which can be used for ultra-fine marking, special material marking. UV laser marking machine is suitable for processing more extensive materials, such as plastics, including PP (polypropylene), PC (polycarbonate), PE (polyethylene), ABS, PA, PMMA, silicon, glass and ceramics.

MORE

Main Feature:

  1. Perfect marking quality: 355nm output wavelength to reduce the thermal impact on the workpiece, high-precision galvanometer marking head can ensure fine and repeatable marking, high-precision fine spot to ensure the perfect marking results, The marking process is non-contact, the marking effect is permanent.
  2. UV laser engraver machine has a large marking range.
  3. Heat affected area is very small, there will be no thermal effect, the material is not deformed and charred.
  4. High speed and high efficiency.
  5. Machine performance is stable, small size, low power consumption.
  6. The UV laser engraving machine is suitable for heat radiation reaction of large materials processing, if it’s used for the production line with the automatic loading and unloading, it can realize automatic access to materials. It’s suitable for the vast majority of metal and non-metallic materials on the marking industry.
3D UV Laser Marking Machine is used for marking curved surface or irregualr  material, customer will use 3D uv laser marking machine for marking glass bottle.

Machine Configurations:

UV Laser Source

Brand Name: RFH laser High quality Precise position

Controller card3D Controller card

High Speed, high precision Software: Markingmate

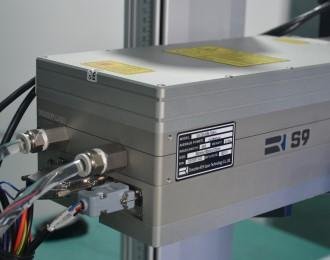

3D Dynamic focusing Galvo Scanner

High Speed, high precision Brand Name: sino galvo

Tool Box

Foot Switch Protect Goggles U disk with software Spanner Keys Screws Ruler Power Cable

MM 3D softwareGalvo Scanner

It is 3D software. Marking Mate 3D

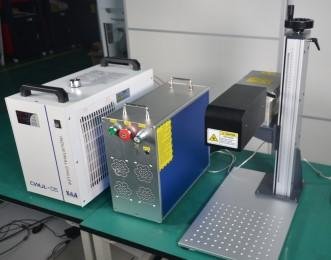

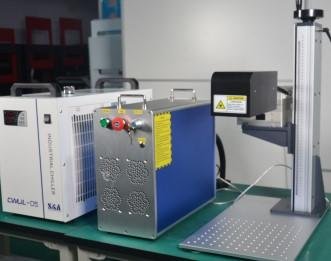

UV Laser Marking Machine

Optional power: 5w 10w

UV Laser Marking Machine

Optional power: 3w 5w 10w

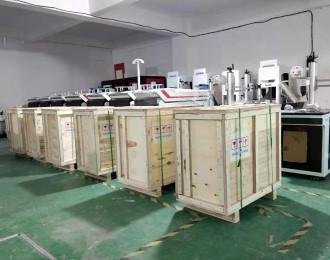

Plywood Package

1. Plastic Film 2. Foam 3. Plywood Package

Machine Optional Parts:

Flat rotate table for marking pen

It can be put 24 pcs pens.

rotary clamp with clip and clamp

Diameter: 80mm

Rotary clamp

Diameter: 80mm

Smoke Purifier

Smoke purifier is mainly used for the purification of smoke and dust produced in marking, cutting, and other processes as well as the recovery of rare metals and precious materials

Machine Parameters:

Model

CS-UV3W      CS-UV5W       CS-UV10W

Wave length of laser

355nm

Laser output power

3W         5W      10W

Marking speed

400 characters per second

Beam quality

<1.1

Repeated accuracy

±0.001mm

Working area

110*110mm 150*150mm 175*175mm 200*200mm optional

Machine power

800W

Minimal character

0.1mm

Cooling ways

Force-air Cooling

Power supply

220V/ 50Hz/2kVA

Minimum line width

0.015mm

Support format

PLT, BMP, DXF, JPG, TIF, AI etc

Cooling system

Air cooling

Package size

132CM L X76CM W X158CM H

Gross weight

240KG

Video Tutorials & Instructional Video:

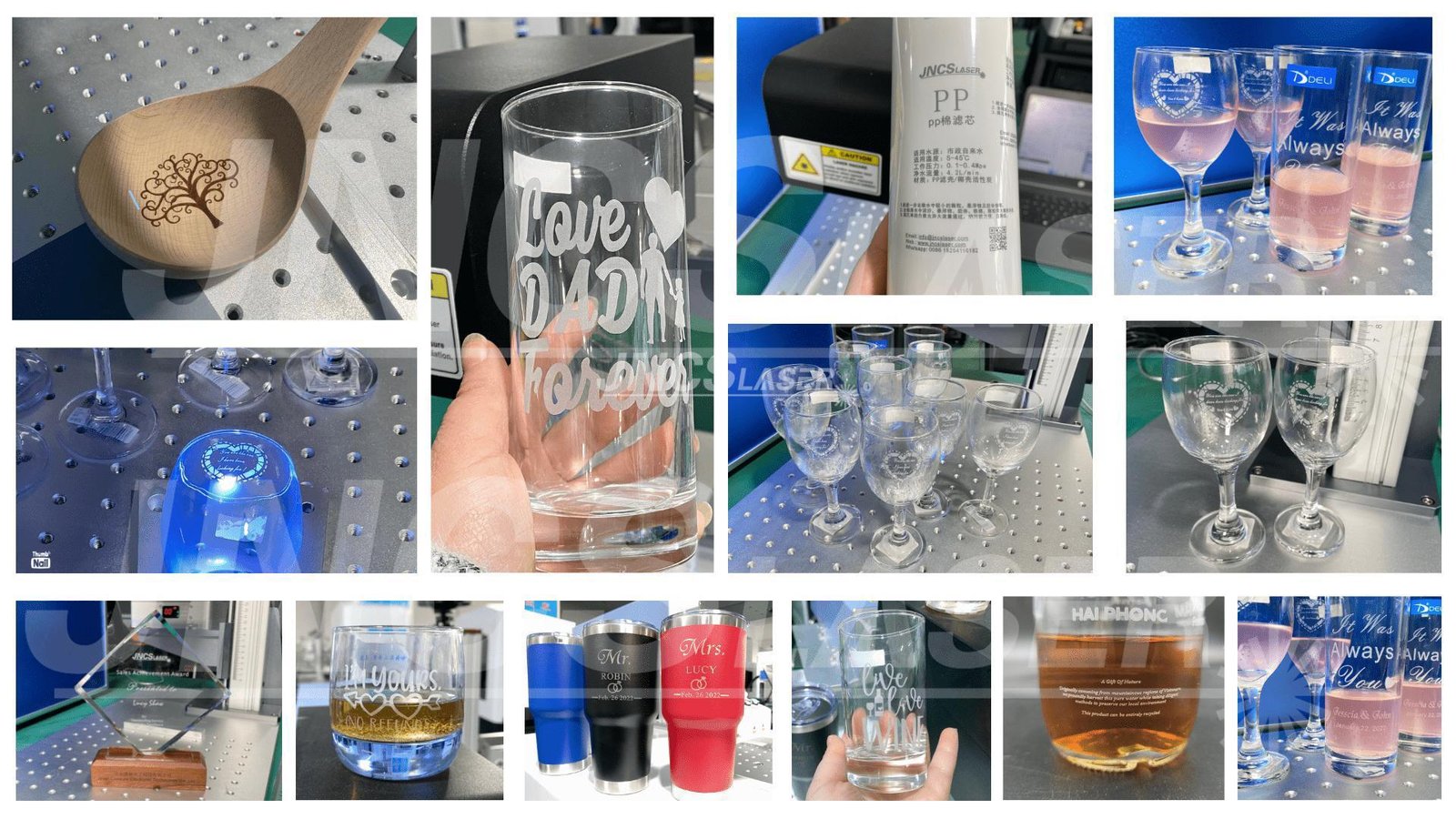

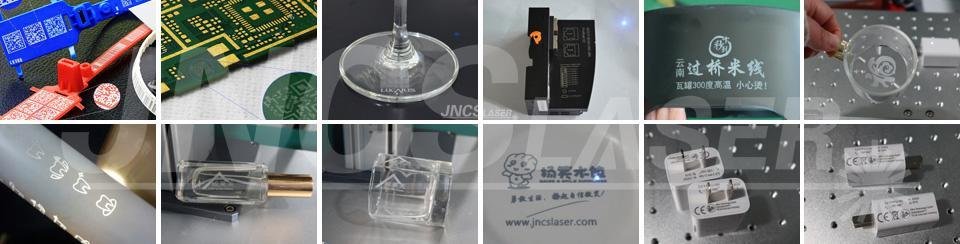

Sample Display:

 UV laser marking machine is suitable for processing more extensive materials, such as plastics, including PP (polypropylene), PC (polycarbonate), PE (polyethylene), ABS, PA, PMMA, silicon, glass and ceramics.
3D UV Laser Marking Machine is used for marking curved surface or irregualr  material, customer will use 3D uv laser marking machine for marking glass bottle.

How to Play Order:

  1. Will you please inform us the below information?
  • What material will you mark?
  • What is your maximum marking area?
  1. We would like to recommend you suitable laser marking machine accordingly and offer you our best price.
  2. Will you ship machine by sea, by air or by courier? So, please tell us your nearest sea por, air port, or detailed address. We would like to check freight fee for you.
  3. After you confirm machine model, power, price, freight fee, then please inform us your Consignee Information ( company name, address, contact, phone number ) we will make Proforma Invoice for you to play order.
  4. You can remit the payment according to Proforma Invoice.
  5. Machine will be ready 5-7 working days after your payment.
  6. We will share with you machine photos and videos since machine is ready.
  7. After confiming all is fine, we will book shipment.
  8. We will share with you bill of lading, commercial invoice, packing list after shipment.
  9. You can operate laser marking machine according to user video and user manual.
  10. If any questions about using, we would like to guide you online.
