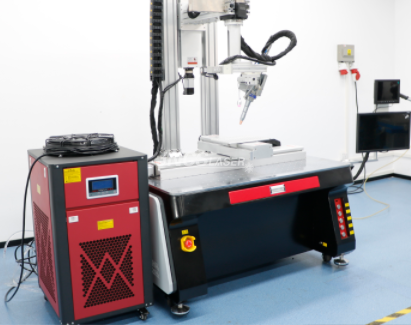

5 axis automatic platform fiber laser welding machine with side to side swing welding head

Máquina de soldadura láser de fibra continua automática

Max. Fiber Laser source
CatDSP Motion Control System
X 500mm Y300mm Z 300mm traveling size

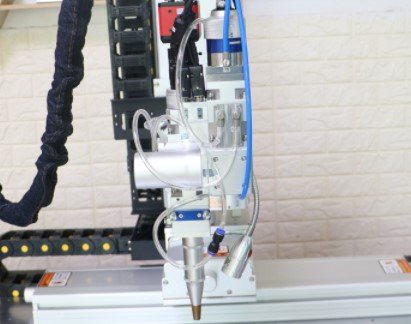

double wobble welding gun
HCFA servo motor
Hanli Industrial water chiller
CCD system Industrial Computer

Support: 4 axis 5 axis

Caracteristica principal:

Laser welding is a new type of welding method and one of the important aspects of the application of laser material processing technology. Laser welding is to radiate a laser beam to the processed object. After heating the surface of the workpiece, the surface heat diffuses into the interior through heat conduction. By controlling the parameters such as the width, energy, peak power and repetition frequency of the laser pulse, the workpiece is melted to form a specific molten pool. , After cooling to form a weld. The welding process is of thermal conductivity type, and the advantages are large aspect ratio, fast welding speed, small thermal influence range, and small workpiece deformation.
Its main technical characteristics:
The control system is a professional four-axis control system tailored for laser welding. It has powerful PC control and is easy to program,debug and maintain. It can complete automatic or semi-automatic spot welding, butt welding, stitch welding, and sealing welding. Welding of plane straight lines, arcs and arbitrary trajectories; the system is simple and reliable to operate, easy to control, simple to operate, easy to learn, easy to understand and easy to use for users;
Equipped with three-axis automatic worktable, super large worktable, platform XY dual-axis electric module, Z-axis adopts power-off brake motor, and can be equipped with rotating shaft when it is time. For special-shaped three-dimensional products, it can realize three-dimensional laser welding, fast speed, long life accuracy high;
Customized automated tooling fixtures can be combined with assembly lines,photoelectric sensors, pneumatic fixtures and other combinations for fully automatic processing to achieve mass production of products.
It can perform time splitting or energy splitting, suitable for applications in different processing occasions, multi-station processing applications, and can be widely used in laser welding such as spot welding, continuous welding and flexible processing industries.
Support multi-channel optical fiber output to improve welding efficiency, save equipment cost, and reduce equipment occupation space. You can choose multiple optical fiber to output light in time, or to output light at the same time according to the needs, or any combination of the two, so it can be carried out. Multi-beam simultaneous processing and multi-station processing provide conditions for more precise welding;
After the laser passes through the optical fiber, the spot becomes more uniform and stable, which improves the quality of the weld. After the laser beam is focused, a small spot can be obtained, the power density is high, and it can be accurately positioned. It can be applied to the assembly welding of micro and small workpieces in mass automated production.

Configuraciones de la máquina:

Parámetros de la máquina:

Nombre de la máquina	Máquina automática de soldadura láser de fibra
Potencia láser	1.5KW 2KW 3KW
Laser type	fiber-optic laser
Longitud de onda láser	1080nm ±5nm
Sport mode	Continuous/modulation
Adjust frequency	1000HZ
Focus range	150-250mm Optional
Fiber core diameter	50-100um
Fuente láser	Raycus / JPT / IPG/Max
Spectroscopic method	Precision energy spectroscopy or high-speed time spectroscopy
Longitud de fibra	10M
Modo de enfriamiento	Refrigeración por agua
Cooling power of chiller	1.5P
Tensión de trabajo	1kw 1.5kw 2kw AC220V / 50Hz / 60HZ 3kw AC380V / 50Hz / 60HZ
Tamaño del paquete	Machine：139139190cm Chiller： 8065117cm
Peso bruto	Machine:419kg Chiller: 98kG
